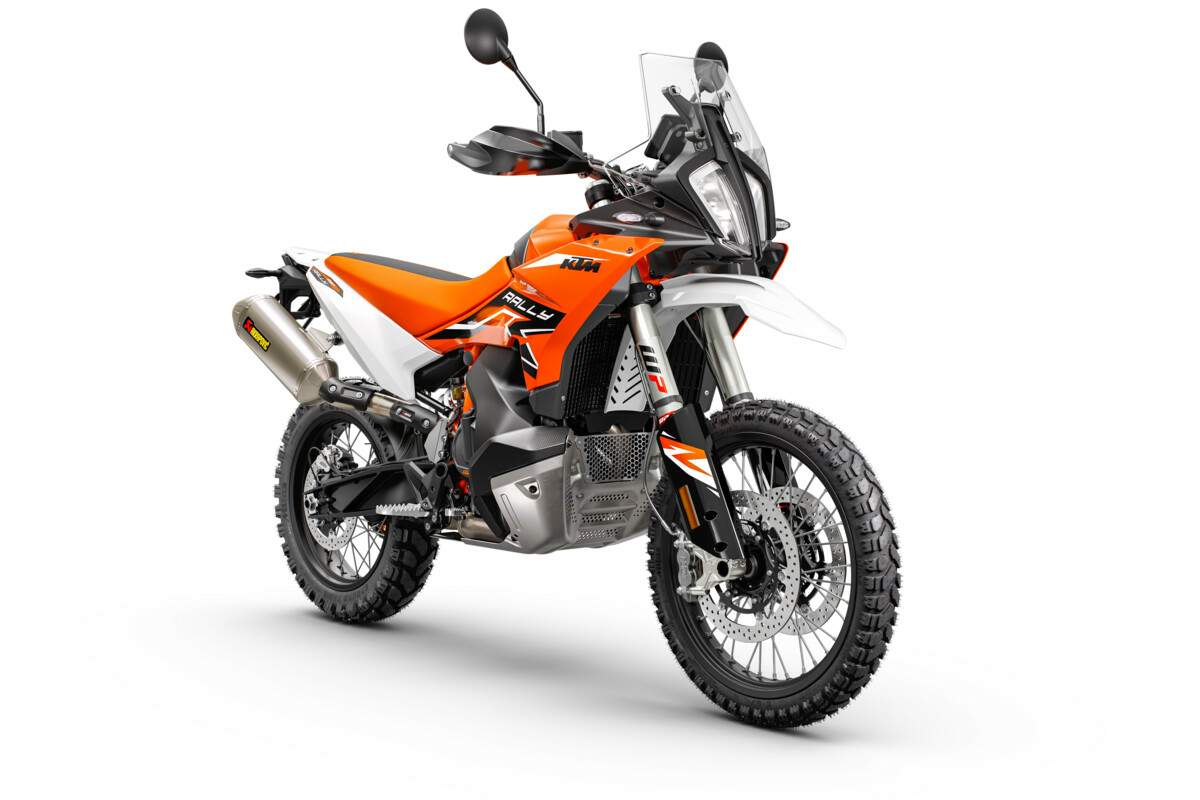

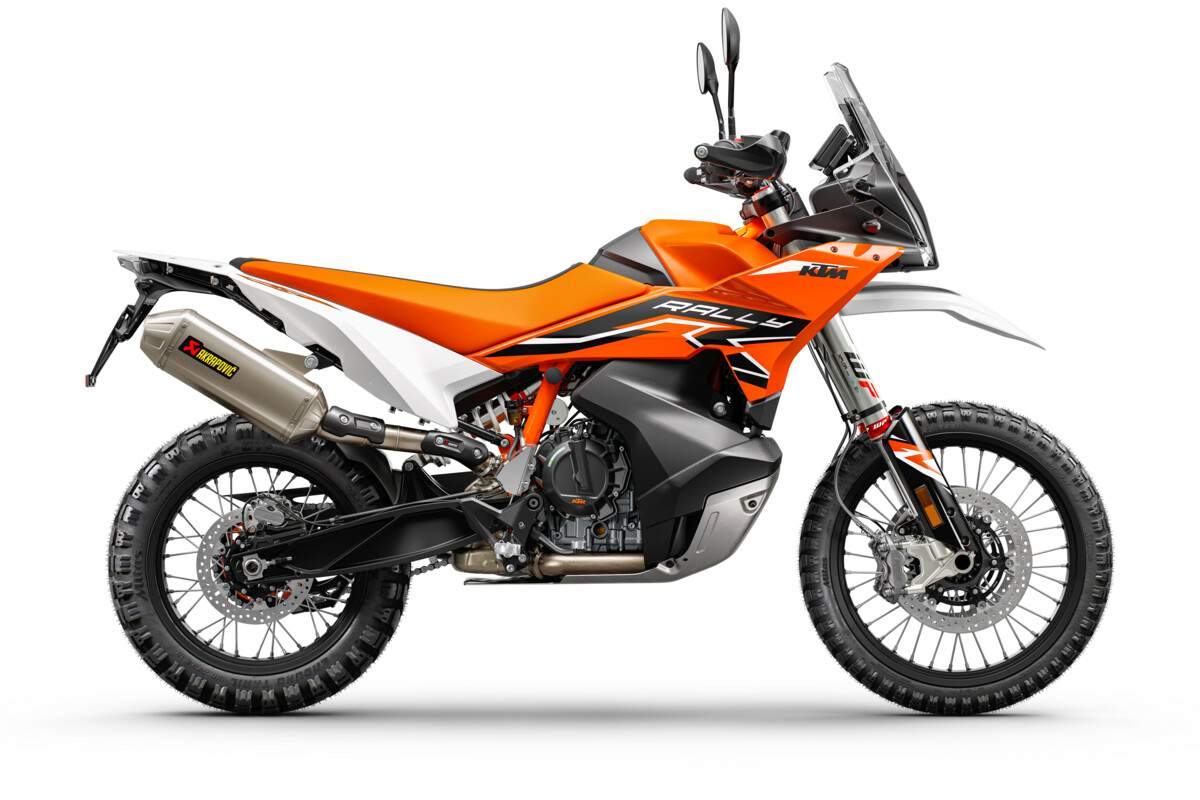

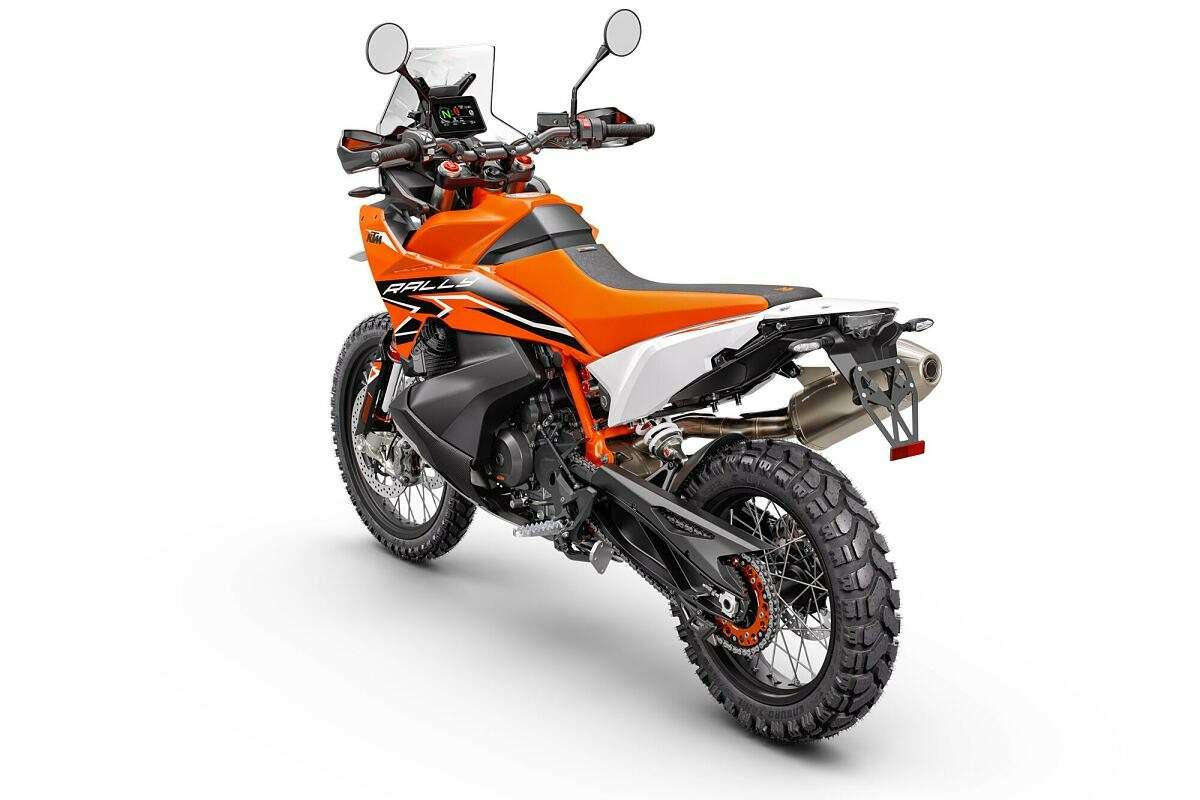

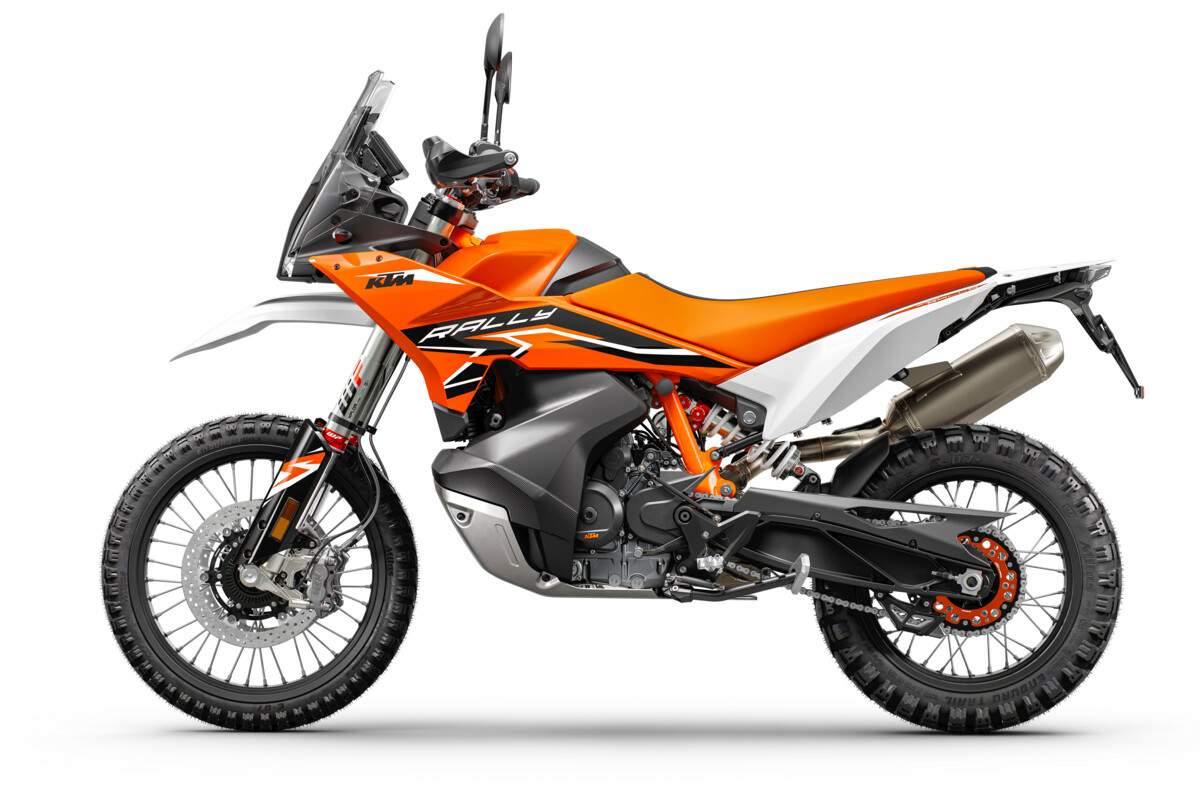

KTM 890 Adventure R Rally (2024) technical specifications

KTM 890 Adventure R Rally is produced in 2024. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 889 cc / 54.3 cu-in , produces power 77kW / 103 hp @ 8000 rpm and 100 Nm / 73.7 lb-ft @ 6500 rpm. KTM 890 Adventure R Rally wet weight is 214.5 kg / 473 lb. KTM 890 Adventure R Rally has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	890 Adventure R Rally
Years:	2024
Production:	700 units
Engine:	Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Capacity:	889 cc / 54.3 cu-in
Bore x Stroke:	90.7 x 68.8 mm
Cooling System:	Liquid cooled with water/oil heat exchanger
Compression Ratio:	13.5:1
Exhaust:	Akrapovič
Emission control system:	Euro 5
Lubrication:	Pressure lubrication with 2 oil pumps
Induction:	DKK Dell?Orto with 46mm throttle body
Engine Management:	Bosch EMS with RBW
Starting:	Electric
Max Power:	77kW / 103 hp @ 8000 rpm
Max Torque:	100 Nm / 73.7 lb-ft @ 6500 rpm
Clutch:	PASC antihopping clutch, mechanically operated
Transmission:	6 Speed (quickshifter optional)
Final Drive:	Chain 520 X-Ring
Frame:	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front Suspension:	48mm Fully adjustable WP Xplor Pro 7548 inverted forks
Front Wheel Travel:	270 mm / 10.6 in
Rear Suspension:	Linkage-free spring-preload adjustable WP Xplor Pro 6746 piggyback shock
Rear Wheel Travel:	270 mm / 10.6 in
Front Brakes:	2x 320mm discs with 4-piston radially mounted calipers
Rear Brakes:	Single 260mm disc, 2 piston floating caliper
ABS:	Bosch 9.3 MP incl. Cornering-ABS and offroad mode, disengageable
Wheels:	Wire-spoked
Front Wheel:	2.50 x 21
Rear Wheel:	4.50 x 18
Front Tyre:	90/90 -21
Rear Tyre:	150/70 -18
Steering Head Angle:	63.8?
Rake:
Wheelbase:	1534 mm / 60.4 in
Seat Height:	910 mm / 35.8 in
Ground Clearance:	303 mm / 11.9in
Wet Weight:	214.5 kg / 473 lb
Fuel Capacity:	20 Litres / 5.3 US gal
