KTM 890 Adventure (2023) technical specifications

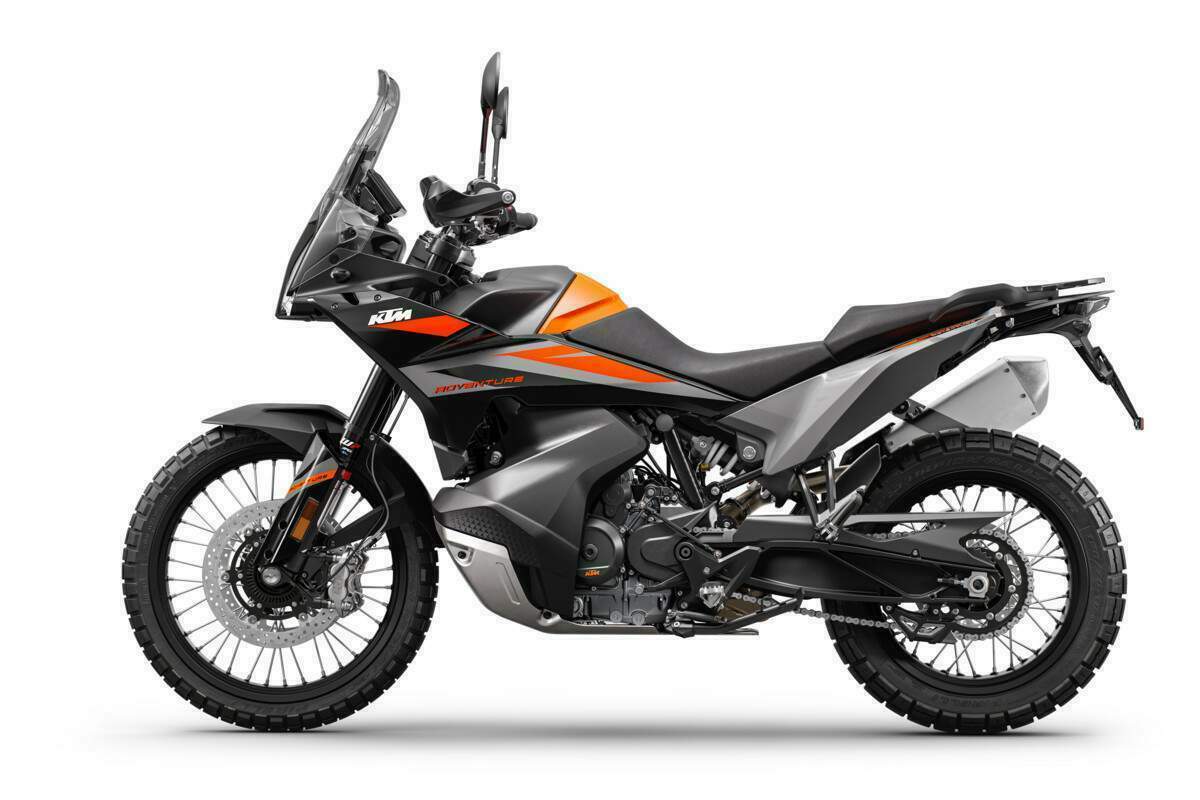

KTM 890 Adventure technical specifications

KTM 890 Adventure is produced in 2023. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 889 cc / 54.3 cu-in , produces power 78.3 kW / 105 hp @ 8000 rpm and 100 Nm / 73.7 lb-ft @ 6500 rpm. KTM 890 Adventure wet weight is 210 kg / 463 lbs. KTM 890 Adventure has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: 890 Adventure
Years: 2023
Engine: Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Capacity: 889 cc / 54.3 cu-in
Bore x Stroke: 90.7 x 68.8 mm
Cooling System: Liquid cooled with water/oil heat exchanger
Compression Ratio: 13.5:1
Exhaust: Stainless-steel
Emission control system: Euro 5
Lubrication: Pressure lubrication with 2 oil pumps
Induction: DKK Dell’Orto with 46mm throttle body
Engine Management: Bosch EMS with RBW
Starting: Electric
Max Power: 78.3 kW / 105 hp @ 8000 rpm
Max Torque: 100 Nm / 73.7 lb-ft @ 6500 rpm
Clutch: PASC antihopping clutch, mechanically operated
Transmission: 6 Speed
Final Drive: Chain 520 X-Ring
Frame: Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front Suspension: 48mm WP APEX 43 forks
Front Wheel Travel: 200 mm / 7.87 in
Rear Suspension: WP APEX - Monoshock
Rear Wheel Travel: 200 mm / 7.87 in
Front Brakes: 2x 320mm discs with 4-piston radially mounted calipers
Rear Brakes: Single 260mm disc 2-piston floating caliper
ABS: Bosch 9.1 MP incl. Cornering-ABS and offroad mode, disengageable
Wheels: Wire-spoked
Front Wheel: 2.50 x 21
Rear Wheel: 4.50 x 18
Front Tyre: 90/90 x 21 Continental Twinduro TKC 80
Rear Tyre: 150/70 x 18 Continental Twinduro TKC 80
Steering Head Angle: 64.1°
Rake: 26.3°
Wheelbase: 1529 mm / 60.2 in
Seat Height: 860 mm / 33.8 in
Ground Clearance: 233 mm / 9.17 in
Wet Weight: 210 kg / 463 lbs
Fuel Capacity: 20 Litres / 5.3 US gal
