KTM 790 Duke (2023) technical specifications

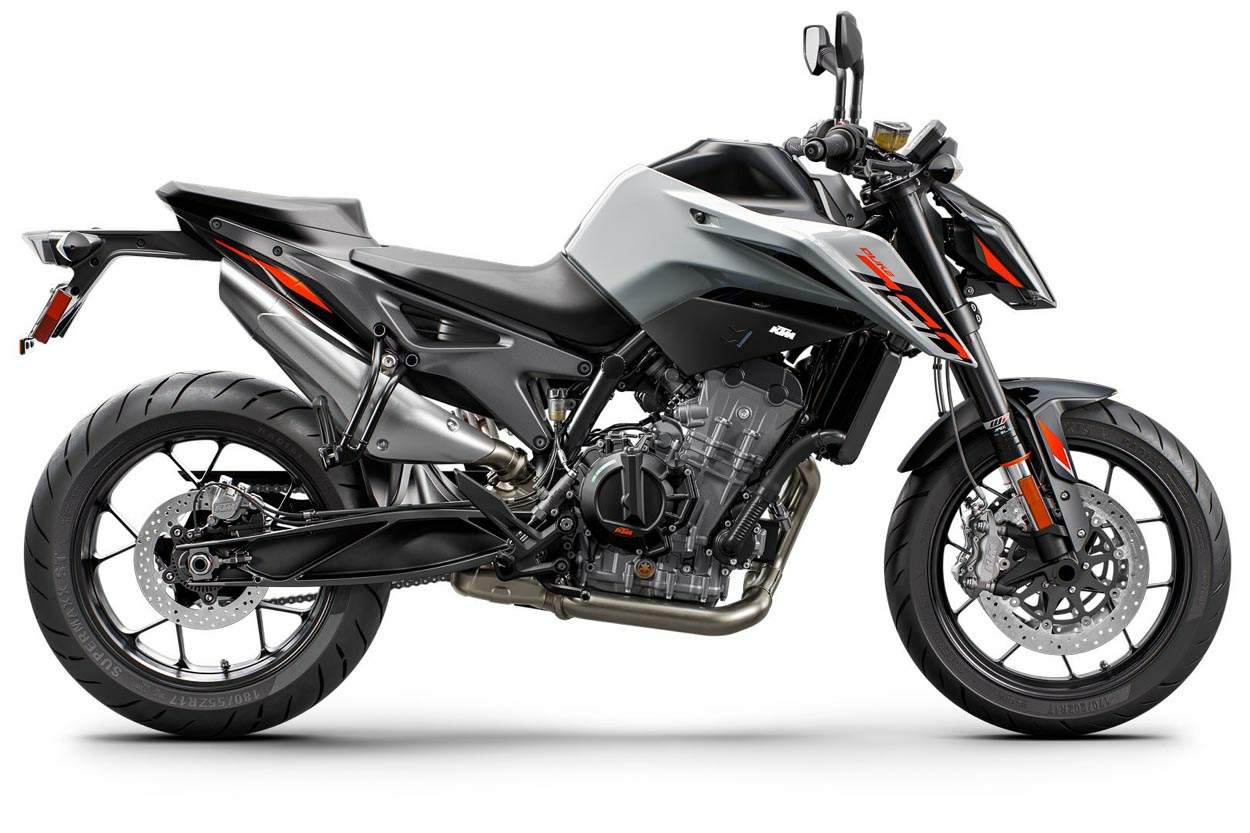

KTM 790 Duke technical specifications

KTM 790 Duke is produced in 2023. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder, displacement 799 cc / 48.7 cu-in , produces power 77 kW / 105 hp @ 9000 rpm and 87 Nm / 63.4 lb-ft @ 8000 rpm. KTM 790 Duke wet weight is 187.7 kg / 414 lbs. KTM 790 Duke has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: 790 Duke
Years: 2023
Engine: Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Capacity: 799 cc / 48.7 cu-in
Bore x Stroke: 88 mm x 65.7 mm
Cooling System: Liquid cooled with water/oil heat exchanger
Compression Ratio: 12.7:1
Exhaust: Stainless steel primary and secondary silencer
Emission: EURO 5
Lubrication: Forced oil lubrication with 2 oil pumps
Induction: DKK Dell’Orto fuel injection with 42mm throttle body
Ignition: Bosch EMS with RBW
Starting: Electric
Max Power: 77 kW / 105 hp @ 9000 rpm
Max Torque: 87 Nm / 63.4 lb-ft @ 8000 rpm
Clutch: PASC antihopping clutch, mechanically operated
Transmission: 6-speed (quickshifter optional)
Final Drive: Chain 520 X-Ring
Primary Drive: 39:75
Secondary Gear Ratio: 16:41
Frame: Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front Suspension: 43mm Non-adjustable inverted WP APEX fork
Front Wheel Travel: 140 mm / 5.5 in
Rear Suspension: Linkage-free, cantilevered spring-preload adjustable WP Apex shock
Rear Wheel Travel: 150 mm / 5.9 in
Front Brakes: 2x 300mm discs, radially mounted 4 piston caliper
Rear Brakes: Single 240mm disc, 2 piston floating caliper
ABS: Bosch 9.1 MP (incl. Cornering-ABS and super moto mode, disengageable)
Wheels: Cast aluminium
Front Wheel: 3.50 x 17 in
Rear Wheel: 5.50 x 17 in
Front Tyre: 120/70 x 17
Rear Tyre: 180/55 x 17
Rake: 24°
Trail: 99 mm / 3.9 in
Steering Head Angle: 66°
Dimensions: Length 2062 mm / 81.2 in Width 904 mm / 35.6 in Height 1059 mm / 41.7 in
Wheel base: 1475 ± 15 mm / 58 in
Seat Height: 835.6 mm / 32.9 in (805 mm / 31.7 inches optional)
Ground Clearance: 186 mm / 7.3 in
Wet Weight: 187.7 kg / 414 lbs
Fuel Capacity: 14 Litres / 3.7 US gal
