KTM 790 Adventure R (2019) technical specifications

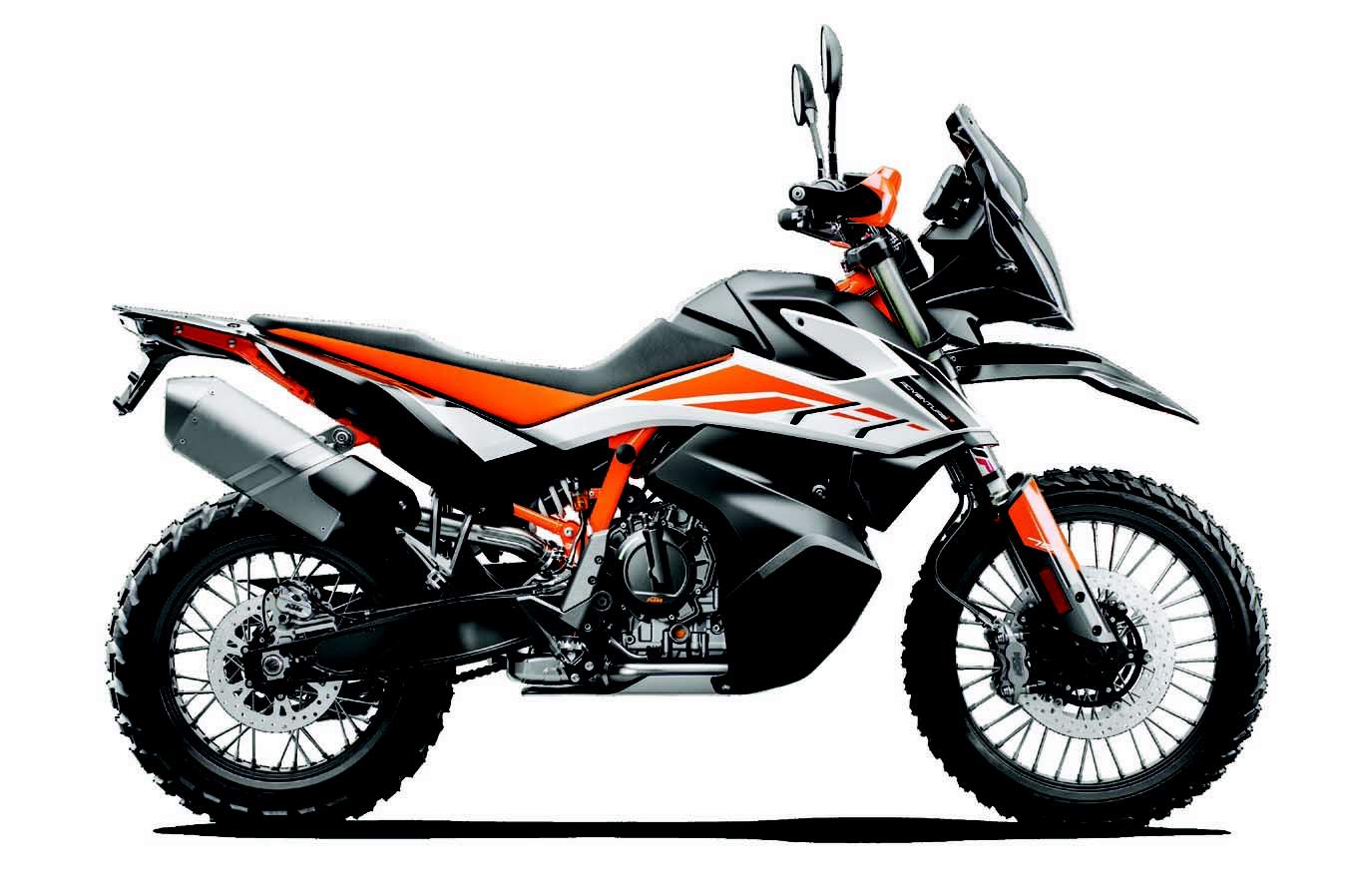

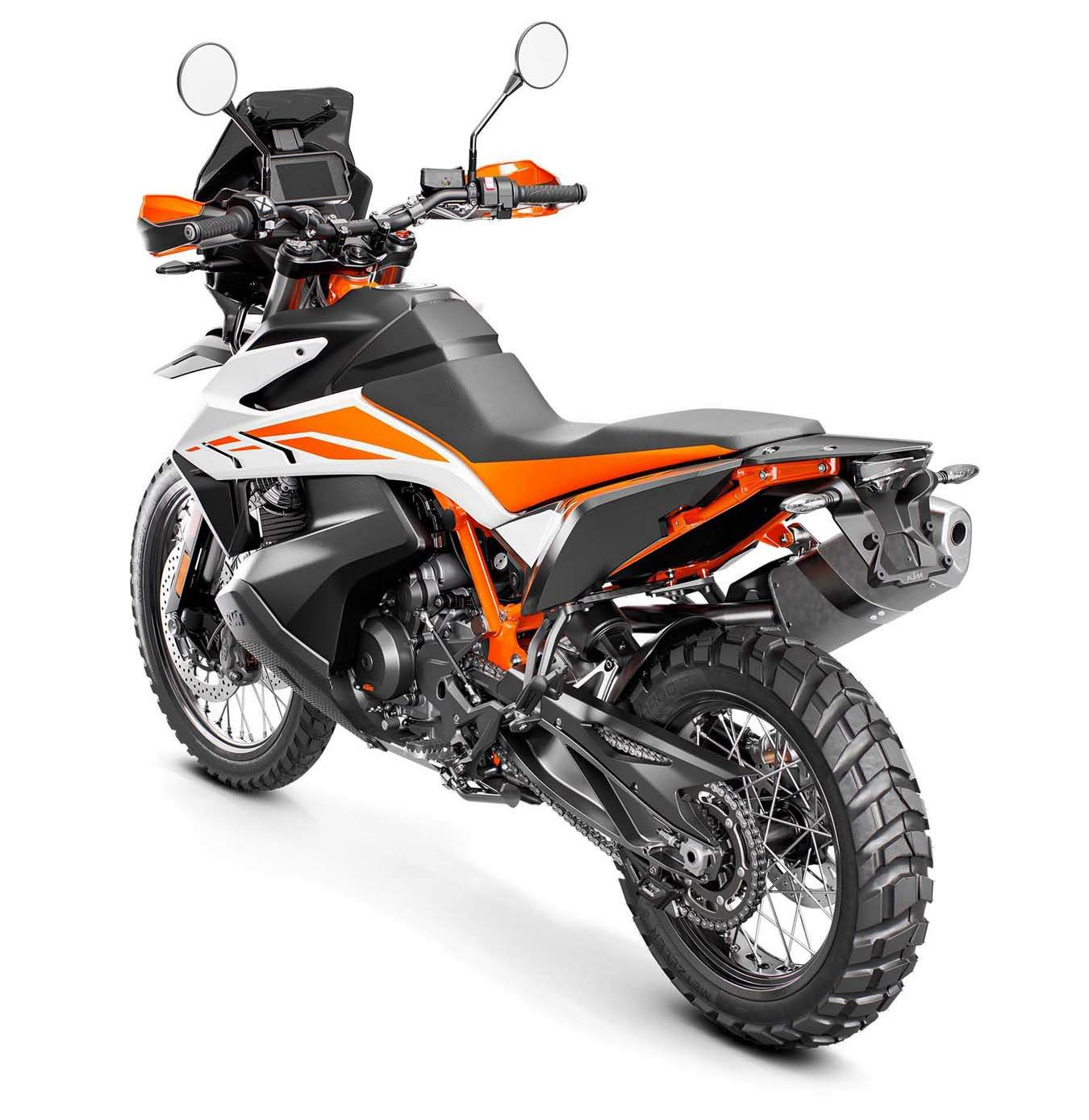

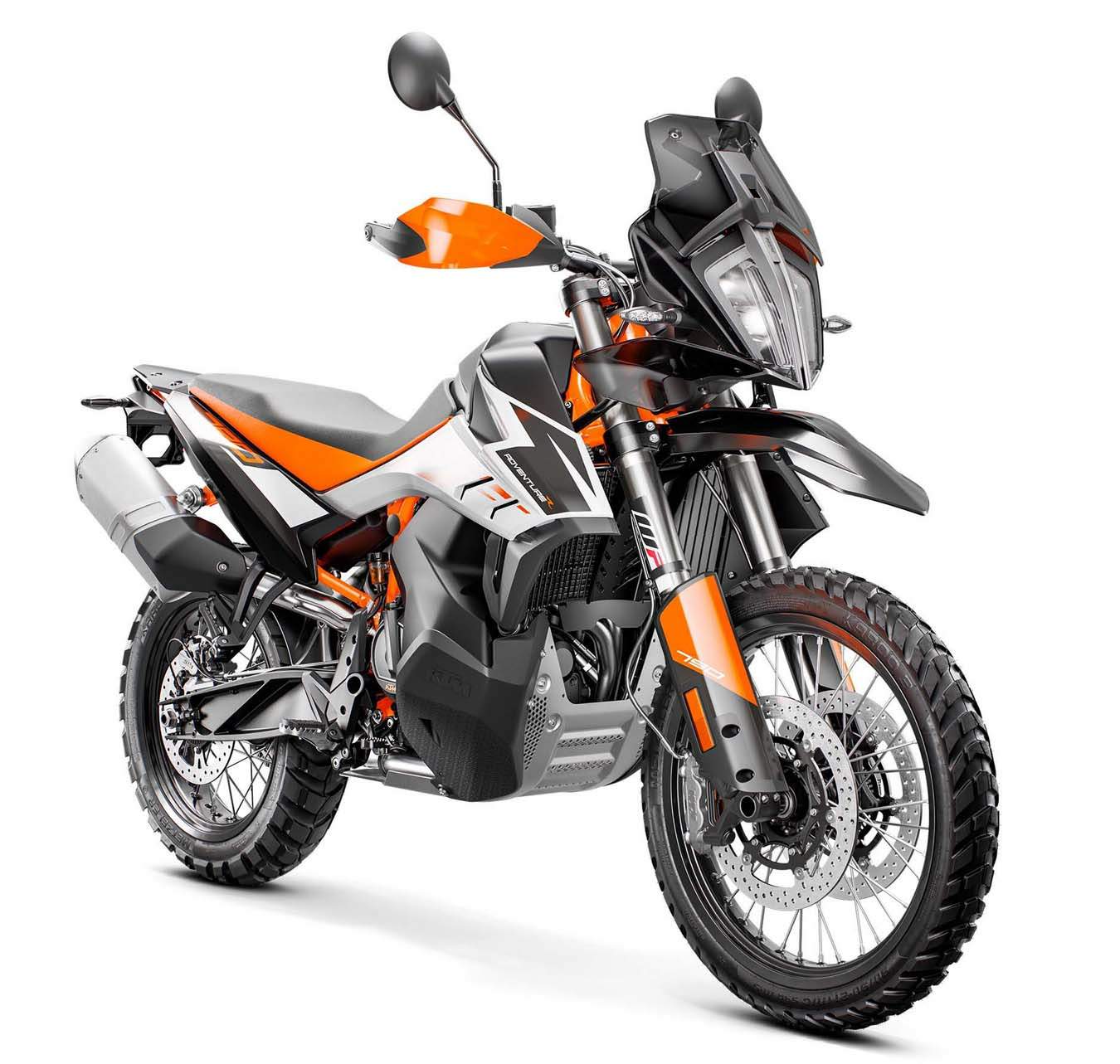

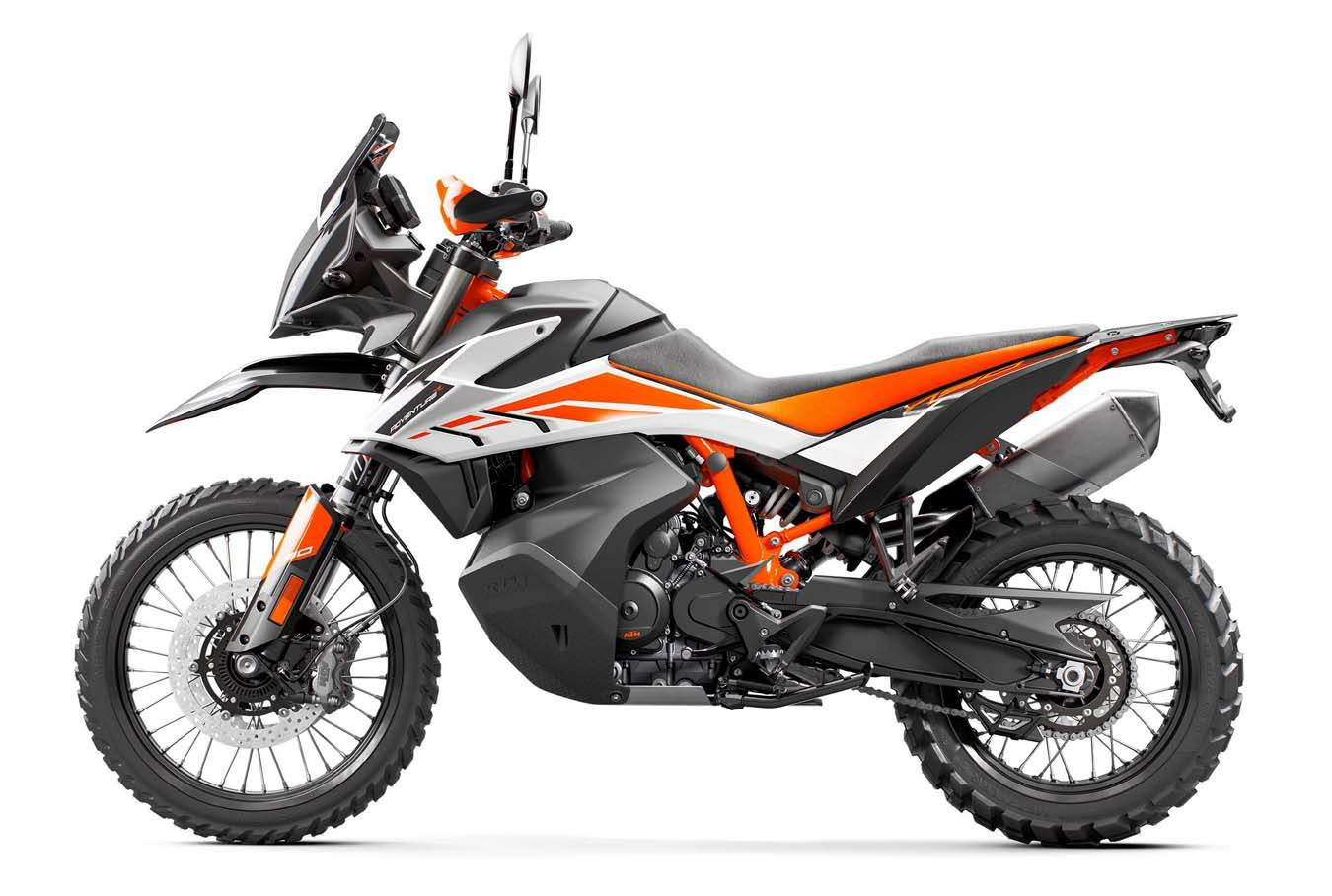

KTM 790 Adventure R is produced in 2019. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder, displacement 799 cc / 48.7 cu-in , produces power 94hp / 70 kW @ and 88 Nm / 65 lb-ft @. KTM 790 Adventure R weighs 189 kg / 416.7 lbs. KTM 790 Adventure R has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	790 Adventure R
Years:	2019
Engine:	Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Capacity:	799 cc / 48.7 cu-in
Bore x Stroke:	88 mm x 65.7 mm
Cooling System:	Liquid cooled
Compression Ratio:
Exhaust:	Stainless steel primary and secondary silencer
Lubrication:	Pressure Lubrication with Two Oil Pumps
Induction:	DKK Dell’Orto, 46 mm Throttle Body
Ignition:	Bosch EMS with Ride-By-Wire
Starting:	Electric, 12V 10Ah
Max Power:	94hp / 70 kW @
Max Torque:	88 Nm / 65 lb-ft @
Clutch:	PASC (Power Assisted Slipper Clutch), Mechanically Operated
Transmission:	6 Speed
Final Drive:	Chain
Frame:	CroMoly Tubular Steel, Engine as Stressed Member, Subframe: CroMoly Steel Trellis
Handlebar:	Aluminum, Tapered, Ø 26/22 mm
Front Suspension:	XPLOR 48mm WP upside-down forks.
Front Wheel Travel:	245 mm / 9.5 in
Rear Suspension:	WP monoshock with PDS
Rear Wheel Travel:	245 mm / 9.5 in
Front Brakes:	2x 320mm discs. ABS
Rear Brakes:	Single 260mm disc. ABS
Front Wheel:	2.50 x 21”,
Rear Wheel:	4.50 x 18”
Front Tyre:	90/90-21
Rear Tyre:	150/70-18
Steering Head Angle:	26.3º
Wheel base:	1528 mm ± 15 mm / 60.2 ± 0.6 in
Seat Height:	880 mm / 34.6 in
Ground Clearance:	263 mm / 10.4 in
Dry Weight:	189 kg / 416.7 lbs
Wet Weight:	203 kg / 448 lbs
Fuel Capacity:	20 Litres / 5.3 US gal
