KTM 790 Adventure (2019) technical specifications

KTM 790 Adventure technical specifications

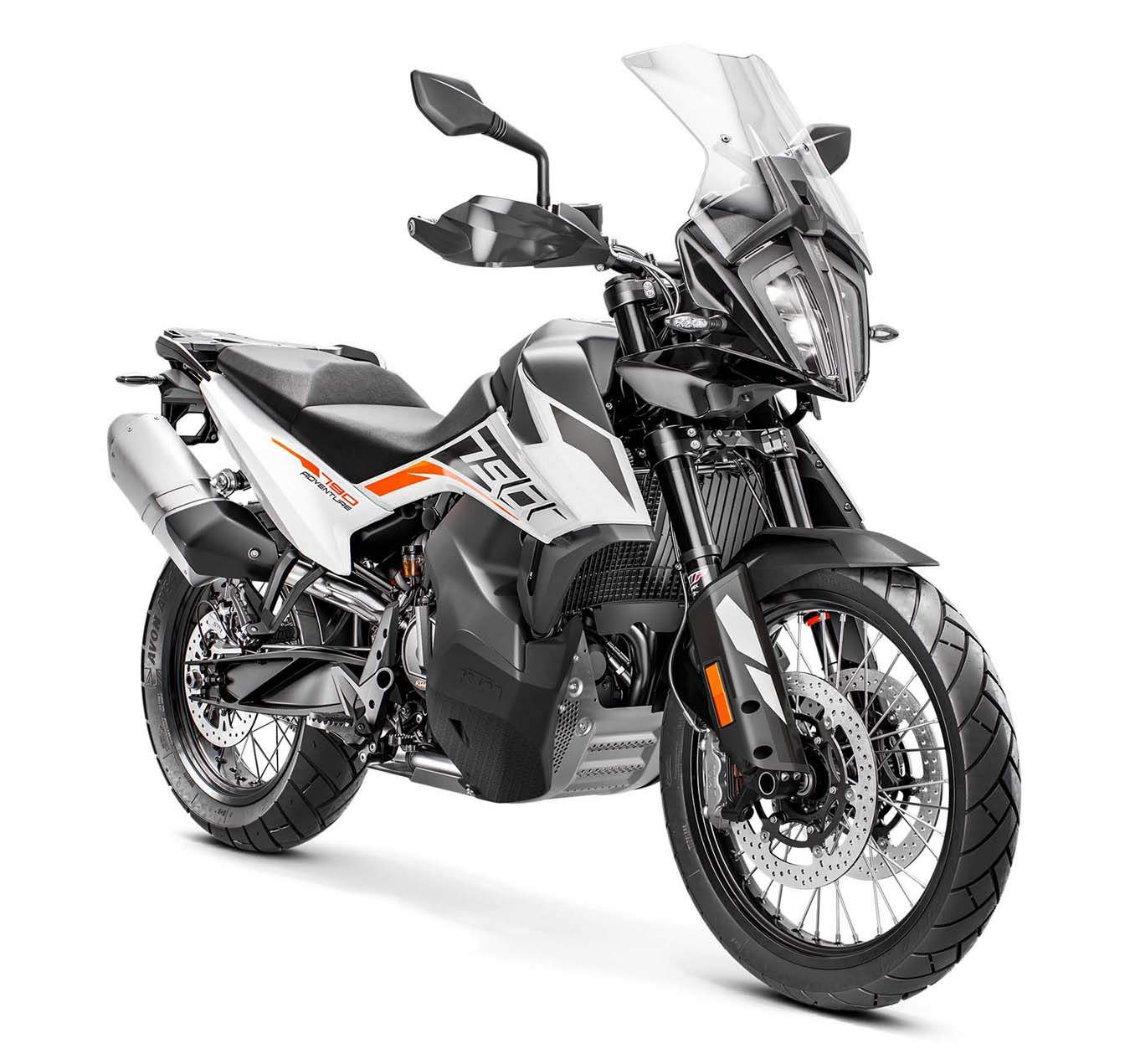

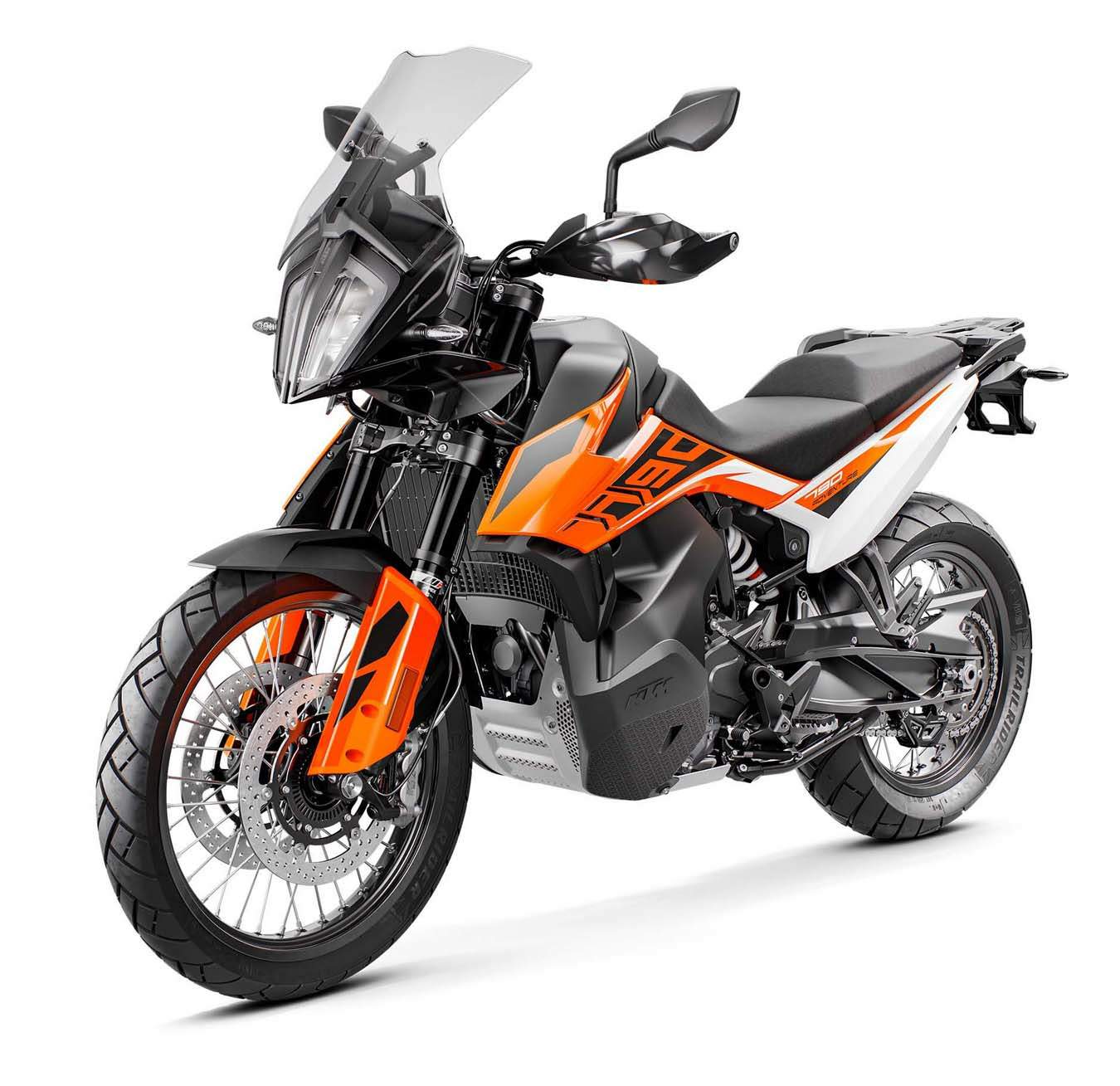

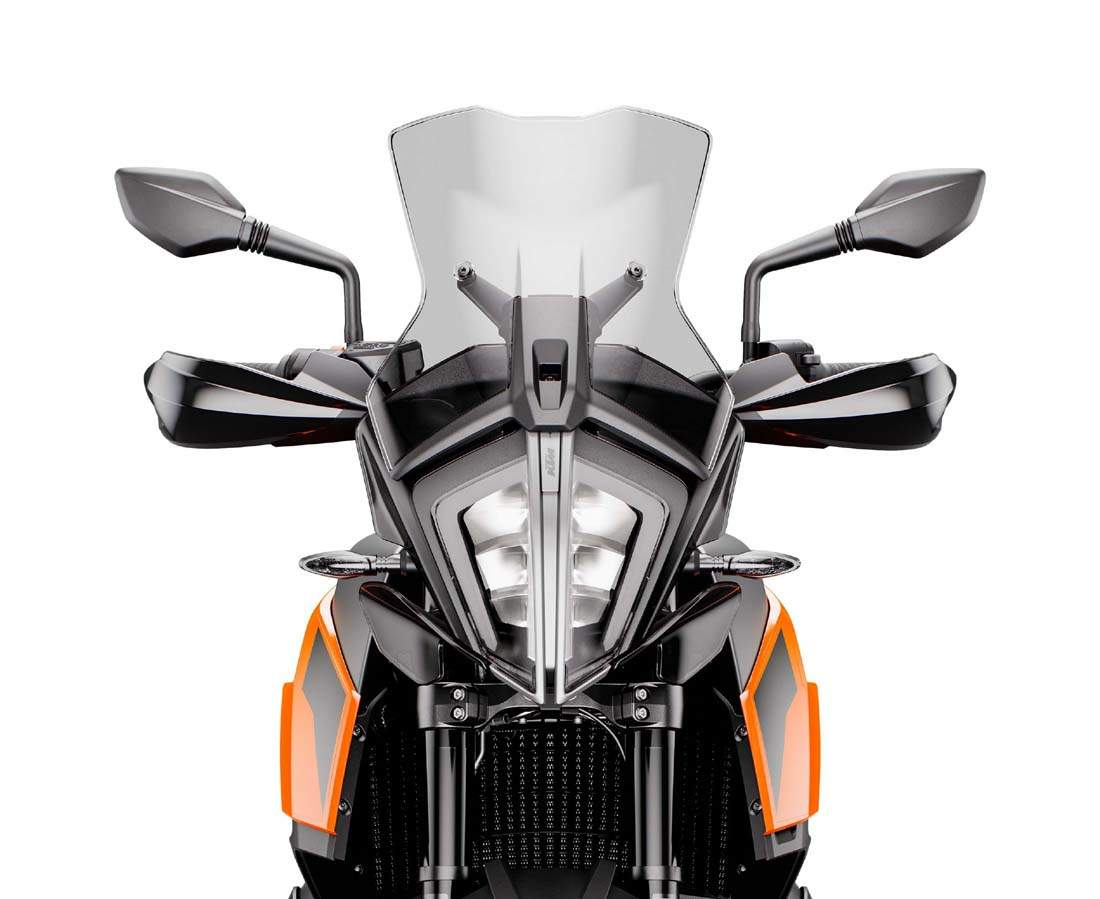

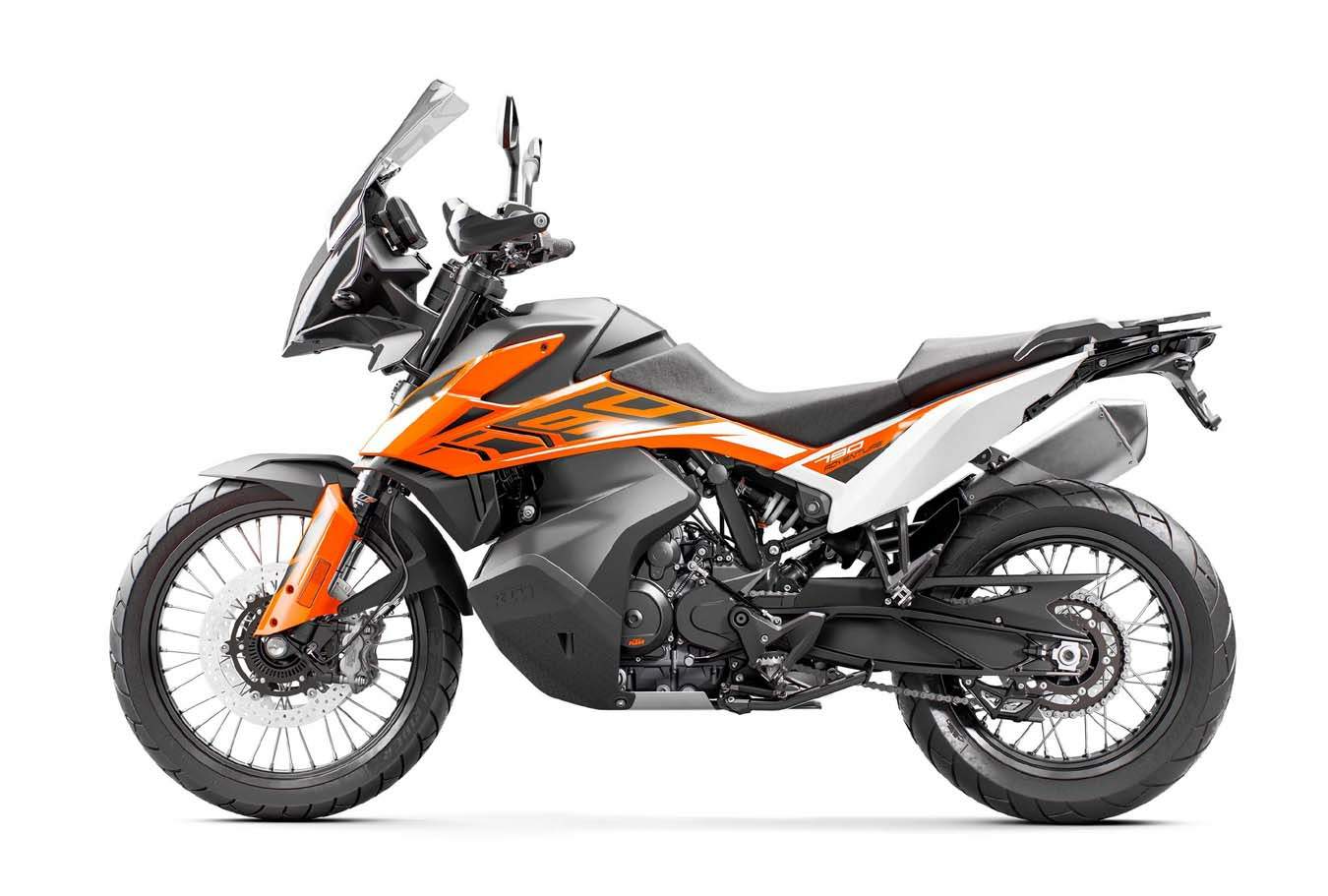

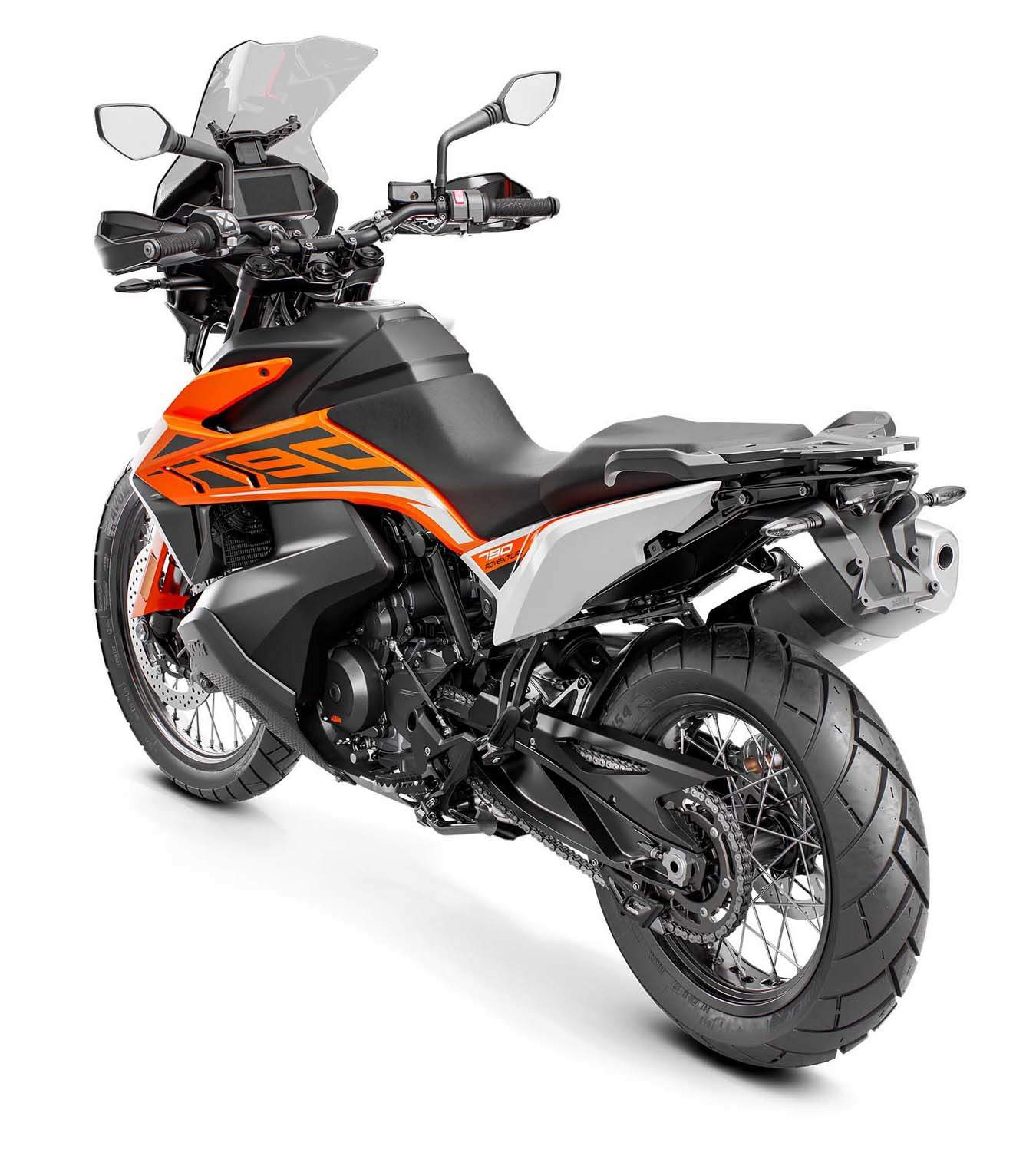

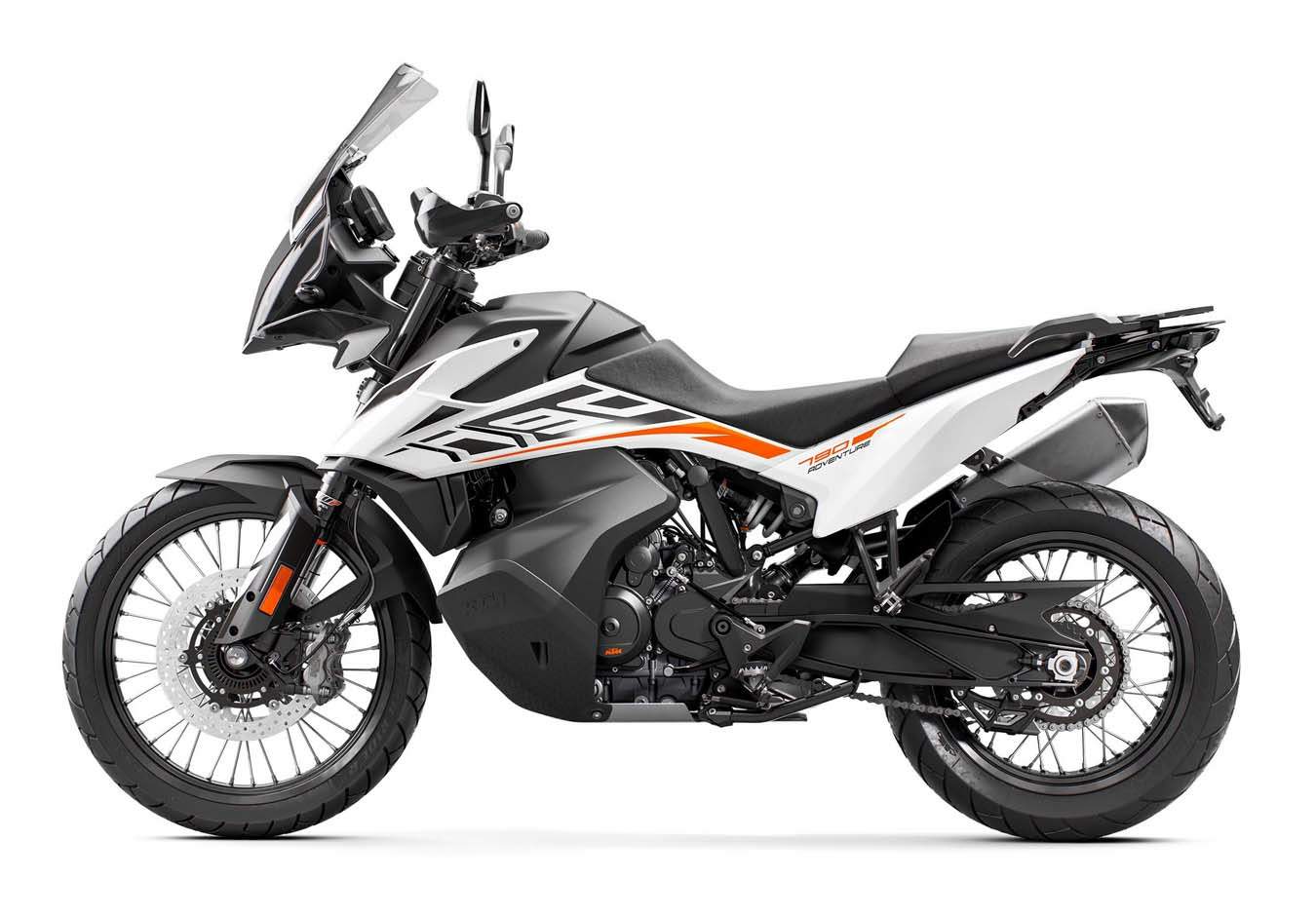

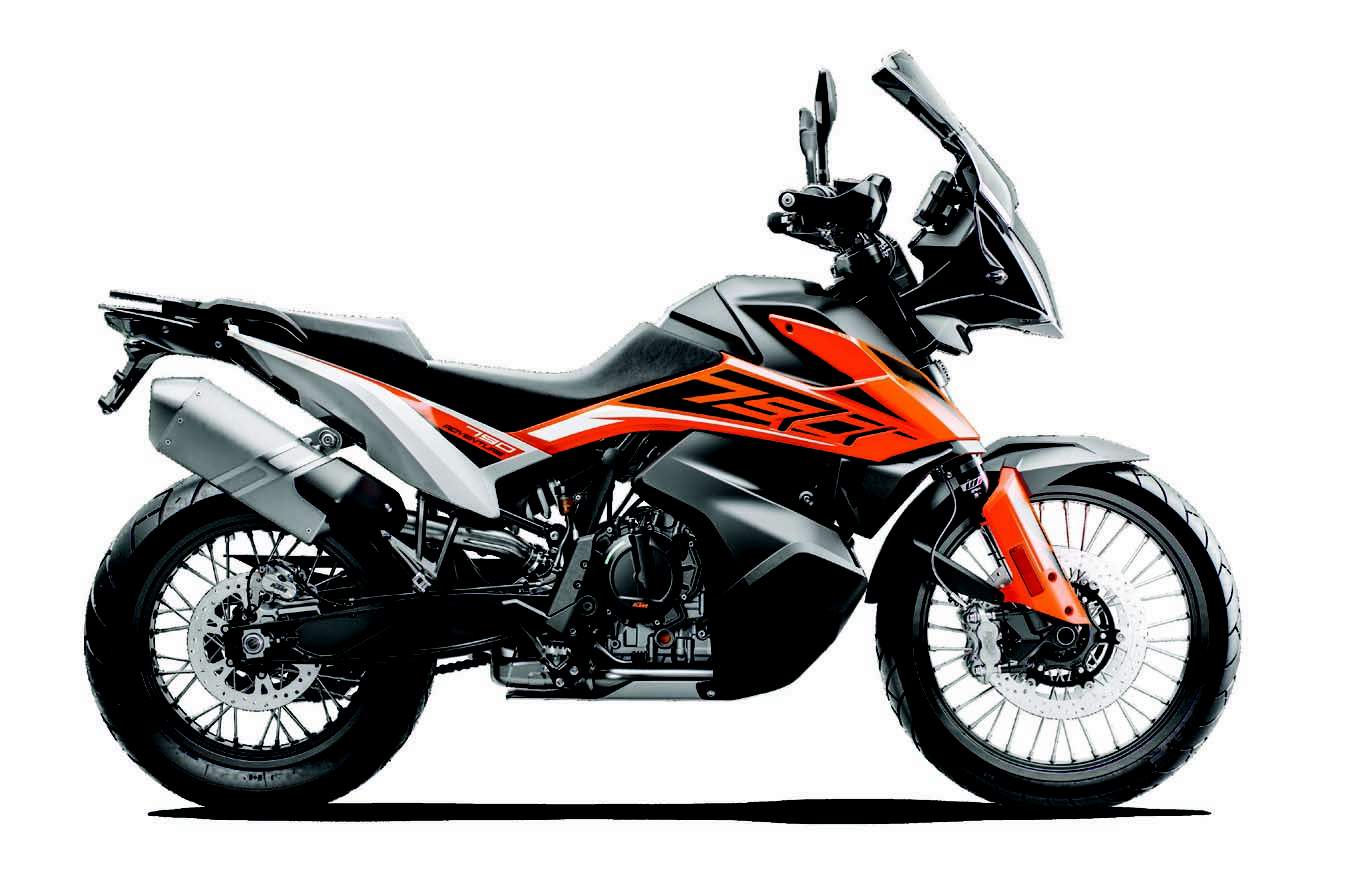

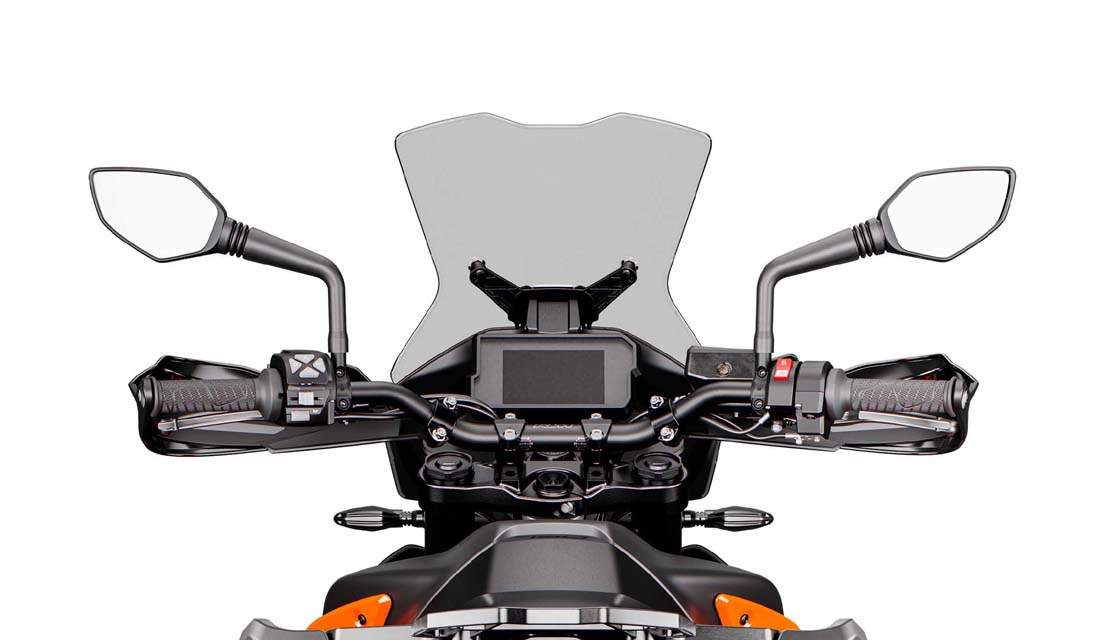

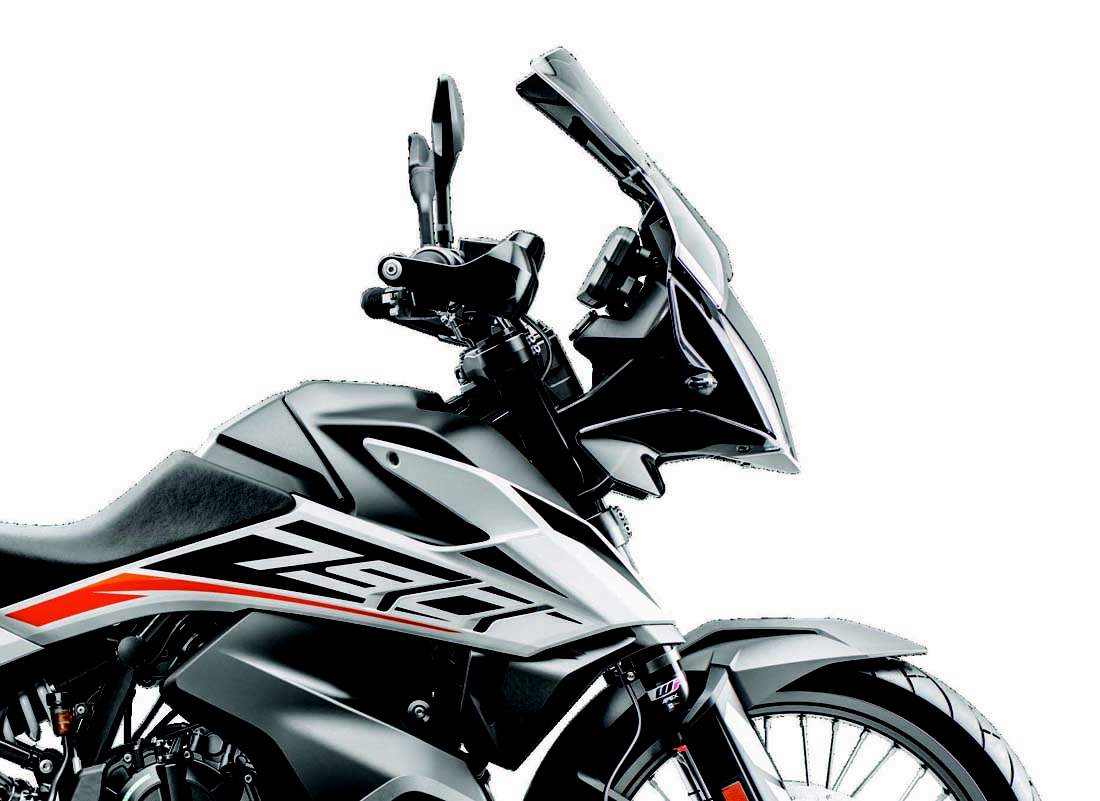

KTM 790 Adventure is produced in 2019. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder, displacement 799 cc / 48.7 cu-in , produces power 94hp / 70 kW @ and 88 Nm / 65 lb-ft @. KTM 790 Adventure weighs 189 kg / 416.7 lbs. KTM 790 Adventure has 10 photos.

Technical specifications

+ Add to 'Compare list'
Model: 790 Adventure
Years: 2019
Engine: Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Capacity: 799 cc / 48.7 cu-in
Bore x Stroke: 88 mm x 65.7 mm
Cooling System: Liquid cooled
Compression Ratio:

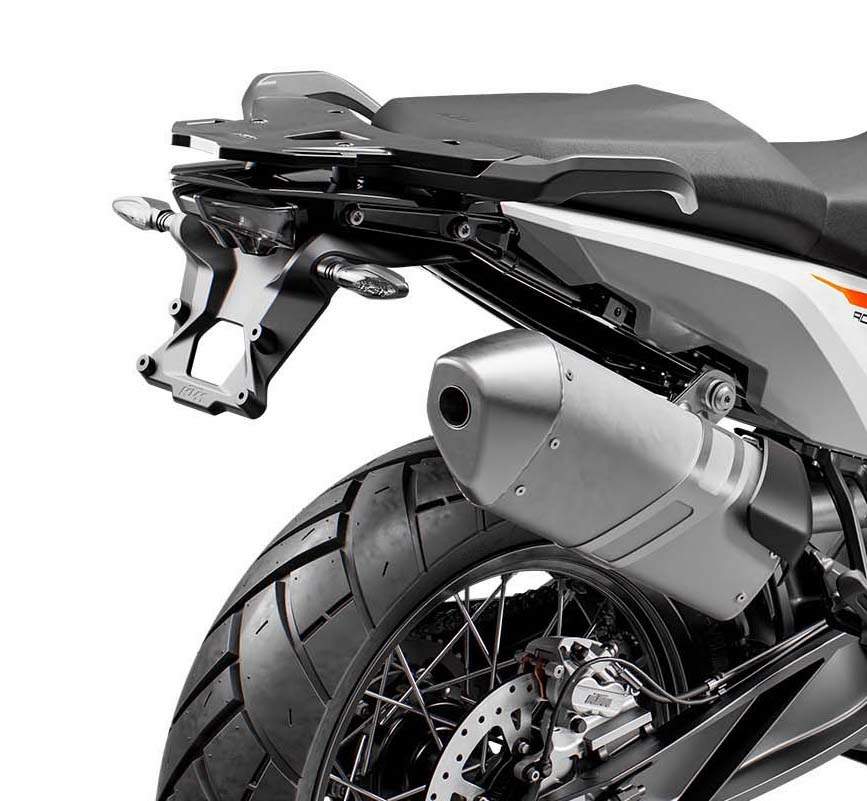

Exhaust: Stainless steel primary and secondary silencer
Lubrication: Pressure Lubrication with Two Oil Pumps
Induction: DKK Dell’Orto, 46 mm Throttle Body
Ignition: Bosch EMS with Ride-By-Wire
Starting: Electric, 12V 10Ah
Max Power: 94hp / 70 kW @
Max Torque: 88 Nm / 65 lb-ft @
Clutch: PASC (Power Assisted Slipper Clutch), Mechanically Operated
Transmission: 6 Speed
Final Drive: Chain
Frame: CroMoly Tubular Steel, Engine as Stressed Member, Subframe: CroMoly Steel Trellis
Handlebar: Aluminum, Tapered, Ø 26/22 mm
Front Suspension: APEX 43mm WP upside-down forks.
Front Wheel Travel: 200 mm / 7.9 in
Rear Suspension: WP monoshock
Rear Wheel Travel: 200 mm / 7.9 in
Front Brakes: 2x 320mm discs. ABS
Rear Brakes: Single 260mm disc. ABS
Front Wheel: 2.50 x 21”,
Rear Wheel: 4.50 x 18”
Front Tyre: 90/90-21
Rear Tyre: 150/70-18
Steering Head Angle: 25.9º
Wheel base: 1509 mm ± 15 mm / 59.4 ± 0.6 in
Seat Height: 850 / 830 mm; 33.5 / 32.7 in
Ground Clearance: 233 mm / 9.2 in
Dry Weight: 189 kg / 416.7 lbs
Wet Weight: 203 kg / 448 lbs
Fuel Capacity: 20 Litres / 5.3 US gal
