KTM 690 SMC R (2019) technical specifications

KTM 690 SMC R technical specifications

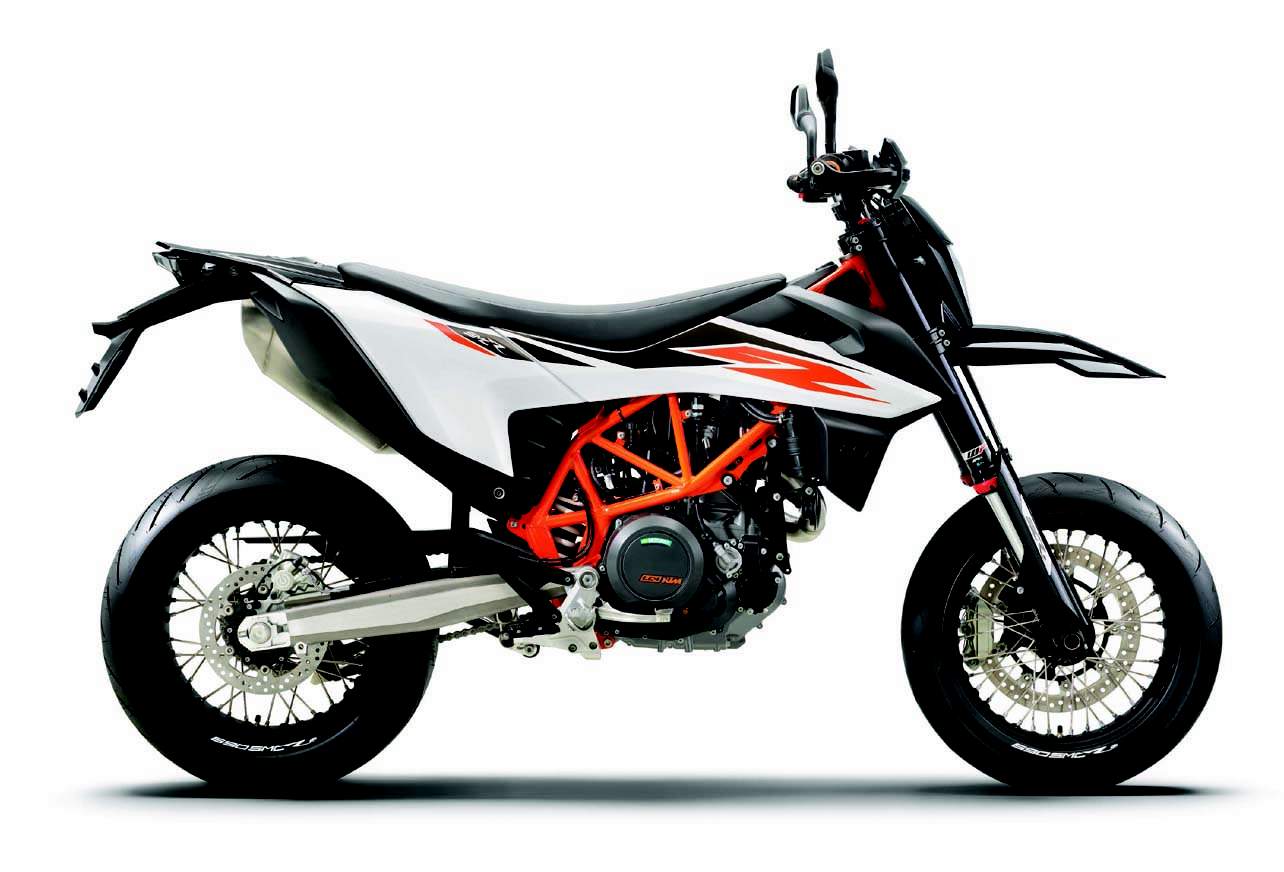

KTM 690 SMC R is produced in 2019. Engine is Single cylinder, 4-stroke, SOHC, 4-valve, displacement 690 cc / 42.1 cu in , produces power 72 hp / 54 kW @ and 73.5 Nm / 54 lb-ft @ 6500 rpm. KTM 690 SMC R weighs 147 kg / 324 lbs. KTM 690 SMC R has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: 690 SMC R
Years: 2019
Engine: Single cylinder, 4-stroke, SOHC, 4-valve
Capacity: 690 cc / 42.1 cu in
Bore x Stroke: 105 x 80 mm
Compression Ratio: 12.7:1
Cooling System: Liquid cooled
Lubrication System: Pressure lubrication with 2 oil pumps
Exhaust: Stainless steel primary and secondary silencer
Induction: Keihin EFI (throttle body 50 mm)
Ignition: Keihin EMS with RBW, double ignition
Starting: Electric
Battery: Lithium Ion 12V 8,6Ah
Max Power: 72 hp / 54 kW @
Max Torque: 73.5 Nm / 54 lb-ft @ 6500 rpm
Clutch: PASC™ slipper clutch, hydraulically operated
Transmission: 6-Speed
Final Drive: Chain, X-Ring 5/8 × 1/4 in
Primary Drive: 36:79
Frame: Chromium-molybdenum-steel trellis frame, powder coated
Sub Frame: Self-supporting plastic tank
Handlebar: Aluminum, tapered, Ø 28 / 22 mm
Front Suspension: WP USD XPLOR 48 forks
Front Wheel Travel: 215 mm / 8.4 in
Rear Suspension: WP shock absorber with Pro-Lever linkage
Rear Wheel Travel: 240 mm / 9.4 in
Front Brakes: Single 320mm disc, Brembo 4 piston floating caliper
Rear Brakes: Single 240 mm disc, Brembo single piston floating caliper
ABS: Bosch 9.1 MP (incl. Cornering ABS and offroad mode, disengageable)
Front Wheel: Spoked wheels with aluminum tubeless rims 3.50 × 17″;
Rear Wheel: Spoked wheels with aluminum tubeless rims 5.00 × 17″
Front Tyre: 120/70 ZR 17
Rear Tyre: 160/60 ZR 17
Steering Head Angle: 63.6°
Trail: 107.7 mm / 4.2 in
Wheelbase: 1470 mm / 57.8 in
Ground Clearance: 238 mm / 9.3 in
Seat Height: 890 mm / 35.0 in
Dry Weight: 147 kg / 324 lbs
Fuel Capacity: 13.5 Litres / 3.5 US gal
