KTM 690 Enduro R (2019) technical specifications

KTM 690 Enduro R technical specifications

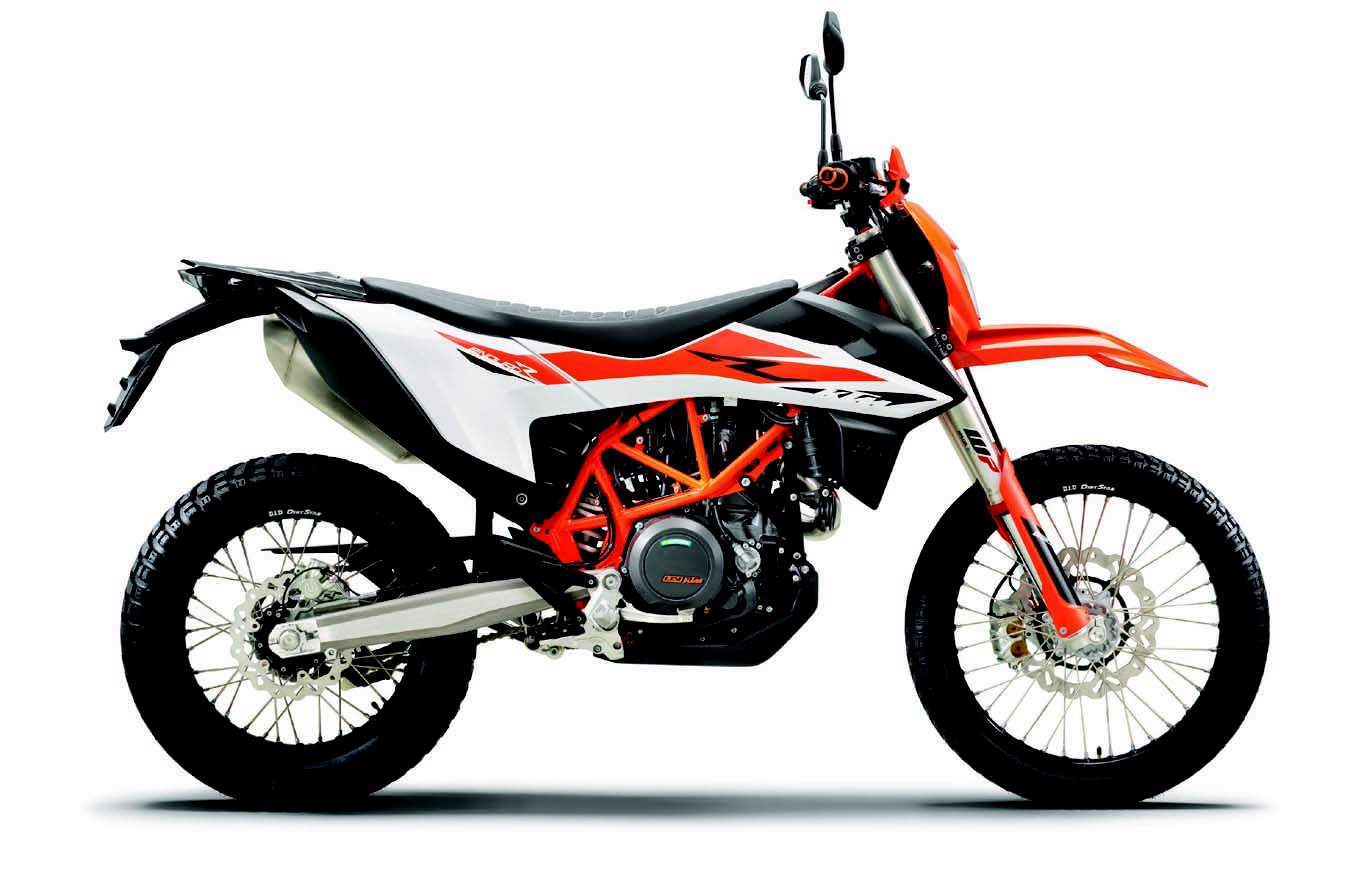

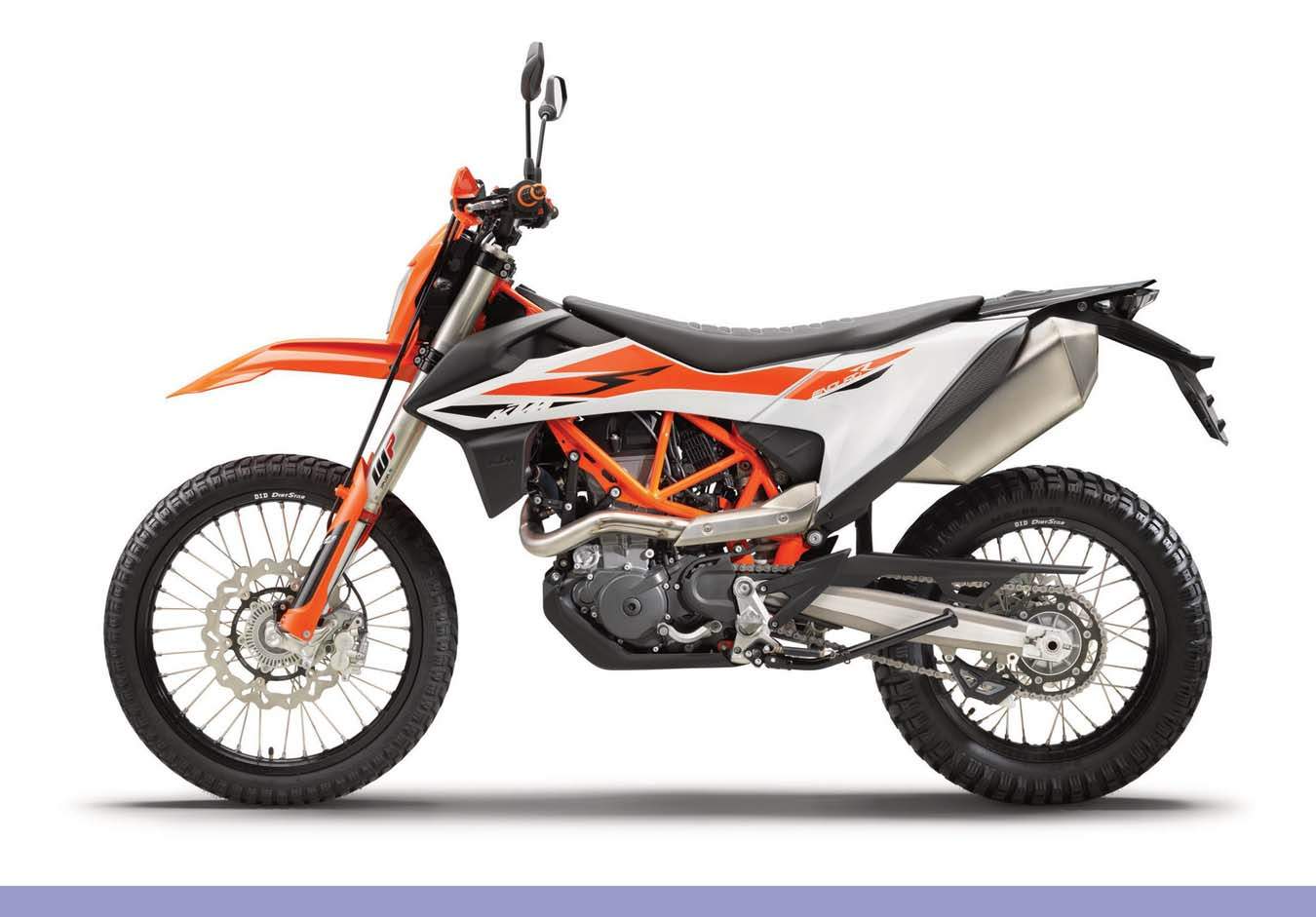

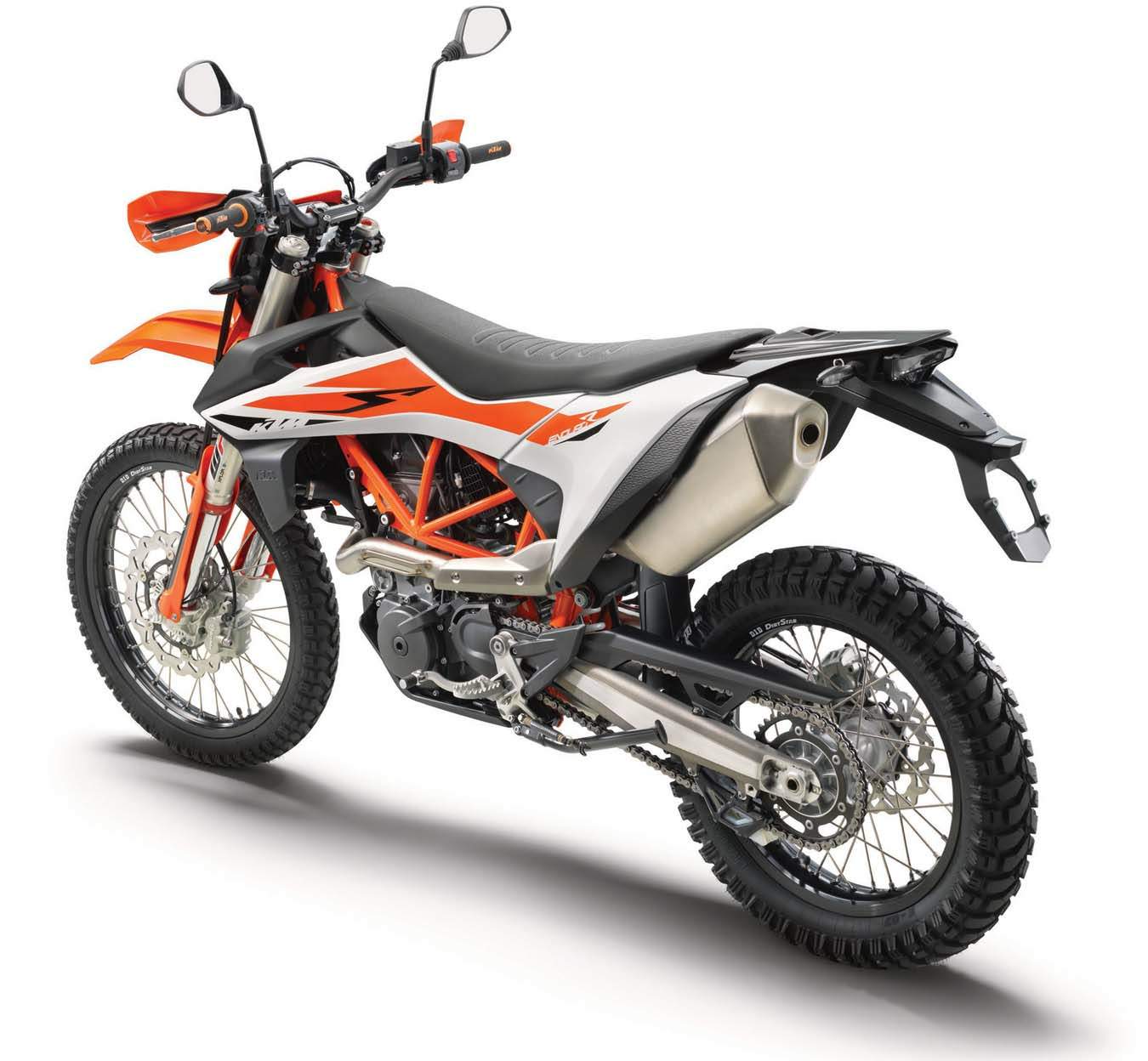

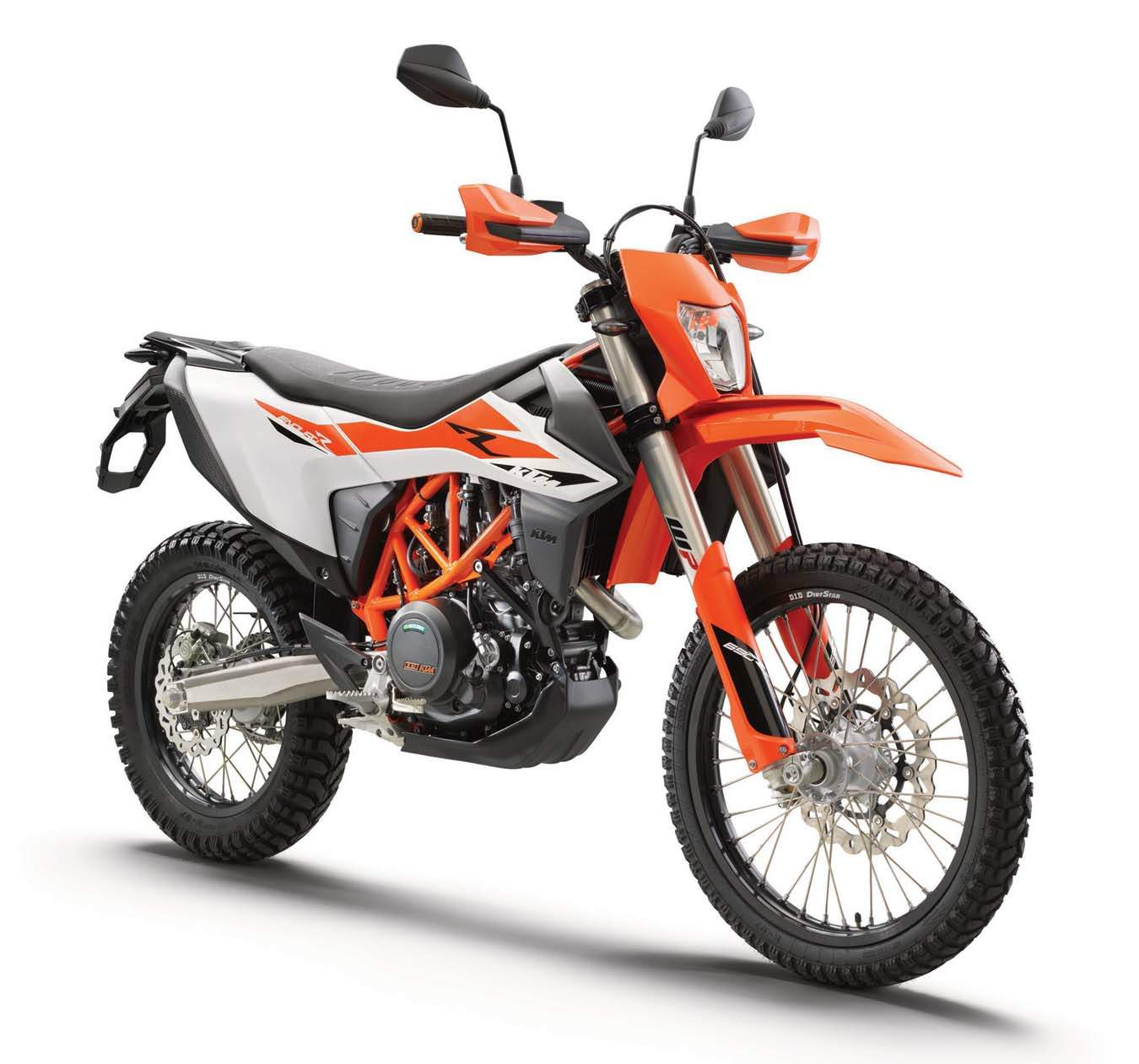

KTM 690 Enduro R is produced in 2019. Engine is Single cylinder, 4-stroke, SOHC, 4-valve, displacement 690 cc / 42.1 cu in , produces power 72 hp / 54 kW @ and 73.5 Nm / 54 lb-ft @ 6500 rpm. KTM 690 Enduro R weighs 146 kg / 321.8 lbs. KTM 690 Enduro R has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: 690 Enduro R
Years: 2019
Engine: Single cylinder, 4-stroke, SOHC, 4-valve
Capacity: 690 cc / 42.1 cu in
Bore x Stroke: 105 x 80 mm
Compression Ratio: 12.7:1
Cooling System: Liquid cooled
Lubrication System: Pressure lubrication with 2 oil pumps
Exhaust: Stainless steel primary and secondary silencer
Induction: Keihin EFI (throttle body 50 mm)
Ignition: Keihin EMS with RBW, double ignition
Starting: Electric
Battery: Lithium Ion 12V 8,6Ah
Max Power: 72 hp / 54 kW @
Max Torque: 73.5 Nm / 54 lb-ft @ 6500 rpm
Clutch: PASC™ slipper clutch, hydraulically operated
Transmission: 6-Speed
Final Drive: Chain, 16:40
Primary Drive: 36:79
Frame: Chromium-molybdenum-steel trellis frame, powder coated
Sub Frame: Self-supporting plastic tank
Handlebar: Aluminum, tapered, Ø 28 / 22 mm
Front Suspension: WP USD XPLOR 48 forks
Front Wheel Travel: 250 mm / 9.8 in
Rear Suspension: WP shock absorber with Pro-Lever linkage
Rear Wheel Travel: 250 mm / 9.8 in
Front Brakes: Single 300 mm disc, Brembo 2 piston floating caliper
Rear Brakes: Single 240 mm disc, Brembo single piston floating caliper
ABS: Bosch 9.1 MP (incl. Cornering ABS and offroad mode, disengageable)
Front Wheel: Spoked wheels with aluminum rims, 1.85 × 21″
Rear Wheel: Spoked wheels with aluminum rims, 2.50 × 18″
Front Tyre: 90/90 -21
Rear Tyre: 140/80 -18
Steering Head Angle: 62.3°
Trail: 117.3 mm / 4.6 in
Wheelbase: 1502 mm / 59.1 in
Ground Clearance: 270 mm / 10.6 in
Seat Height: 910 mm / 35.8 in
Dry Weight: 146 kg / 321.8 lbs
Fuel Capacity: 13.5 Litres / 3.5 US gal
