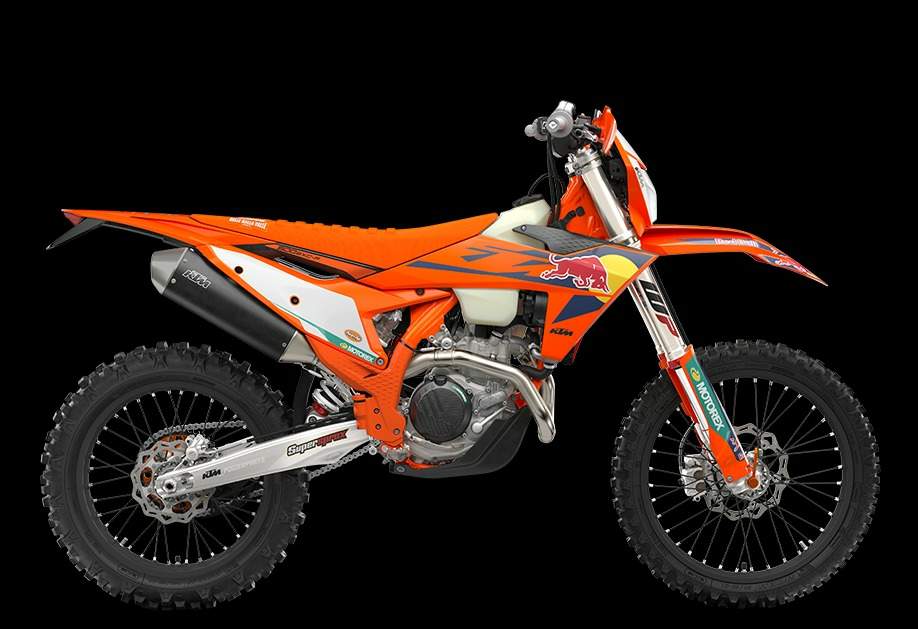

KTM 500 EXC Chamption (2025) technical specifications
KTM 500 EXC Chamption is produced in 2025. Engine is Four stroke, single cylinder, SOHC, 4 valves per cylinder, displacement 510.9 cc / 31.1 cu-in KTM 500 EXC Chamption wet weight is 108.7 kg / 239.6 lbs. KTM 500 EXC Chamption has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 500 EXC Chamption |
| Years: | 2025 |
| Engine: | Four stroke, single cylinder, SOHC, 4 valves per cylinder |
| Capacity: | 510.9 cc / 31.1 cu-in |
| Bore x Stroke: | 95 x 72 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 12.75:1 |
| Lubrication: | Pressure lubrication with 2 pumps |
| Induction: | Keihin EFI with 42mm throttle body |
| Ignition: | Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan |
| Starting: | Electric |
| Clutch: | Wet multi-disc DDS clutch with Brembo hydraulics |
| Transmission: | 6 Speed wide ratio |
| Final Drive: | Chain 5/8 x 1/4 |
| Primary Drive Ratio: | 29:72 |
| Gear Ratios: | 1st 14:36 / 2nd 17:32 / 3rd 19:28 / 4th 22:26 / 5th 23:24 / 6th 26:21 |
| Final Drive Ratio: | 14:50 |
| Frame: | Central double-cradle type 25CrMo4 |
| Front Suspension: | 48mm Fully adjustable WP XACT inverted fork |
| Front Wheel Travel: | 300 mm / 11.8 in |
| Rear Suspension: | Linkage-free fully adjustable WP XPLOR shock with PDS |
| Rear Wheel Travel: | 310 mm / 12.2 in |
| Front Brakes: | Single 260 mm Galfer Wave disc with Brembo caliper |
| Rear Brakes: | Single 220 mm Galfer Wave disc with Brembo caliper |
| Front Rim: | Giant 1.60 - 21 |
| Rear Rim: | Giant 2.15 - 18 |
| Front Tyre: | 90/90 - 21 |
| Rear Tyre: | 140/80 - 18 |
| Rake: | 26.1? |
| Steering Head Angle: | 63.9 |
| Wheelbase: | 1489 mm / 58.3 in |
| Seat Height: | 963 mm / 37.9 in |
| Ground Clearance: | 355 mm / 13.9 in |
| Wet Weight: | 108.7 kg / 239.6 lbs |
| Fuel Capacity: | 8.5 Litres / 2.25 US gal |
