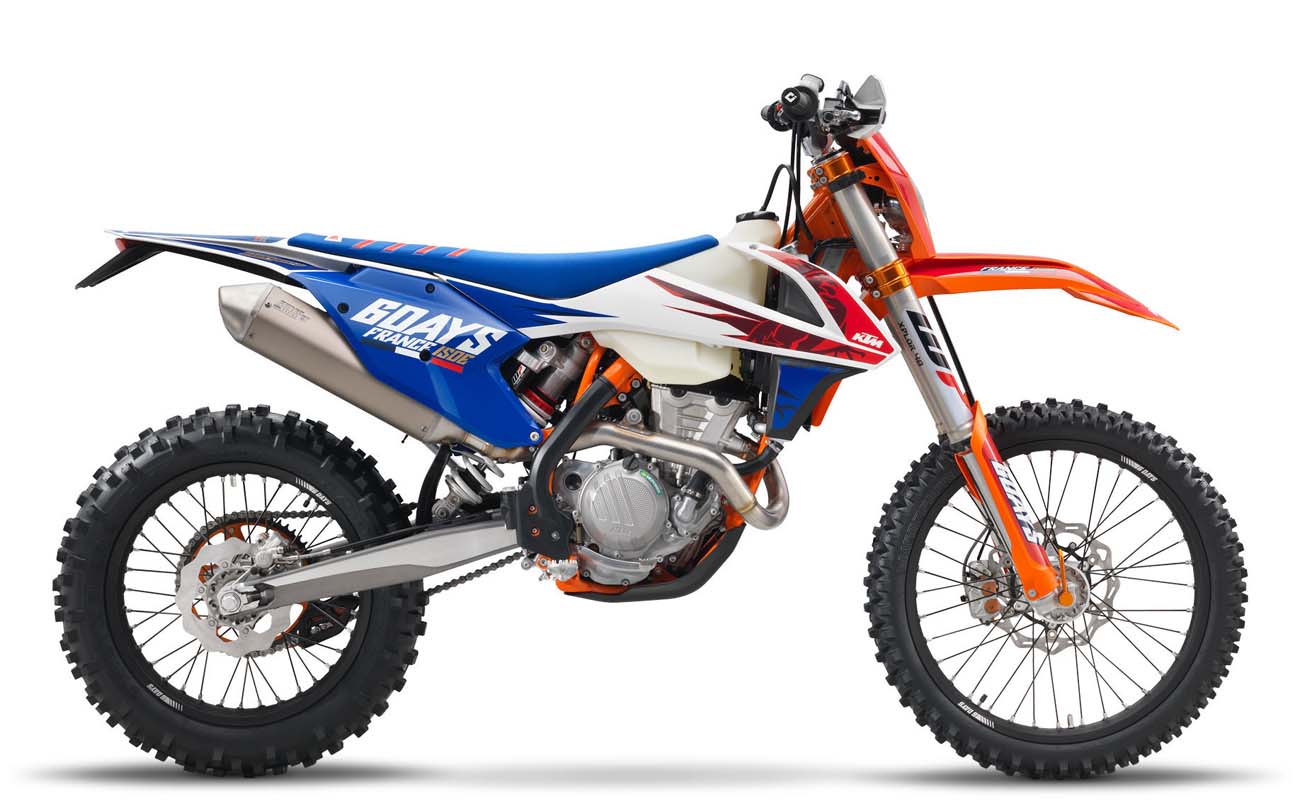

KTM 450 EXC-F (2017) technical specifications
KTM 450 EXC-F is produced in 2017. Engine is Four stroke, single cylinder, SOHC, 4 valves per cylinder, displacement 449.3 cc / cu-in KTM 450 EXC-F weighs 106 kg / 233.7 lbs. KTM 450 EXC-F has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 450 EXC-F |
| Years: | 2017 |
| Engine: | Four stroke, single cylinder, SOHC, 4 valves per cylinder |
| Capacity: | 449.3 cc / cu-in |
| Bore x Stroke: | 95 x 63.4 mm |
| Compression Ratio: | 11.9:1 |
| Lubrication: | Pressure lubrication with 2 rotor pumps |
| Induction: | Keihin MX FCR 39 carburetor |
| Ignition: | Keihin EMS |
| Starting: | Electric |
| Clutch: | Wet, DDS multi-disc clutch, Brembo hydraulics |
| Transmission: | 6 Speed |
| Primary Drive Ratio: | 31:76 |
| Secondary Gear Ratio: | 14:52 |
| Final Drive: | Chain X-Ring 5/8 x 1/4″ |
| Frame: | 25CrMo4 steel central-tube frame |
| Front Suspension: | WP 4860 MA upside-down fork |
| Front Wheel Travel: | 300 mm / 11.8 in |
| Rear Suspension: | WP Xplor PDS shock absorber |
| Rear Wheel Travel: | 310 mm / 1.2 in |
| Front Brakes: | Single 260 mm disc, floating caliper |
| Rear Brakes: | Single 220mm disc, floating caliper |
| Front Tyre: | 90/90 - 21 |
| Rear Tyre: | 140/80 - 18 |
| Steering Head Angle: | 63.5° |
| Wheelbase: | 1482 mm / 58.3 in |
| Seat Height: | 960 mm / 37.8 in |
| Ground Clearance: | 355 mm / 14.0 in |
| Dry Weight: | 106 kg / 233.7 lbs |
| Fuel Capacity: | 8.5 Litres / 2.2 US gal |
