KTM 390 Duke (2015-16) technical specifications

KTM 390 Duke technical specifications

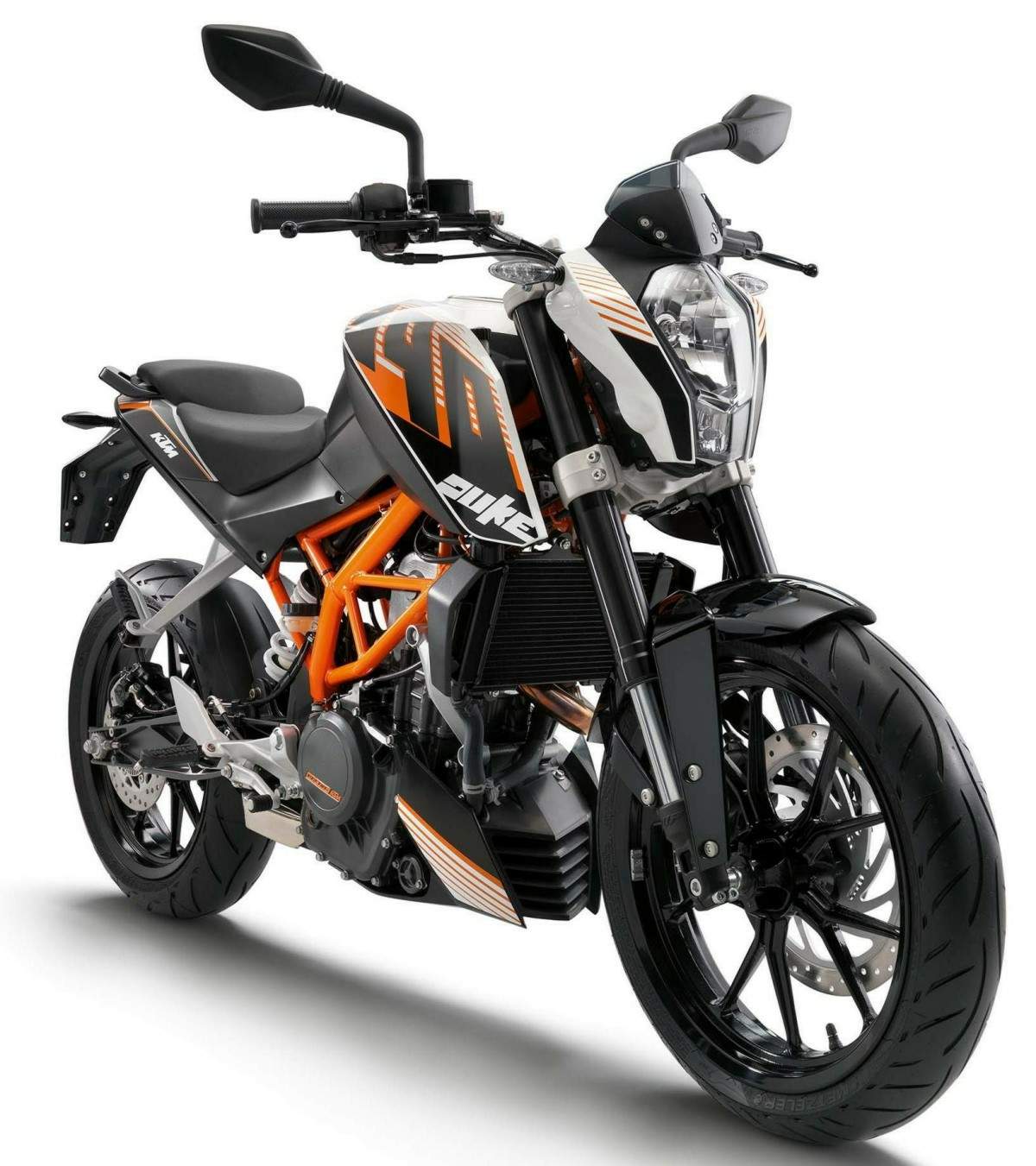

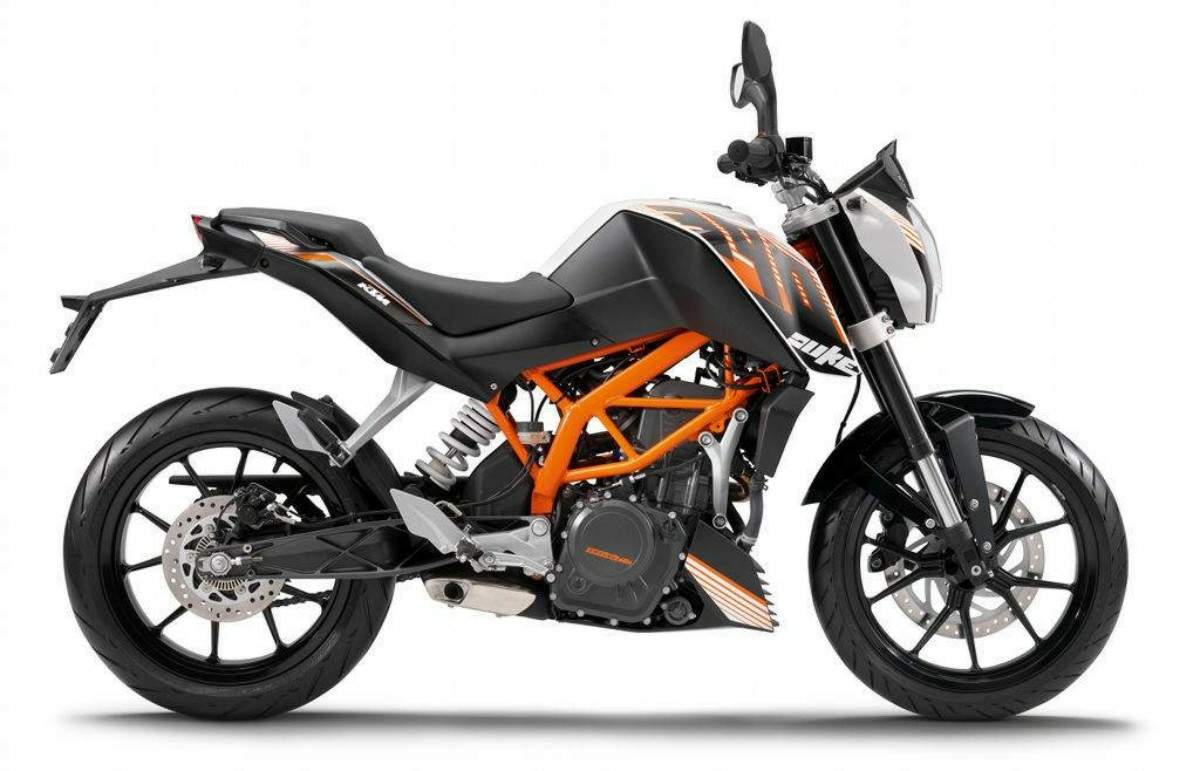

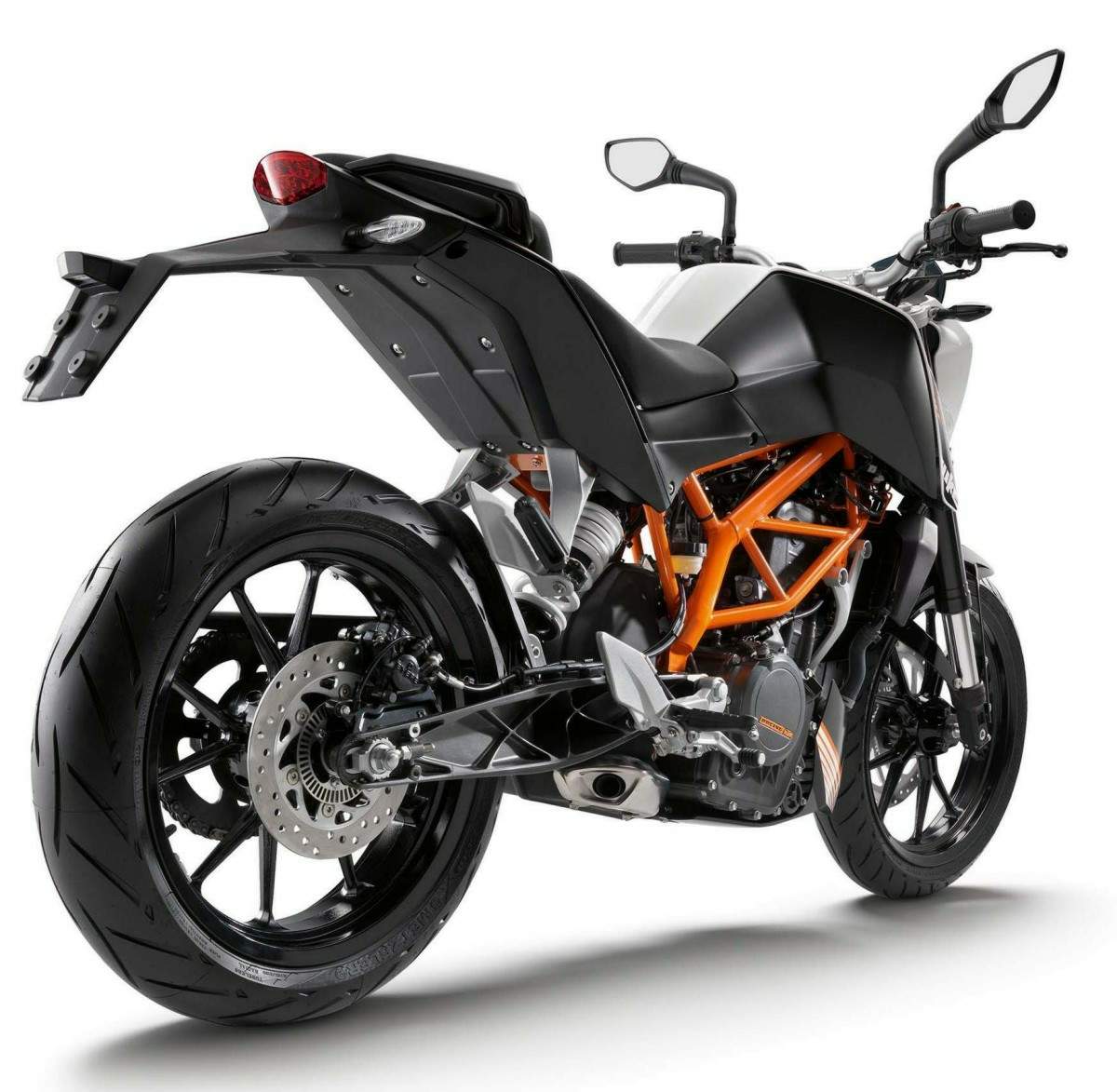

KTM 390 Duke is produced in 2015-16. Engine is Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinder, displacement 373.4 cc / 22.7 cu-in , produces power 32 kW / 43.5 hp @ 9500 rpm and 35.3 Nm / 3.6 kg-m / 26 ft-lb @7000rpm. KTM 390 Duke weighs 139 kg / 306 lbs. KTM 390 Duke has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: 390 Duke
Years: 2015-16
Engine: Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinder
Capacity: 373.4 cc / 22.7 cu-in
Bore x Stroke: 89 x 60 mm
Compression Ratio: 12.8:1
Cooling System: Liquid Cooled
Lubrication: Forced oil lubrication with 2 Eaton pumps
Induction: Bosch electronically controlled injection
Spark Plug: Bosch VR 5 NE
Ignition: Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Starting: Electric
Battery: FTZ-9, 12V 8Ah, maintenance free
Max Power: 32 kW / 43.5 hp @ 9500 rpm
Max Torque: 35.3 Nm / 3.6 kg-m / 26 ft-lb @7000rpm
Clutch: Wet multi-disc clutch, Brembo hydraulics
Transmission: 5 Speed, claw shifted
Final Drive: Chain 5/8 x 1/4" X Ring
Gear Ratios: 1st 12:32 / 2nd 14:26 / 3rd 19:27 / 4th 21:24 / t5th 23:22 / 6th 25:21
Primary Drive Ratio: 30:80
Final Drive Ratio: 15:45
Frame: Steel trellis
Front Suspension: WP inverted fork Ø 43 mm
Front Wheel Travel: 150 mm / 5.9 in
Rear Suspension: WP monoshock
Rear Wheel Travel: 150 mm / 5.9 in
Front Brakes: Single 300 mm disc, 4 piston radial caliper
Rear Brakes: Single 230 mm disc, 1 piston floating caliper
Front Tyre: 110/70 - ZR17 M/C 54W TL, Metzeler SPORTEC MS
Rear Tyre: 150/70 - ZR17 M/C 66W TL, Metzeler SPORTEC MS
Steering Head Angle: 65°
Trail: 100 mm / 3.8 in
Seat Height: 800 mm / 31.4 in
Wheelbase: 1367 mm / 53.8 in
Ground Clearance: 172 mm / 6.8 in
Dry Weight: 139 kg / 306 lbs
GVWR: 335 kg / 739 lbs
Engine Oil Capacity: 1.6 L / 1.7 US qt / 1.4 Imp qt, SAE 15W/50
Fuel Capacity: 11 L / 2.9 US gal / 2.4 Imp gal
Fuel Reserve: 1.5 L / 1.6 US qt / 1.3 Imp qt
