KTM 360 EXC (1995-96) technical specifications

KTM 360 EXC technical specifications

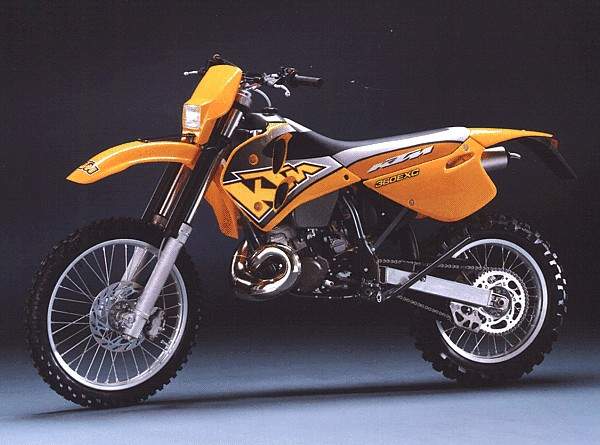

KTM 360 EXC is produced in 1995-96. Engine is Two stroke, single cylinder, displacement 353.7 cc / 21.6 cu in KTM 360 EXC weighs 113 kg / 249 lbs. KTM 360 EXC has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: 360 EXC
Years: 1995-96
Engine: Two stroke, single cylinder
Capacity: 353.7 cc / 21.6 cu in
Bore x Stroke: 78 x 74 mm
Cooling System: Liquid cooled
Fuel: 1:50 - 1.60 when using high grade two stroke oil
Ignition: KOKUSAN 2K-2
Starting: Kick
Spark Plug: NGK BR 8 ECM, Electrode gap 0.6 mm (0.024 in)
Clutch: Wet, multiplate
Transmission: 5 Speed
Final Drive: Chain
Primary Drive Ratio: 25:72
Gear Ratio: 1st 15:29 1 / 2nd 18:26 / 3rd 19:22 / 4th 21:20 / 5th 23:18
Final Drive Ratio: 14:52
Front Suspension: 43mm Upside down forks and shock
Front Wheel Travel: 125 mm / 4.9 in
Rear Suspension: Fully adjustable White Power
Rear Wheel Travel: 240 mm / 9.4 in
Front Brakes: Single disc
Rear Brakes: Single disc
Front Tyre: 90/90 - 21
Rear Tyre: 140/80 - 18
Dry Weight: 113 kg / 249 lbs
Fuel Capacity: 9 L / 2.4 US gal / 1.9 Imp gal
