KTM 350 EXC-F Enduro (2019-20) technical specifications

KTM 350 EXC-F Enduro technical specifications

KTM 350 EXC-F Enduro is produced in 2019-20. Engine is Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinde, displacement 349.7 cc / 21.3 cu in KTM 350 EXC-F Enduro weighs 104 kg / 229 lbs. KTM 350 EXC-F Enduro has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: 350 EXC-F Enduro
Years: 2019-20

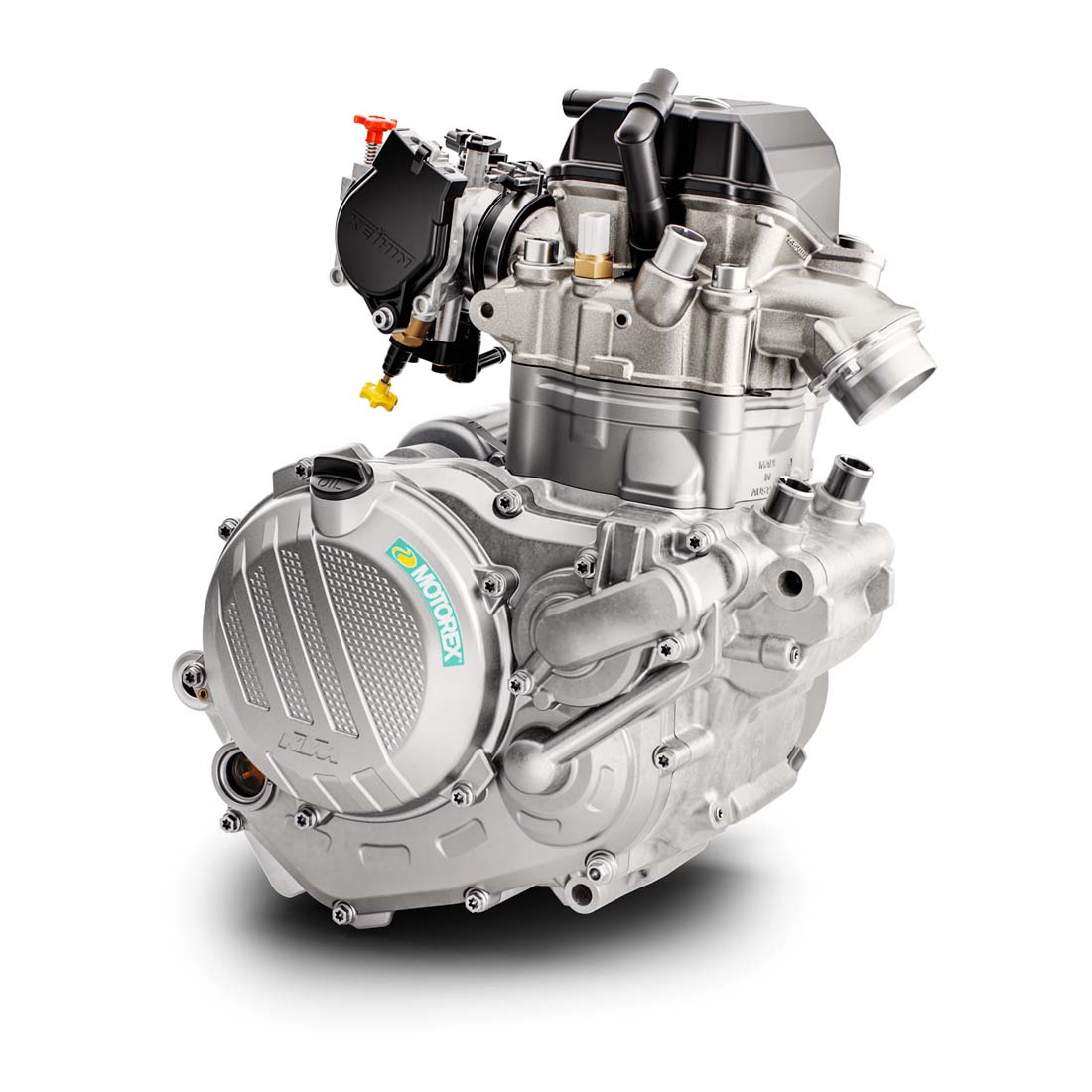

Engine: Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinde
Capacity: 349.7 cc / 21.3 cu in
Bore x Stroke: 88 x 57.5 mm
Compression Ratio: 12.3:1
Cooling System: Liquid cooled
Lubrication: Twin oil pumps
Induction: Keihin EFI, flow restrictor 42 mm
Spark Plug: NGK LMAR9AI-8
Ignition: Keihin EMS
Starting: Electric
Battery: YTX4L-BS, 12V 3Ah, maintenance free
Clutch: Wet, DDS multi-disc clutch, Brembo hydraulics
Transmission: 6 Speed
Final Drive: Chain, X-Ring 5/8 x 1/4″
Gear Ratios: 1st 14:32 / 2nd 16:26 / 3rd 20:25 / 4th 22:23 / 5th 25:22 / 6th 26:20
Primary Drive: 24:73
Final Drive Ratio: 14:52 (13:52)
Secondary Ratio: 14:52
Frame: Chrome-molybdenum steel central-tube frame
Front Suspension: WP Suspension Up Side Down 4860 MXMA PA
Front Wheel Travel: 300 mm / 11.8 in
Rear Suspension: WP Xplor PDS shock absorber
Rear Wheel Travel: 310 mm / 12.2 in
Front Brakes: Single 260 mm disc, 2 piston caliper
Rear Brakes: Single 220 mm disc, 1 piston caliper
Front Tyre: 90/90 - 21 M/C 54M M+S TT
Rear Tyre: 140/80 - 18 M/C 70M M+S TT
Steering Head Angle: 63.5°
Wheelbase: 1482 mm / 58.3 in
Seat Height: 960 mm / 37.7 in
Ground Clearance: 355 mm / 13.9 in
Dry Weight: 104 kg / 229 lbs
Fuel Capacity: 9 Litres / 2.3 US gal
