KTM 200 EXC (1999-2002) technical specifications

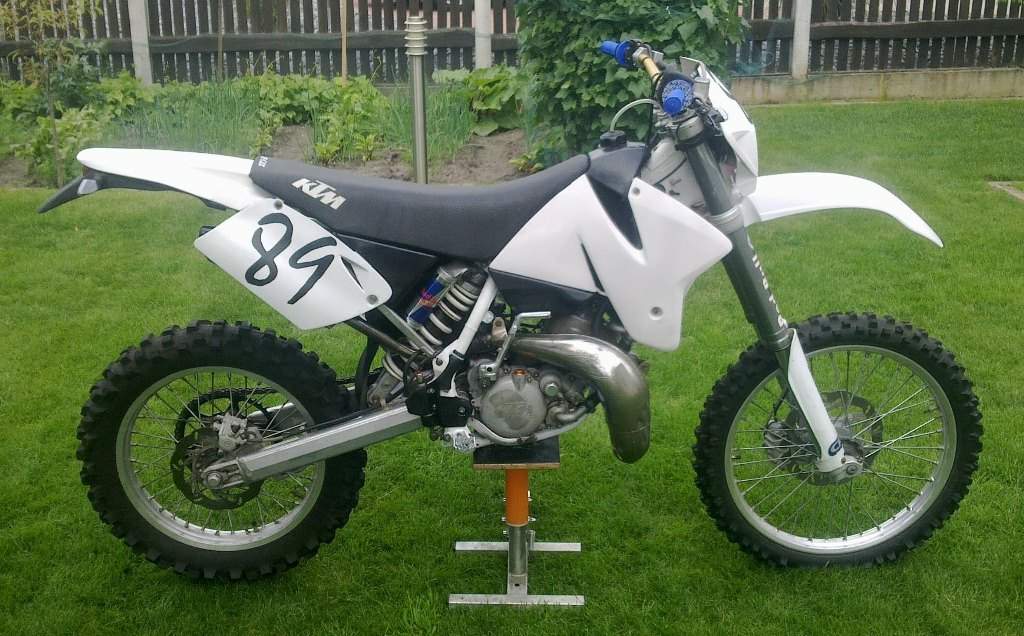

KTM 200 EXC is produced in 1999-2002. Engine is Single cylinder, 2-stroke, displacement 193 cc / 11.8 cu in KTM 200 EXC weighs 97 kg / 214 lbs. KTM 200 EXC has 2 photos.

Technical specifications

+ Add to 'Compare list'

Model:	200 EXC
Years:	1999-2002
Engine:	Single cylinder, 2-stroke
Capacity:	193 cc / 11.8 cu in
Bore x Stroke:	64 x 60 mm
Compression Ratio:	12.5:1
Cooling System:	Liquid cooled
Oil:	1:40 mixture, 2-stroke, Shell Racing X
Induction:	Keihin PWK 39 AGI flat slide
Spark Plug:	NGK BR8EG
Ignition:	Kokusan 2K-3 digital
Starting:	Kick
Clutch:	Wet, multi-plate, hydraulically operated
Transmission:	6 Speed
Primary Drive Ratio:	23/73
Gear Ratios:	1st 12:33 / 2nd 15:31 / 3rd 17:28 / 4th 19:26 / 5th 22:25 or 17:17 / 6th 22:20
Final Drive Ratio:	14/48
Final Drive:	Chain, 5/8 x 1/4"
Frame:	Central chrome-moly-steel frame
Front Suspension:	Marzocchi Magnum 45 fork
Front Wheel Travel:	285 mm / 11.2 in
Rear Suspension:	WP Progressive Damping System shock absorber, aluminium swingarm
Rear Wheel Travel:	320 mm / 12.6 in
Front Brakes:	Disc brake with carbon-steel brake disc Ø 260 mm (10.2 in), brake caliper floated
Rear Brakes:	Disc brake with carbon-steel brake disc Ø 220 mm (8.7 in), brake caliper floated
Front Tyre:	90/90 - 21" 54R
Rear Tyre:	120/90 - 18" 65R
Steering Head Angle:	63o
Wheelbase:	1461 mm / 57.3 in
Ground Clearance:	385 mm / 15.2 in
Seat Height:	925 mm / 36.4 in
Dry Weight:	97 kg / 214 lbs
Fuel Capacity:	9.5 L or 12 L / 2.5 US gal or 3.2 US gal / 2.1 Imp gal or 2.6 Imp gal
