KTM 1290 Super Duke RR (2023) technical specifications

KTM 1290 Super Duke RR is produced in 2023. Engine is Four stroke, 75° V-twin cylinder, DOHC, 4 valves per cylinder, displacement 1301 cc / 79.3 cu-in , produces power 132 kW / 180 hp and 140 Nm / 103 lb-ft. KTM 1290 Super Duke RR weighs 180 kg / 396.8 lbs. KTM 1290 Super Duke RR has 10 photos.

Technical specifications

+ Add to 'Compare list'

Model:	1290 Super Duke RR
Years:	2023
Production:	500 Units
Engine:	Four stroke, 75° V-twin cylinder, DOHC, 4 valves per cylinder
Capacity:	1301 cc / 79.3 cu-in
Bore x Stroke:	108 x 71 mm
Compression Ratio:	-
Cooling System:	Liquid cooled
Exhaust:	Akrapovič "slip-on line" exhaust system, Made from titanium with a carbon fiber end cap
Emission:	EURO5
Lubrication:	Forced oil lubrication with 3 oil pumps
Ignition:	Keihin EMS with RBW and cruise control, double ignition
Starting:	Electric
Max Power:	132 kW / 180 hp
Max Torque:	140 Nm / 103 lb-ft
Clutch:	PASC antihopping clutch, mechanically operated
Transmission:	6-speed
Final Drive:	525 X-Ring
Frame:	Chrome-moly tubular space frame, powder-coated
Subframe:	Carbon fiber
Front Suspension:	Fully adjustable WP APEX PRO 7548 close cartridge forks
Front Wheel Travel:	130 mm / 5.1 in

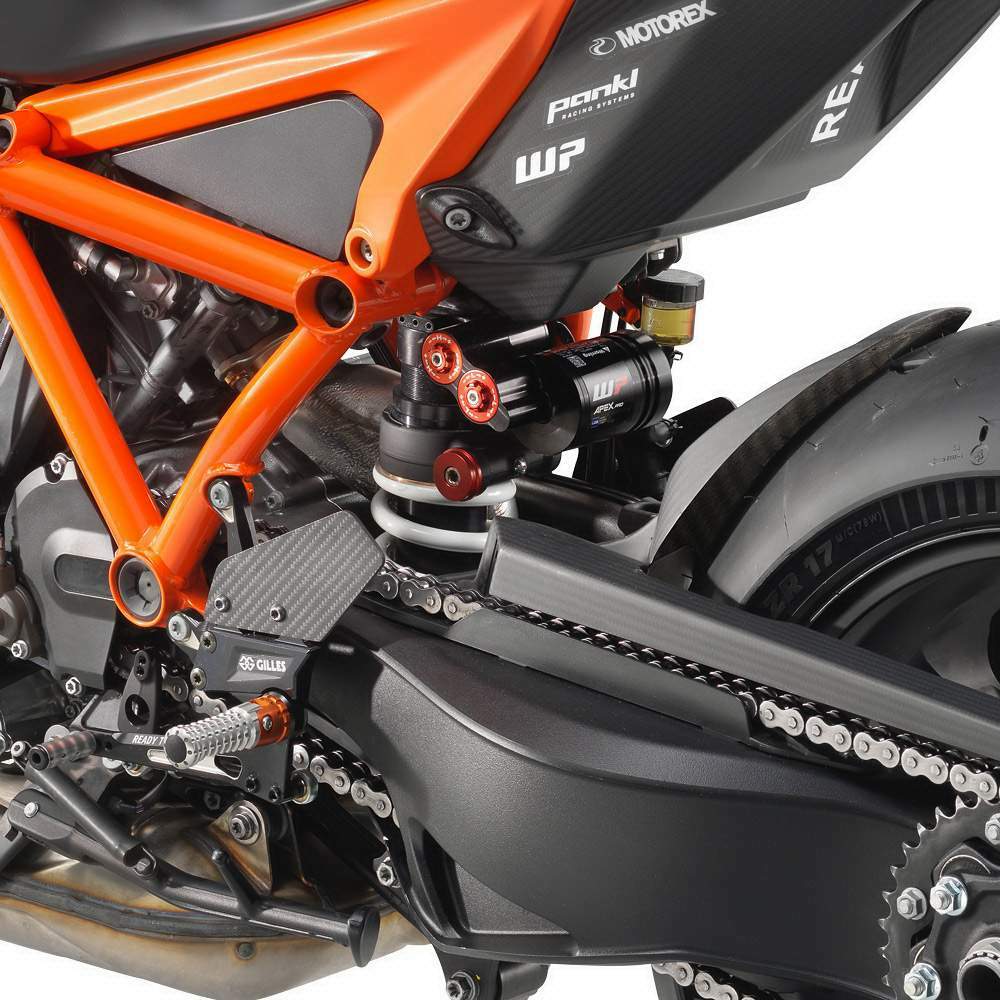

Rear Suspension:	WP APEX PRO 7746
Rear Wheel Travel:	140 mm / 5.5 in
Front Brakes:	2 x 320 mm Brembo Stylema Monobloc four piston, radially mounted caliper
Rear Brakes:	Single 240 mm Brembo twin-piston fixed calliper, brake disc
ABS System:	Bosch 9.1MP 2.0 (with cornering ABS and SUPERMOTO ABS)
Wheels:	7 spoke forged wheels
Front Rim:	3.5 x 17
Rear Rim:	6.00 x 17
Front Tyre:	Michelin Power Cup2
Rear Tyre:	Michelin Power Cup2
Steering Head Angle:	65.6°
Seat Height:	837 mm / 32.9 in
Ground Clearance:	160 mm / 6.2 in
Dry Weight:	180 kg / 396.8 lbs
Fuel Capacity:	16 Litres / 4.2 US gal
