KTM 1290 Super Duke GT (2016) technical specifications

KTM 1290 Super Duke GT technical specifications

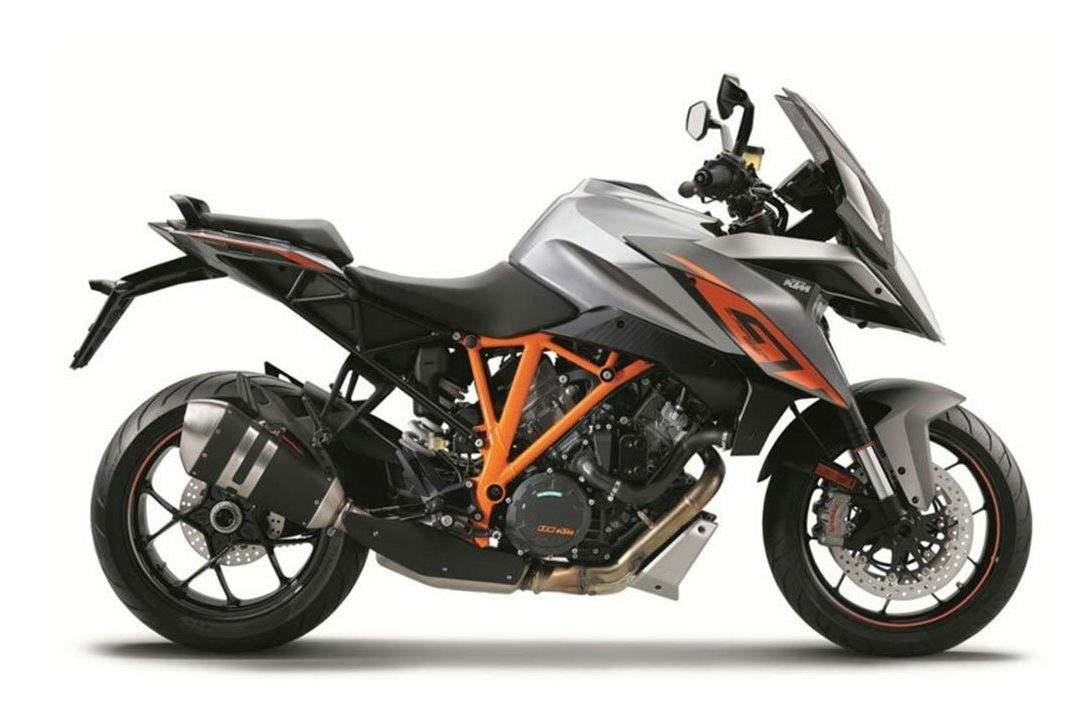

KTM 1290 Super Duke GT is produced in 2016. Engine is 75º V twin, 4 stroke, DOHC, 4 valve, displacement 1301 cc / 79.4 cu in , produces power 129 kW / 173 hp @ and 144 Nm / 14.68 kgf-m @. KTM 1290 Super Duke GT wet weight is 228 kg / 506 lbs. KTM 1290 Super Duke GT has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: 1290 Super Duke GT
Years: 2016
Engine: 75º V twin, 4 stroke, DOHC, 4 valve
Capacity: 1301 cc / 79.4 cu in
Bore x Stroke: 108 x 71 mm
Cooling System: Liquid cooling
Lubrication System: Pressure lubrication, 3 Eaton pumps
Induction: Keihin EFI, throttle body 56 mm
Ignition: Keihin EMS with RBW, dual ignition
Starting: Electric
Battery: 12V, 12 Ah
Max Power: 129 kW / 173 hp @
Max Torque: 144 Nm / 14.68 kgf-m @
Clutch: PASC slipper, hydraulically operated
Transmission: 6-Speed
Final Drive: Chain
Frame: Chrome-moly steel trellis
Front Suspension: WP Semi-Active, Ø 48 mm
Front Wheel Travel: 125 mm / 4.9 in
Rear Suspension: WP Semi-Active monoshock, single sided swingarm
Rear Wheel Travel: 156 mm / 6.1 in
Front Brakes: 320 mm Dual floating discs, Brembo M50 4-piston calipers, ABS
Rear Brakes: 240 mm Single disc, 2-piston Brembo caliper, ABS
Front Wheel: Aluminium, 3.50 x 17"
Rear Wheel: Aluminium, 6.00 x 17"
Front Tyre: 120/70 ZR17, Pirelli Angel GT
Rear Tyre: 190/55 ZR17, Pirelli Angel GT
Rake: 24.9º
Trail: 107 mm / 4.2 in
Wheelbase: 1482 mm ±15 mm / 58.34 in ±0.59 in
Ground Clearance: 140 mm / 5.5 in
Seat Height: 835 mm / 32.9 in
Wet Weight: 228 kg / 506 lbs
Fuel Capacity: 23 Litres / 6.1 US gal
