Kawasaki ZZR 1400 / Ninja ZX-14R (2012) technical specifications

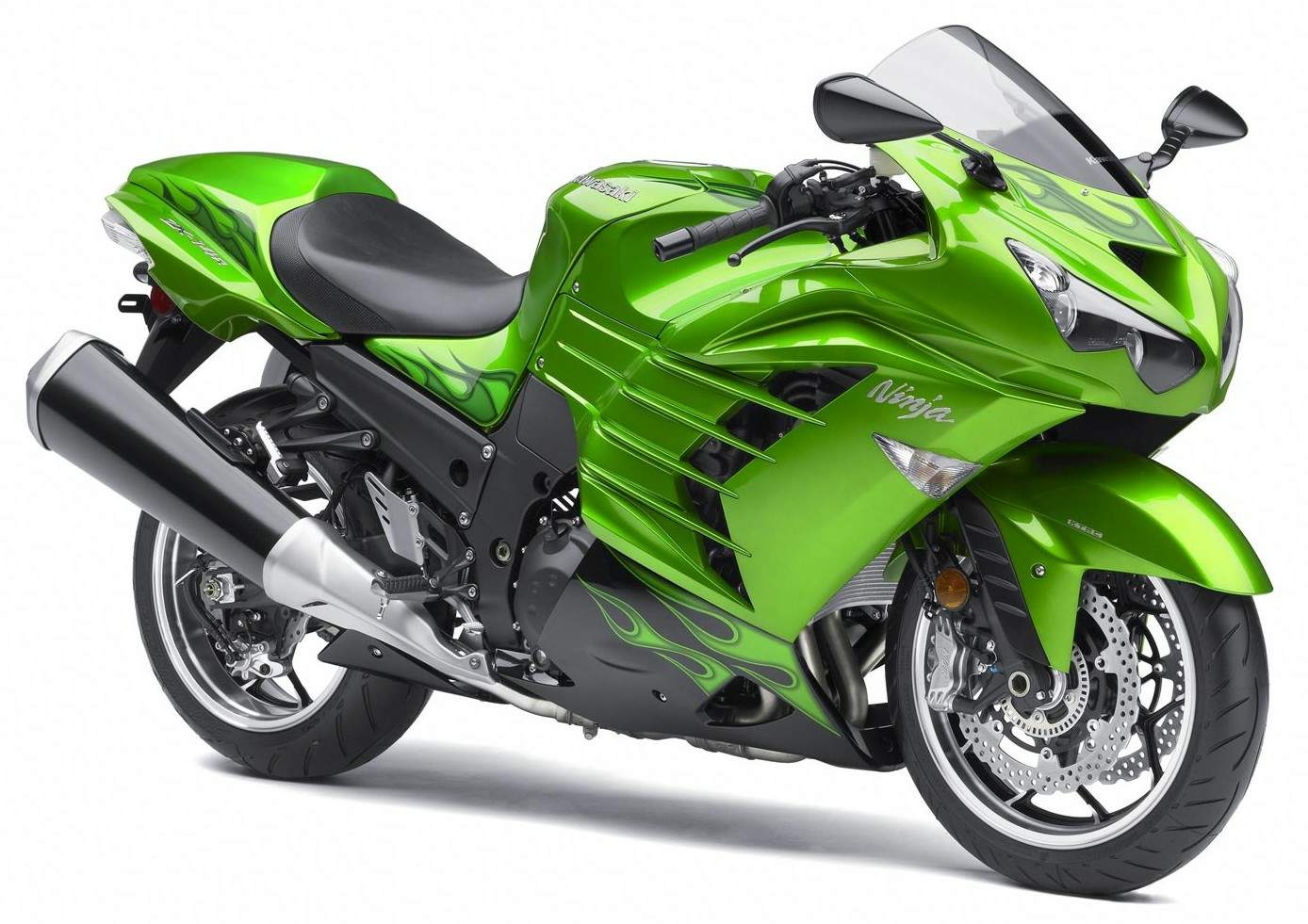

Kawasaki ZZR 1400 / Ninja ZX-14R technical specifications

Kawasaki ZZR 1400 / Ninja ZX-14R is produced in 2012. Engine is Four stroke, transverse four cylinders, DOHC, 4 valves per cylinder, displacement 1441 cc / 87.9 cu-in , produces power 149 kW / 200 hp @ 10500 rpm and 153.5 Nm / 113.2 lb-ft @ @ 7500 rpm. Kawasaki ZZR 1400 / Ninja ZX-14R wet weight is 264 kg / 584.3 lbs. Kawasaki ZZR 1400 / Ninja ZX-14R has 8 photos.

Technical specifications

+ Add to 'Compare list'
Model: ZZR 1400 / Ninja ZX-14R
Years: 2012
Engine: Four stroke, transverse four cylinders, DOHC, 4 valves per cylinder
Capacity: 1441 cc / 87.9 cu-in
Bore x Stroke: 84 x 65 mm
Compression Ratio: 12.3:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Induction: DFI® with four 44mm Mikuni throttle bodies
Ignition: TCBI with Digital Advance
Starting: Electric
Max Power: 149 kW / 200 hp @ 10500 rpm
Max Power Ram Air: 156.5 kW / 210 hp @ 10500rpm
Max Power Rear Tyre: 143.0 kW / 191.7 kW
Max Torque: 153.5 Nm / 113.2 lb-ft @ @ 7500 rpm
Clutch: Wet, multiple discs, hydraulic operated
Transmission: 6 Speed
Final Drive: X-Ring chain
Gear Ratio: 1st 2.611(47/18) 2nd 1.947 (37/19) 3rd 1.545 (34/22) 4th 1.333 (32/24) 5th 1.154 (30/26) 6th1.036 (29/28)
Frame: Aluminium, Monocoque frame
Front Suspension: 43mm inverted cartridge fork with adjustable preload, 18-way compression and 15-way rebound damping adjustment,
Front Wheel Travel: 116.8 mm / 4.6 in
Rear Suspension: Bottom-link Uni-Trak® and gas-charged shock with adjustable preload, stepless rebound and compression damping adjustments, adjustable ride height
Rear Wheel Travel: 124.5 mm / 4.9 in
Front Brakes: 2x 310mm discs 4 piston calipers
Rear Brakes: Single 250mm disc 2 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 190/50 ZR17
Rake: 23°
Trail: 93 mm / 3.7 in.
Dimensions: Length 2170 mm / 85.4 in. Width 770 mm / 30.3 in Height 1170 mm / 46.1 in.
Wheelbase: 1481 mm / 58.3 in.
Ground Clearance: 125 mm / 4.9 in
Seat Height: 800 mm / 31.5 in
Wet Weight: 264 kg / 584.3 lbs
Fuel Capacity: 21.9 Litres / 5.8 US gal
