Kawasaki ZZR 1400 / Ninja ZX-14 (2006) technical specifications

Kawasaki ZZR 1400 / Ninja ZX-14 technical specifications

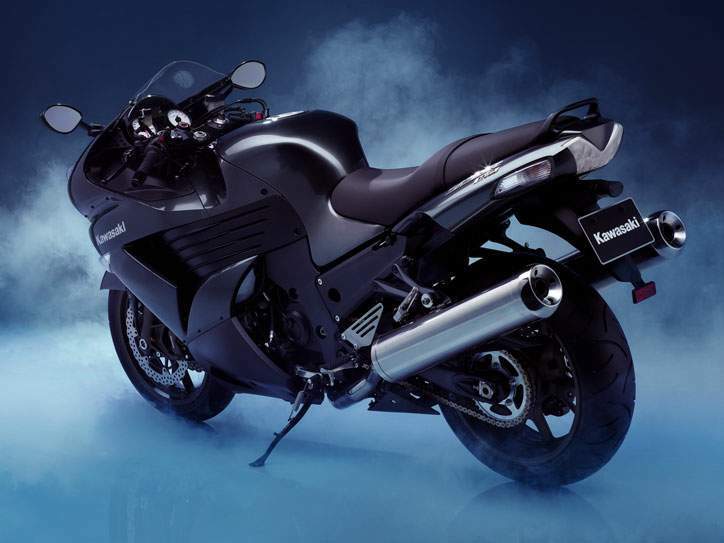

Kawasaki ZZR 1400 / Ninja ZX-14 is produced in 2006. Engine is Four stroke, transverse four cylinders, DOHC, 4 valves per cylinder, displacement 1352 cc / 82.5 cu-in , produces power 187 hp / 139.5 kW @ 9500 rpm and 136 Nm / 113.5 lb-ft @ 7500 rpm. Kawasaki ZZR 1400 / Ninja ZX-14 top speed is 303.6 km/h / 188.7 mph. Kawasaki ZZR 1400 / Ninja ZX-14 weighs 220 kg / 485 lbs. Kawasaki ZZR 1400 / Ninja ZX-14 has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: ZZR 1400 / Ninja ZX-14
Years: 2006
Engine: Four stroke, transverse four cylinders, DOHC, 4 valves per cylinder
Capacity: 1352 cc / 82.5 cu-in
Bore x Stroke: 84 x 65 mm
Compression Ratio: 12.0:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Induction: DFI® with four 44mm Mikuni throttle bodies
Ignition: TCBI with Digital Advance
Starting: Electric
Max Power: 187 hp / 139.5 kW @ 9500 rpm
Max Power Ram Air: 197 hp / 147 kW @ 9500 rpm
Max Torque: 136 Nm / 113.5 lb-ft @ 7500 rpm
Max Power Rear Tyre: 170.2 hp / 126.9 kW
Clutch: Wet, multiple discs, hydraulic operated
Transmission: 6 Speed
Final Drive: X-Ring chain
Gear Ratio: 1st 2.611(47/18) 2nd 1.947 (37/19) 3rd 1.545 (34/22) 4th 1.333 (32/24) 5th 1.154 (30/26) 6th1.036 (29/28)
Frame: Aluminium, Monocoque frame
Front Suspension: 43mm inverted cartridge fork with adjustable preload, 18-way compression and 15-way rebound damping adjustment,
Front Wheel Travel: 116.8 mm / 4.6 in
Rear Suspension: Bottom-Link Uni-Trak® and gas-charged shock with adjustable preload, stepless rebound and compression damping adjustments, adjustable ride height,
Rear Wheel Travel: 121.9 mm / 4.8 in
Front Brakes: 2x 310mm discs 4 piston calipers
Rear Brakes: Single 250mm disc 2 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 190/50 ZR17
Rake: 23°
Trail: 94 mm / 3.7 in.
Dimensions: Length 2170 mm / 85.4 in Width 760 mm / 29.9 in Height 1180 mm / 46.1 in
Wheelbase: 1461 mm / 57.5 in.
Seat Height: 800 mm / 31.5 in
Ground Clearance: 125 mm / 4.9 in
Dry Weight: 220 kg / 485 lbs
Wet Weight: 257 kg / 566.7 lbs
Fuel Capacity: 22 Litres / 5.8 US gal
Standing ¼ Mile: 10.3 sec
Standing 0 - 100km: 2.9 sec
Standing 0 - 140km: 4.8 sec
Standing 0 - 200km: 7,8 sec
Acceleration 60-140 km/h: 7.5 sec
Acceleration 100 - 140 km/h: 3.5 sec
Acceleration 140 - 180 km/h: 3.8 sec
Top Speed: 303.6 km/h / 188.7 mph
