Technical specifications
|

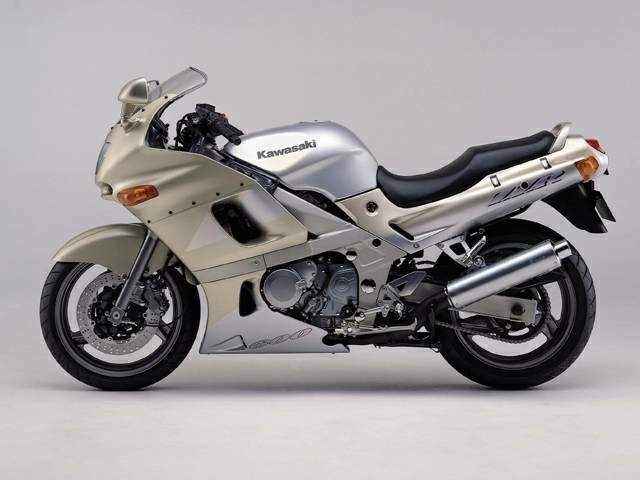

| Model: |
ZZ-R 600 |
| Years: |
1998-99 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
|
|
Capacity:
|
599 cc / 42.6 cu-in
|
|
Bore x Stroke:
|
64 x 46.6 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
12.0:1
|
|
Induction:
|
4x Keihin CVKD 36 carburetors
|
|
Ignition:
|
Digital
|
|
Starting:
|
Electric
|
|
Max Power:
|
98 hp / 72.9 kW @ 11.500 rpm
|
|
Max Power Rear Tyre:
|
87.0 hp / 64.8 kW @ 11600 rpm
|
|
Max Torque:
|
64 Nm / 47.2 lb-ft @ 9500 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Aluminum perimeter design
|
|
Front Suspension:
|
41mm hydraulic fork with preload and 4-way rebound damping adjustment
|
|
Rear Suspension:
|
UNI-TRAC with threaded preload adjustment and 3-way rebound damping
|
|
Front Brakes:
|
2x 300mm discs 4 piston calipers
|
|
Rear Brakes:
|
Single 240mm disc 1 piston caliper
|
|
Front Tyre:
|
120/60 ZR1 7
|
|
Rear Tyre:
|
160/60 ZR17
|
|
Dimensions:
|
Length 2029 mm / 79.9 in Width 728 mm / 28.7 in Height 1176 mm / 46.3 in
|
|
Wheelbase:
|
1399 mm / 55.1 in
|
|
Seat Height:
|
780 mm / 31.0 in
|
|
Dry Weight:
|
198 kg / 136.5 lbs
|
|
Wet Weight:
|
216 kg / 476.1 lbs
|
|
Fuel Capacity:
|
18 Litres / 4.7 US gal
|
|
Consumption Average:
|
18.5 km/lit
|
|
Braking 60 - 0 / 100 - 0:
|
13.8 m / 36.3 m
|
|
Standing ¼ Mile:
|
10.9 sec / 197.7 km/h
|
|
Top Speed:
|
246.9 km/h / 153.4 mph
|
