Technical specifications
|
| Model: |

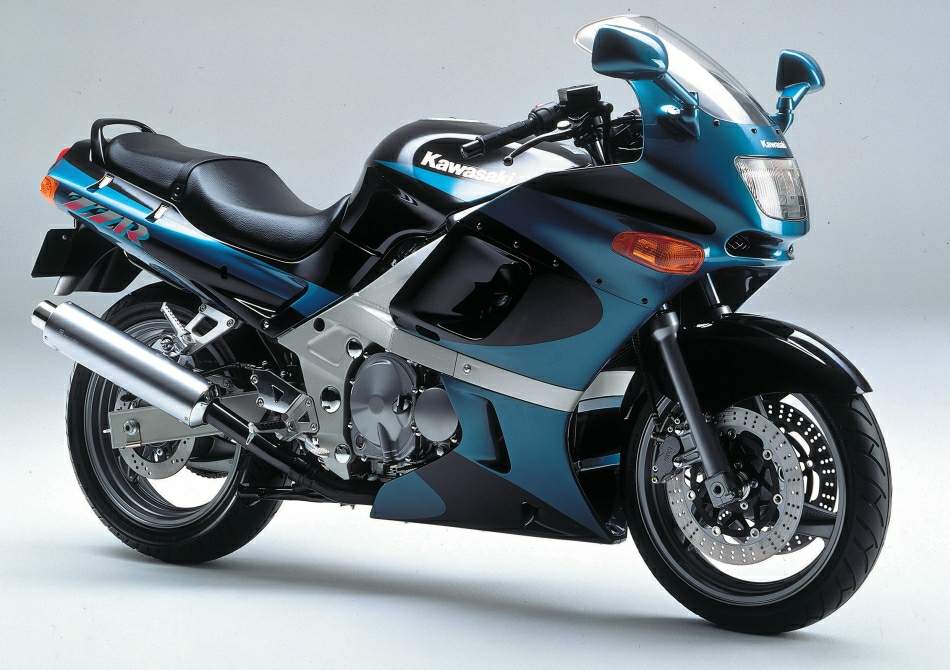

ZZ-R 400 |
| Years: |
1992-93 |
|
Engine:
|
Liquid cooled, four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
|
|
Capacity:
|
398 cc / 24.3 cu-in
|
|
Bore x Stroke:
|
57.5 x 38.5 mm
|
|
Compression Ratio:
|
11.8:1
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
4x Keihin CVK30 carburetors
|
|
ignition:
|
Digital
|
|
Starting:
|
Electric
|
|
Max Power:
|
58 hp / 43.2 kW @ 12000 rpm
|
|
Max Torque:
|
3.7 kgf-m / 26.7 lb-ft @ 10000 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
41mm Telescopic forks
|
|
Rear Suspension:
|
Rising rate monoshock
|
|
Front Brakes:
|
2x 300mm discs 4 piston calipers
|
|
Rear Brakes:
|
Single 240mm disc 1 piston caliper
|
|
Front Tyre:
|
120/60-17
|
|
Rear Tyre:
|
160/60-17
|
|
Wheelbase:
|
1430 mm / 56.3 in
|
|
Seat Height:
|
780 mm / 30.7 in
|
|
Dry Weight:
|
197 kg / 434.3 lbs
|
|
Fuel Capacity:
|
16 Litres / 4.7 US gal
|
