Kawasaki ZX-R 750-L (1993) technical specifications

Kawasaki ZX-R 750-L technical specifications

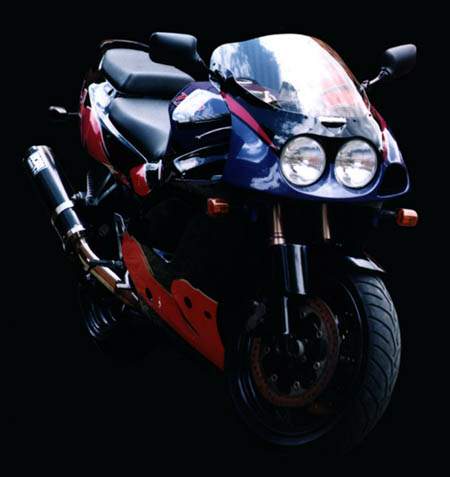

Kawasaki ZX-R 750-L is produced in 1993. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 749 cc / 45.7 cu-in , produces power 118 hp / 86 kW @ 10500 rpm and 7.51 kgf-m / 54.3 lb-ft @ 9750 rpm. Kawasaki ZX-R 750-L top speed is 258.1 km/h / 160.3 mph. Kawasaki ZX-R 750-L weighs 205 kg / 451.9 lbs. Kawasaki ZX-R 750-L has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: ZX-R 750-L
Years: 1993
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity: 749 cc / 45.7 cu-in
Bore x Stroke: 71 x 47.3 mm
Cooling System: Liquid cooled
Compression Ratio: 10.8:1
Lubrication: Wet sump
Engine Oil: 10W/40
Induction: 4x 38 mm Keihin CVKD (Constant Velocity) carburettors / Ram Air System (single intake)
Ignition: Digital
Spark Plug: NGK, CR9E
Starting: Electric
Max Power: 118 hp / 86 kW @ 10500 rpm
Max Torque: 7.51 kgf-m / 54.3 lb-ft @ 9750 rpm
Clutch: Multi plate wet (oil submerged) hydraulic ‘slipper’ clutch
Transmission: 6 Speed
Final Drive: Chain
Frame: Aluminium perimeter
Front Suspension: 41mm Upside-down forks, adjustable ride height, 13-way rebound
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Unit Track monoshock. adjustable ride height, preload, 4-way rebound
Rear Wheel Travel: 135 mm / 5.1 in
Front Brakes: 2x 320mm discs 4 piston calipers
Rear Brakes: Single 230mm disc 2 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55ZR17 /Std Pressure 41psi
Rake: 25°
Trail: 99 mm / 4.0 in
Wheelbase: 1430 mm / 55.9 in
Dry Weight: 205 kg / 451.9 lbs
Wet Weight: 221.6 kg / 487.2 lbs
Fuel Capacity: 18 Litres / 4.7 US gal
Consumption Average: 16.3 km/lit
Braking 60 - 0 / 100 - 0: 13.8 m / 38.1 m
Standing ¼ Mile: 10.7 sec / 207.2 km/h
Top Speed: 258.1 km/h / 160.3 mph
Road Test: Motociclismo 1989 Motosprint Group Test 1993
