Kawasaki ZX-R 750-H2 (1990) technical specifications

Kawasaki ZX-R 750-H2 technical specifications

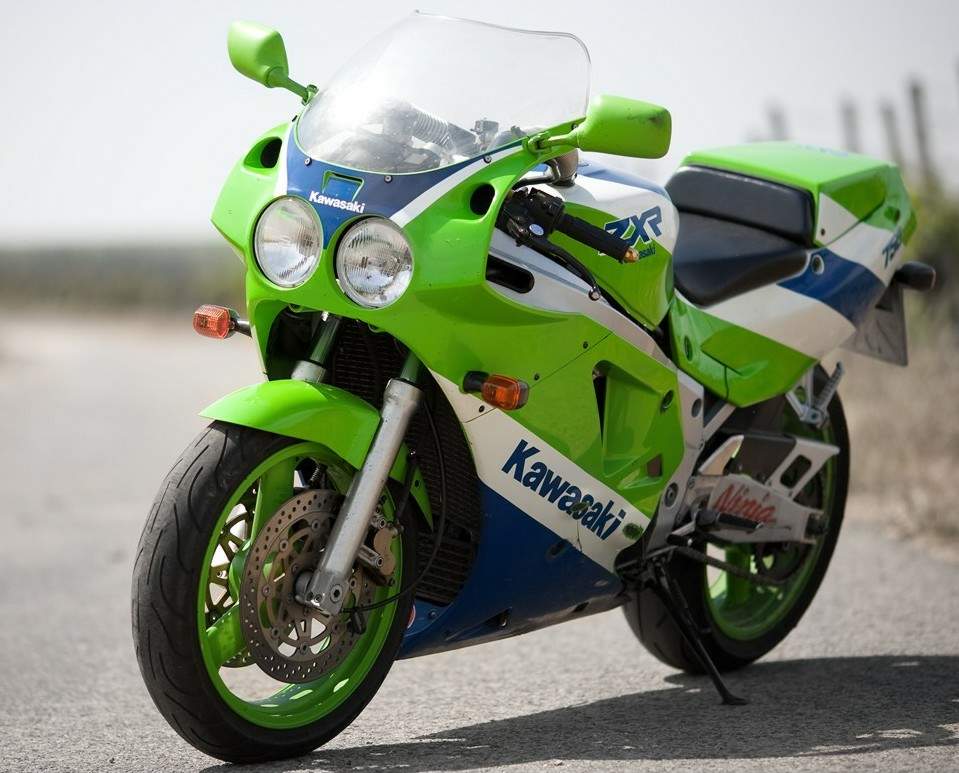

Kawasaki ZX-R 750-H2 is produced in 1990. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 749 cc / 45.7 cu-in , produces power 107 hp / 79.7 kW @ 10500rpm and 6.76Kgm / 48.8 lb-ft @ 9000rpm. Kawasaki ZX-R 750-H2 top speed is 245.7 km/h / 152.6 mph. Kawasaki ZX-R 750-H2 weighs 200 kg / 440.8 lbs. Kawasaki ZX-R 750-H2 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: ZX-R 750-H2
Years: 1990
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity: 749 cc / 45.7 cu-in
Bore x Stroke: 68 x 51.5 mm
Cooling System: Liquid cooled
Compression Ratio: 10.8:1
Lubrication: Wet sump
Engine Oil: 10W/40
Induction: 4x 38 mm Keihin CVKD (Constant Velocity) carburettors
Ignition: Digital
Spark Plug: NGK, CR9E
Starting: Electric
Max Power: 107 hp / 79.7 kW @ 10500rpm
Max Power Rear Tyre: 94.1hp / 70.1 kW @ 10400 rpm
Max Torque: 6.76Kgm / 48.8 lb-ft @ 9000rpm
Clutch: Multi plate wet (oil submerged) hydraulic
Transmission: 6 Speed
Final Drive: Chain
Frame: Aluminium perimeter
Front Suspension: 43mm Telescopic forks. adjustable preload and 12-way rebound damping,
Front Wheel Travel: 140 mm / 5.2 in
Rear Suspension: Uni Track monoshock. adjustable preload and 4-way rebound damping, 140mm wheel travel.
Front Brakes: 2x 310mm discs 4 piston calipers
Rear Brakes: Single 230mm disc 2 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 170/60 ZR17
Rake: 24.5°
Trail: 100 mm / 4.0 in
Wheelbase: 1455 mm / 57.2 in
Dry Weight: 200 kg / 440.8 lbs
Fuel Capacity: 18 Litres / 4.7 US gal
Consumption Average: 17.6 km/lit
Braking 60 - 0 / 100 - 0: 13.3 m / 37.5 m
Standing ¼ Mile: 10.9 sec / 201.3 km/h
Top Speed: 245.7 km/h / 152.6 mph
Road Tests: Motociclismo 1989 Motosprint Group Test 1988 Motosprint Group Test 1989 Motosprint Group Test 1990 Motosprint Superbike Group Test 1991
