Kawasaki ZX-9R Ninja (1996) technical specifications

Kawasaki ZX-9R Ninja technical specifications

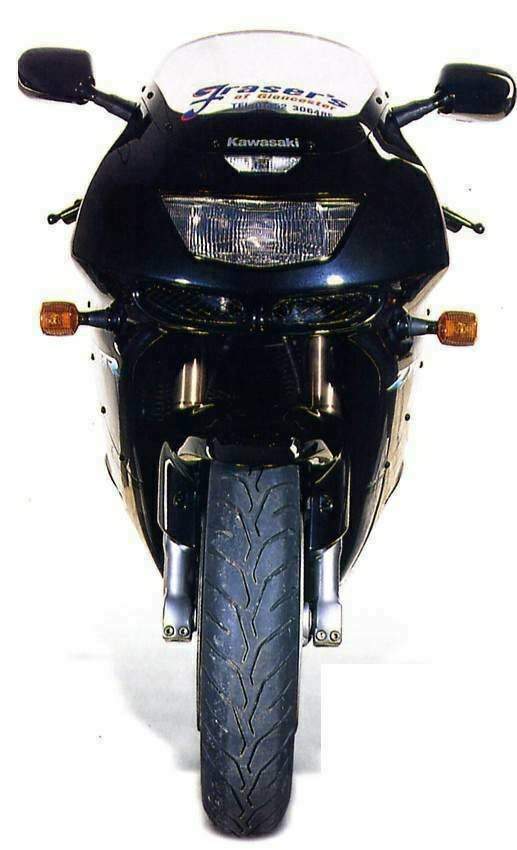

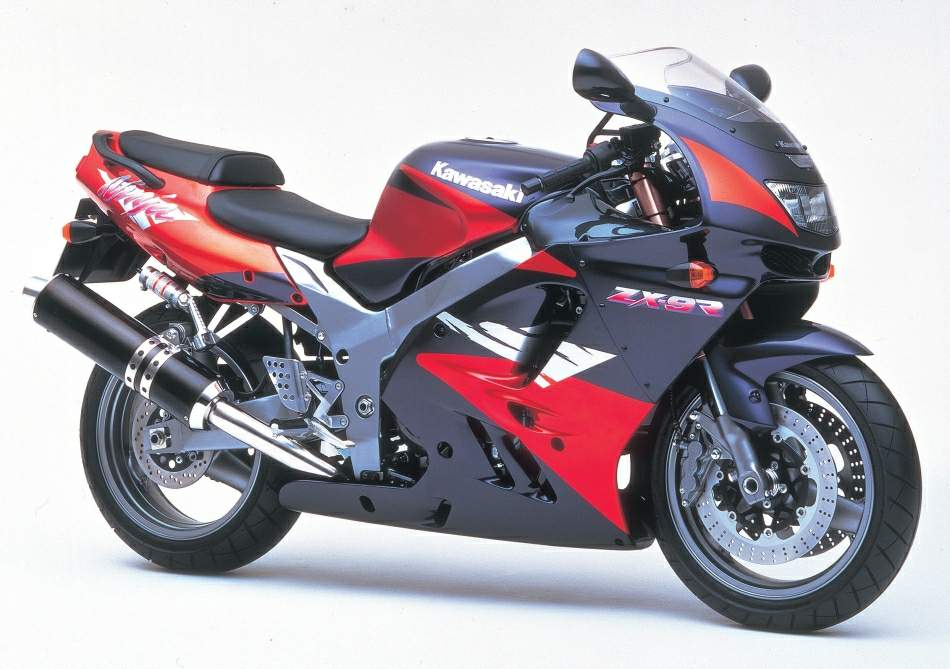

Kawasaki ZX-9R Ninja is produced in 1996. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 899 cc / 54.8 cu-in , produces power 141 hp / 105.1 kW @ 10500 rpm and 94 Nm / 69.4 lb-ft @ 9000 rpm. Kawasaki ZX-9R Ninja top speed is 268.7 km/h / 167 mp/h. Kawasaki ZX-9R Ninja weighs 216 kg / 477 lbs. Kawasaki ZX-9R Ninja has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: ZX-9R Ninja
Years: 1996
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity: 899 cc / 54.8 cu-in
Bore x Stroke: 73 x 53.7 mm
Cooling System: Liquid cooled
Compression Ratio: 11.5:1
Induction: 4x 40mm Keihin CVKD carburetors
Ignition: Digital with Kawasaki Throttle Responsive Ignition Control (K-TRIC)
Starting: Electric
Max Power: 141 hp / 105.1 kW @ 10500 rpm
Max Torque: 94 Nm / 69.4 lb-ft @ 9000 rpm
Transmission: 6 Speed
Final Drive: Chain
Frame: Aluminum twin-spar
Front Suspension: 43 mm upside-down KYB fully adjustable, adjustable compression, rebound and preload.
Rear Suspension: Uni-Trak adjustable compression, rebound and preload.
Front Brakes: 2x 310mm discs 4 piston calipers
Rear Brakes: Single 210mm disc 1 piston caliper
Front Tyre: 120/70 ZR7
Rear Tyre: 180/55 ZR17
Rake: 24°
Trail: 97 mm / 3.8 in
Wheelbase: 1410 mm / 55.7 in
Seat Height: 800 mm / 31.5 in
Dry Weight: 216 kg / 477 lbs
Wet Weight: 242 kg / 533 lbs
Fuel Capacity: 20 Litres / 5.0 US gal
Consumption Average: 34.5 mp/g
Standing ¼ Mile: 10.9 sec / 131 mp/g
Top Speed: 268.7 km/h / 167 mp/h
