Kawasaki ZX-6R Ninja (2024) technical specifications

Kawasaki ZX-6R Ninja technical specifications

Kawasaki ZX-6R Ninja is produced in 2024. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 636 cc / 38.8 cub in , produces power NA and NA. Kawasaki ZX-6R Ninja wet weight is 197 kg / 434.4.0 lbs. Kawasaki ZX-6R Ninja has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: ZX-6R Ninja
Years: 2024
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 636 cc / 38.8 cub in
Bore x Stroke: 67.0 x 45.1mm
Compression Ratio: 12.9:1
Cooling System: Liquid cooled
Induction: DFI with four 38mm Keihin throttle bodies and oval sub-throttles
Lubrication: Forced lubrication, wet sump
Ignition: TCBI with digital advance
Electronic Rider Aids: Kawasaki TRaction Control (KTRC), Power Modes (Full/Low), Kawasaki Intelligent anti-lock Brake System (KIBS), Kawasaki Quick Shifter (KQS) (upshift only)
Starting: Electric
Max Power: NA
Max Torque: NA
Clutch: Wet multi-disc, manual
Transmission: 6 Speed
Final Drive: 520 series X-ring chain
Frame: Tubular, diamond frame
Front Suspension: 41mm inverted Showa BP-SFF fork with rebound and compression damping and spring preload adjustability, and top-out springs
Rear Wheel Travel: 150 mm / 5.9 in
Rear Suspension: Bottom-link Uni-Trak with Bottom-link Uni-Trak® with gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustabilityd

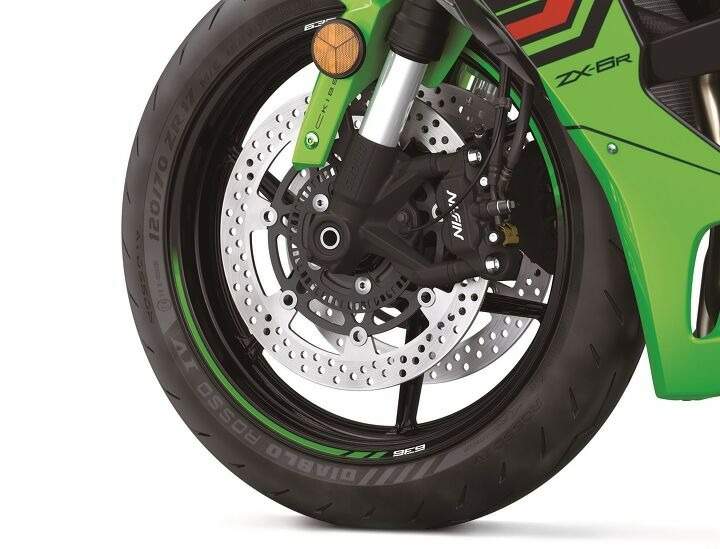

Front Brakes: 2 x 310mm discs with dual radial-mounted, monobloc, opposed 4-piston caliper (and KIBS ABS)
Rear Brakes: Single 220mm petal rotor with single-piston caliper and KIBS ABS
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Rake: 23.5°
Trail: 103 mm / 4.0 in
Dimensions: Length 2024 mm / 79.7 in Width 711 mm / 28 in Height 1100 mm / 43.3 in
Wheelbase: 1400 mm / 55.1 in
Seat Height: 830.5 mm / 32.7 in
Ground Clearance: 129.5 mm / 5.1 in
Wet Weight: 197 kg / 434.4.0 lbs
Fuel Capacity: 17 Litres 4.5 US gal
