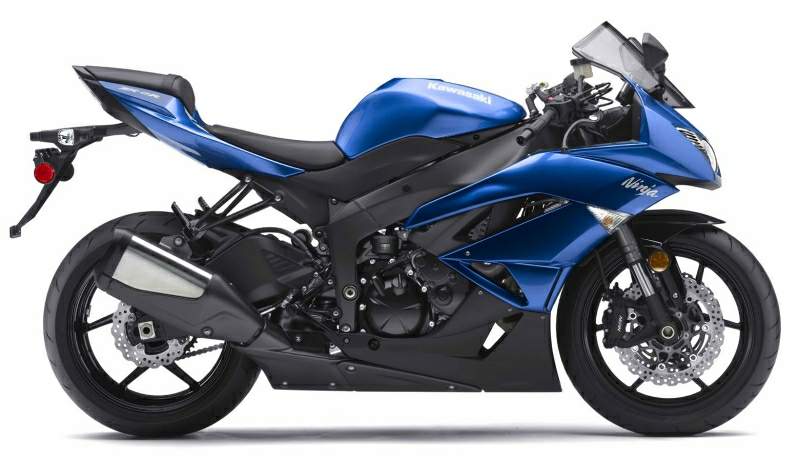

Kawasaki ZX-6R (2009) technical specifications

Kawasaki ZX-6R technical specifications

Kawasaki ZX-6R is produced in 2009. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 599 cc / 36.6 cub in , produces power 94.1 kW / 128 hp @ 14000 rpm and 66.7 Nm / 6.8 kgf-m / 49.2 lb-ft @ 11800 rpm. Kawasaki ZX-6R top speed is 257.8 km/h / 160.2 mph. Kawasaki ZX-6R wet weight is 191 kg / 421 lbs. Kawasaki ZX-6R has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: ZX-6R
Years: 2009
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 599 cc / 36.6 cub in
Bore x Stroke: 67 x 42.5mm
Compression Ratio: 13.3:1
Cooling System: Liquid cooled,
Induction: DFI® with four 38mm Keihin throttle bodies, oval sub-throttles, two injectors per throttle body
Ignition: TCBI with digital advance
Starting: Electric
Max Power: 94.1 kW / 128 hp @ 14000 rpm
Max Power Ram Air: 98.5 kW / 134 hp @ 14000 rpm
Max Torque: 66.7 Nm / 6.8 kgf-m / 49.2 lb-ft @ 11800 rpm
Clutch: Wet multi-disc, manual
Transmission: 6 Speed
Final Drive: Sealed Chain
Gear Ratios: 1st 2.714 (38/14) / 2nd 2.200 (33/15) / 3rd 1.850 (37/20) / 4th 1.600 (32/20) / 5th 1.421 (27/19) / 6th 1.300 (26/20) Final reduction ratio 2.688 (43/16)
Primary Reduction Ratio: 1.900 (76/40)
Frame: Aluminum perimeter
Front Suspension: 41 mm inverted Showa Big Piston Front fork with top-out springs, stepless compression and rebound damping, fully-adjustable spring preload,
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Bottom-Link Uni-Trak® with gas-charged shock, top-out spring and pillow ball upper mount, dual-range (high/low-speed) stepless compression damping, 25-way adjustable rebound damping, fully-adjustable spring preload
Rear Wheel Travel: 134 mm / 5.2 in.
Front Brakes: 2x 300mm discs, 4 piston calipers
Rear Brakes: Single 220mm disc, 1 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Rake: 24°
Trail: 102 mm / 4.0 in.
Dimensions: Length 2090 mm / 2.3 in Width 705 mm / 28.0 in Height 1115 mm /43.9 in
Wheelbase: 1400 mm / 5.1 in
Ground Clearance: 120 mm / 4.72 in
Seat Height: 815 mm / 32.3 in.
Wet Weight: 191 kg / 421 lbs
Fuel Capacity: 17 Litres / 4.5 US gal
Consumption Average: 5.3 L/100 km / 18.9 km/l 44.5 US mpg
Standing ¼ Mile: 11.1 sec
Top Speed: 257.8 km/h / 160.2 mph
