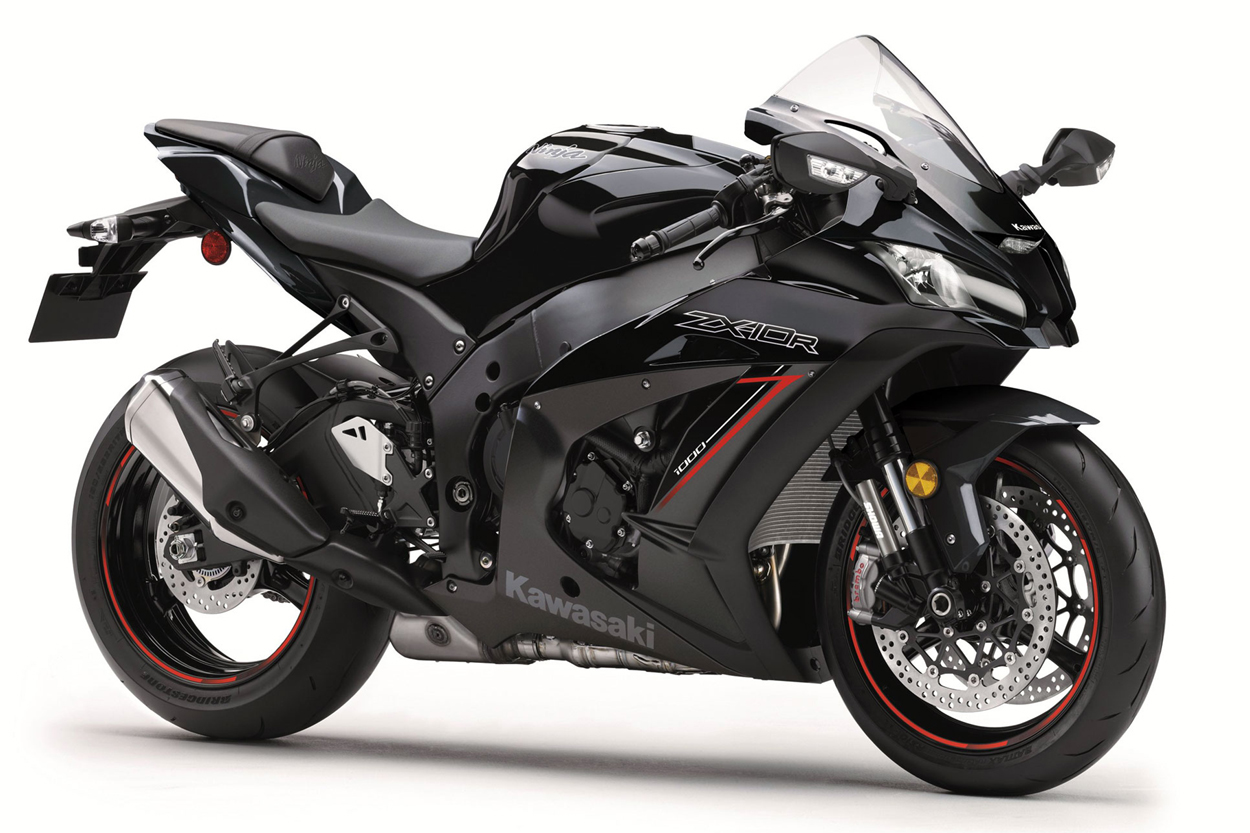

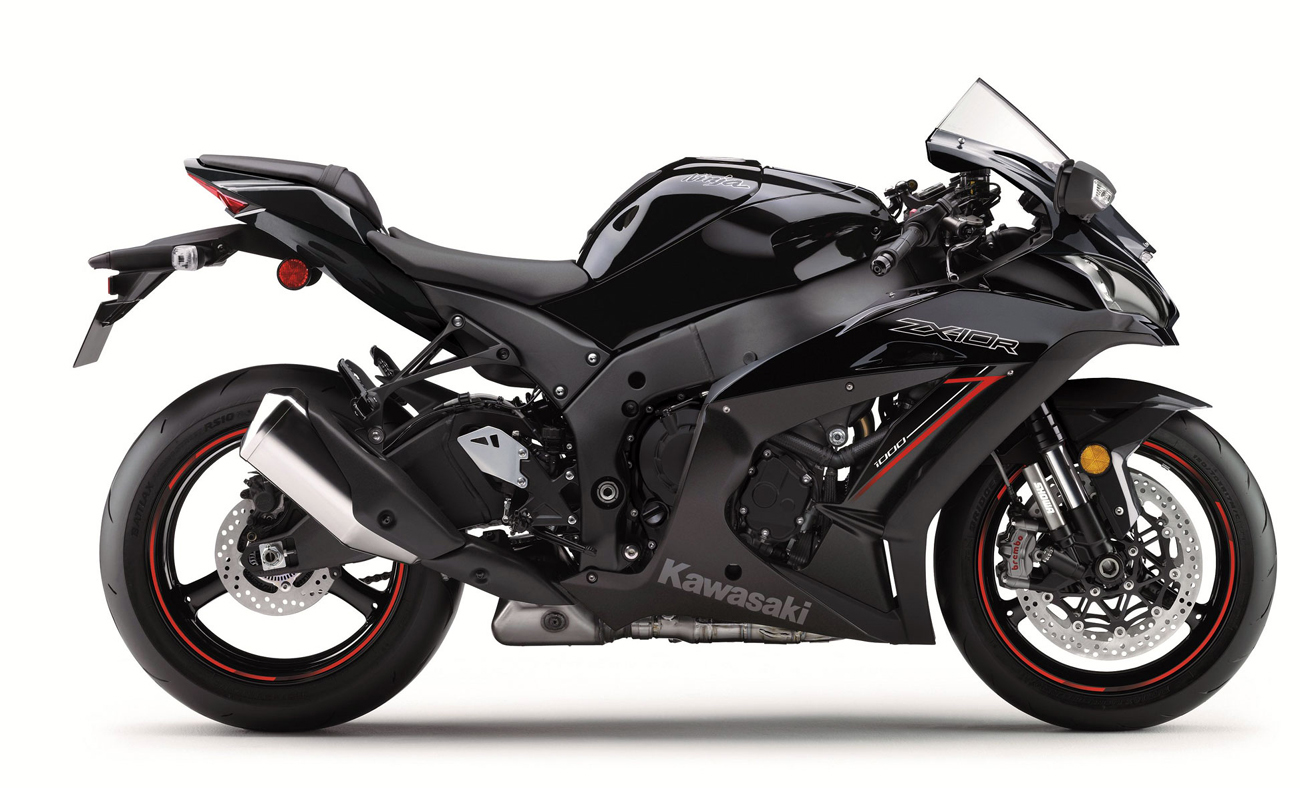

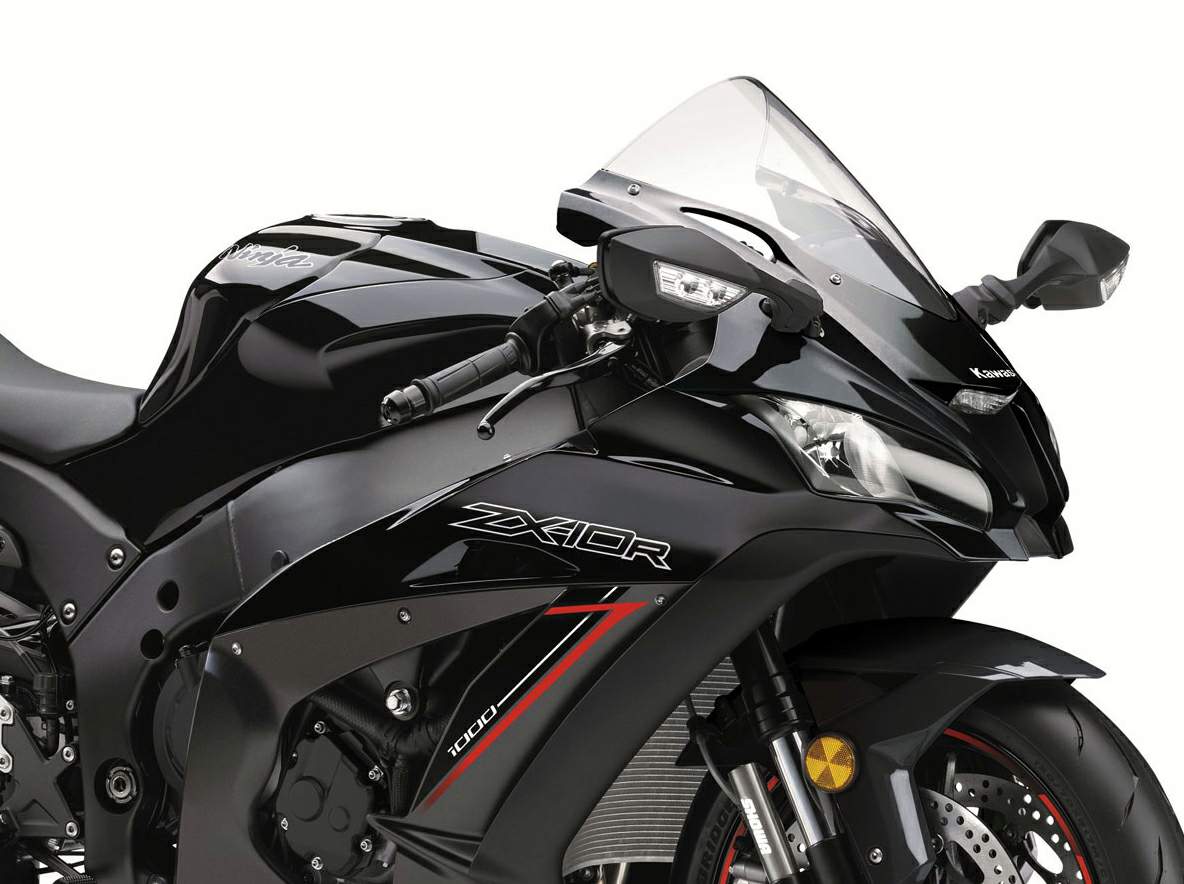

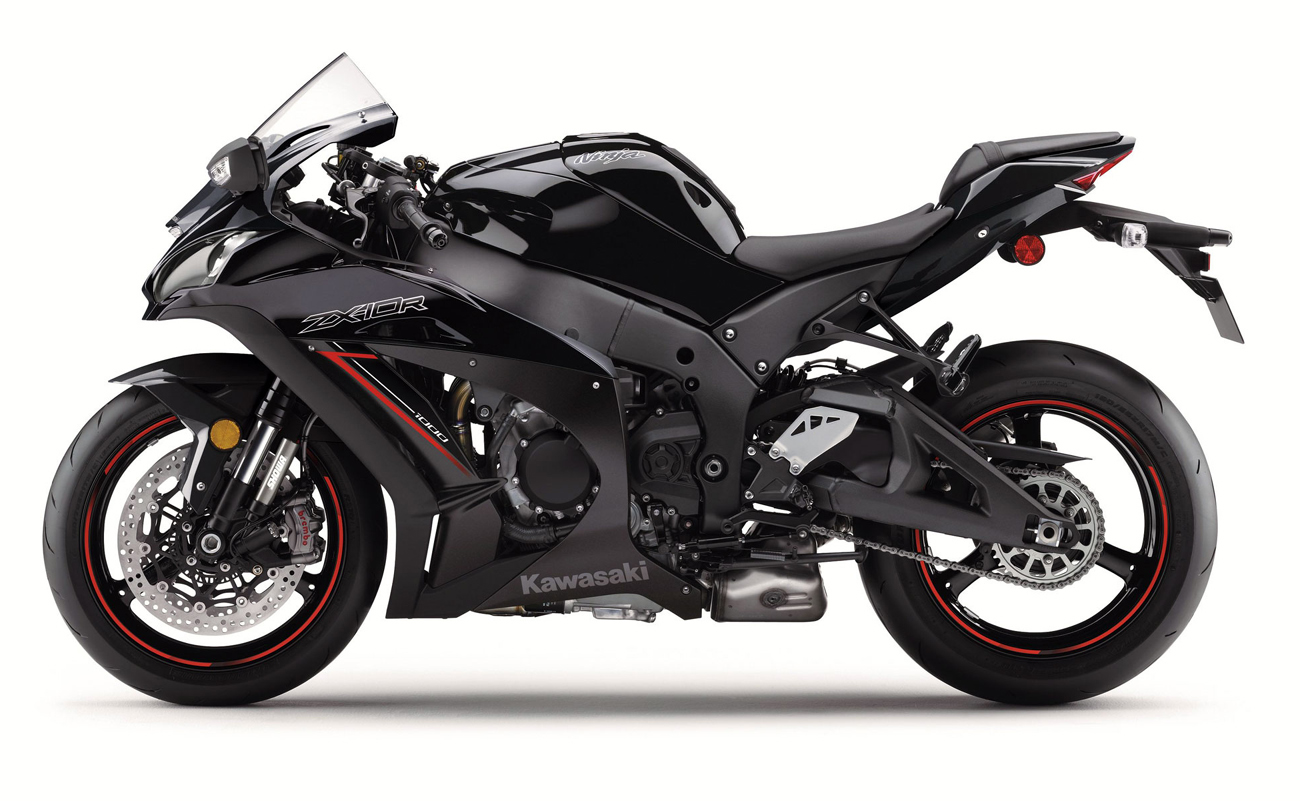

2020 Kawasaki ZX-10R Ninja technical specifications

Kawasaki ZX-10R Ninja technical specifications

Technical specifications

Model: ZX-10R Ninja
Years: 2020
Engine: Four stroke, transverse fourcylinder, DOHC, 4 valves per cylinder
Capacity: 998 cc / 60.9 cu-in
Bore x Stroke: 76.0 x 55.0 mm
Compression Ratio: 13.0:1
Cooling System: Liquid cooled
Lubrication: Forced lubrication, wet sump withoil cooler
Induction: Fuel injection: Ø 47 mmx 4 with dual injection
Ignition : TCBI with digital advance andSport-Kawasaki Traction Control (S-KTRC)
Starting: Electric
Max Power: 149.3 kW / 203 hp @ 13500rpm
Max Power Ram Air: 156.8 kW / 213 hp @ 13500rpm
Max Torque: 114.9 Nm / 84.7 lb-ft @ 11200rpm
Clutch: Wet multi-disc, manual
Transmission : 6-speed, return,cassette
Final Drive: Sealed Chain
Primary Reduction Ratio: 1.681 (79/47)
Gear Ratio: 1st 2.600 (39/15) 2nd 2.222 (40/18)3rd 1.944 (35/18) 4th 1.722 (31/18) 5th 1.550 (31/20) 6th 1.391(32/23)
Final Reduction Ratio: 2.294 (39/17)
Frame: Twin spar, cast aluminium
Front Suspension: 43 mminverted Balance Free Front Fork with external compression chamber,compression and rebound damping and spring preload adjustability,and top-out springs.
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Horizontal Back-link with BFRC lite gas-chargedshock with piggyback reservoir, compression and rebound damping andspring preload adjustability, and top-out spring
Rear Wheel Travel: 114 mm / 4.5 in
Front Brakes: 2x 330 mm semi-floating Brembodiscs, 4-piston, dualradial-mount, Brembo M50 monobloc
Rear Brakes: Single 220mm disc with aluminumsingle-piston caliper
Front Tyre: 120/70ZR17M/C (58W)
Rear Tyre: 190/55ZR17M/C (75W)
Rake: 25°
Steering Angle L/R: 27° /  27°
Trail: 107 mm /  4.2 in
Dimensions: Length 2085 mm / 82.0 inWidth 740 mm / 29.1 inHeight 1145 mm / 45.0 in
Wheelbase: 1440 mm / 56.7 in
Ground Clearance: 145 mm / 5.7 in
Seat Height: 835 nn / 32.9 in
Wet Weight: 208 kg / 458.5 lbs
Fuel Capacity : 17 Litres / 4.5 US gal
