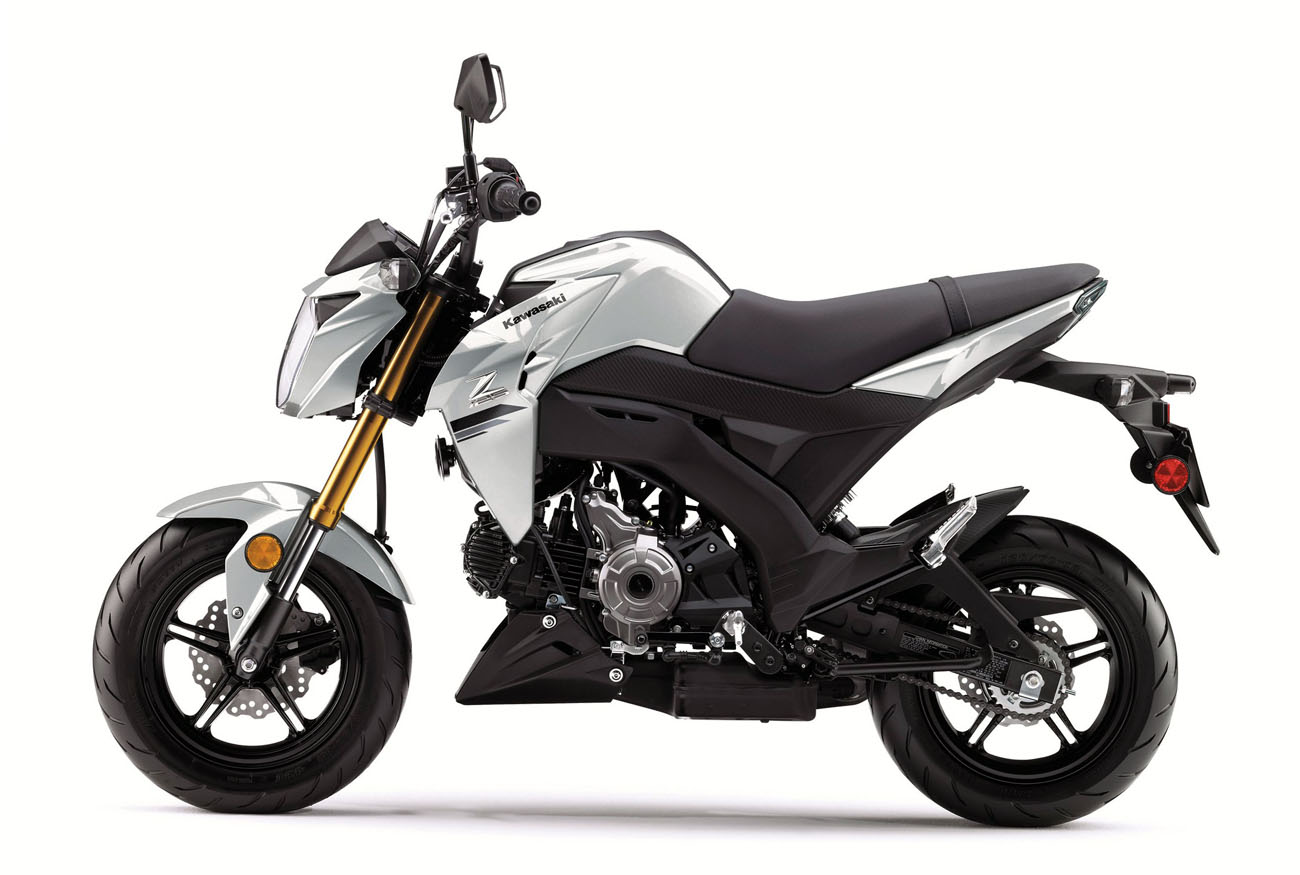

2020 Kawasaki Z125 technical specifications

Kawasaki Z125 technical specifications

Technical specifications

Model: Z125
Years: 2020
Engine: Fourstroke, single cylinder, DOCH, 4 valve
Capacity: 125 cc /7.6 cu in
Bore x Stroke: 58.0 x47.2mm
Compression Ratio: 11.7:1
Cooling System: Aircooled
Induction: Fuelinjection (ø28 x 1)
Lubrication: Forced Lub,Wet
Ignition : B&C(TCBI, B. P&EL. ADV.)
Starting: Electric
Max Power: 11.0kW  / 14.8 hp @ 10,000 rpm
Max Torque: 11.7 Nm /8.6 lb-ft @ 7,700 rpm
Transmission : 6 Speed, returnshift
Final Drive: Chain
Gear Ratios: 1st 2.833(34/12)   2nd 1.875 (30/16)   3rd 1.444(26/18)   4th 1.208 (29/24)   5th 1.056(19/18)   6th 0.962 (25/26)
Front Suspension: 37mmTelescopic Fork
Front Wheel Travel: 110mm / 4.3in
Rear Suspension: Uni TrackSwingarm
Front Brakes: Single290mm Disc, Dual Piston Calipers
Rear Brakes: Single220mm Disc
Front Tyre: 100/80-17M/C 52S
Rear Tyre: 130/70-17M/C 62S
Rake:  23.1°
Trail: 90mm / 3.9in
Dimensions: Length 1935mm / 76.2 inWidth     740 mm / 29.1 inHeight  1015 mm / 40 in
Wheelbase: 1330 mm / 52.4 in
Seat Height: 815 mm / 32in
Ground Clearance: 185 mm /7.3 in
Wet Weight: 146 kg/ 322 lbs
Fuel Capacity :  11Litres / 2.9 US gal
