Kawasaki Z-X10R SE Ninja (2019) technical specifications

Kawasaki Z-X10R SE Ninja technical specifications

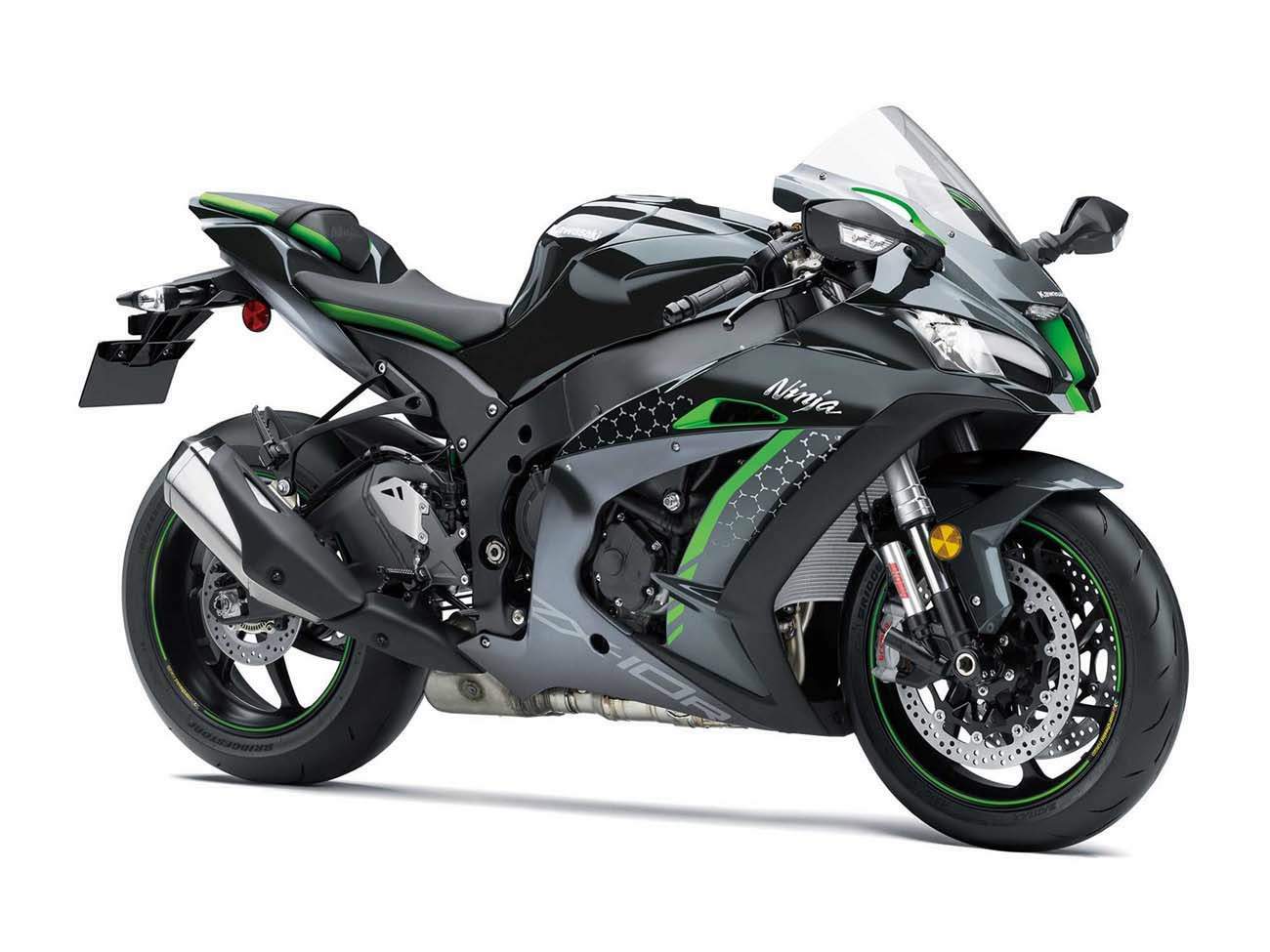

Kawasaki Z-X10R SE Ninja is produced in 2019. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 998 cc / 60.9 cu-in , produces power 149.3 kW / 203 hp @ 13500 rpm and 114.9 Nm / 84.7 lb-ft @ 11200 rpm. Kawasaki Z-X10R SE Ninja wet weight is 208 kg / 458.5 lbs. Kawasaki Z-X10R SE Ninja has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: Z-X10R SE Ninja
Years: 2019
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 998 cc / 60.9 cu-in
Bore x Stroke: 76.0 x 55.0 mm
Compression Ratio: 13.0:1
Cooling System: Liquid cooled
Lubrication: Forced lubrication, wet sump with oil cooler
Induction: Fuel injection: Ø 47 mm x 4 with dual injection
Ignition: TCBI with digital advance and Sport-Kawasaki Traction Control (S-KTRC)
Starting: Electric
Max Power: 149.3 kW / 203 hp @ 13500 rpm
Max Power Ram Air: 156.8 kW / 213 hp @ 13500 rpm
Max Torque: 114.9 Nm / 84.7 lb-ft @ 11200 rpm
Clutch: Wet multi-disc, manual
Transmission: 6-speed, return, cassette
Final Drive: Sealed Chain
Primary Reduction Ratio: 1.681 (79/47)
Gear Ratio: 1st 2.600 (39/15) 2nd 2.222 (40/18) 3rd 1.944 (35/18) 4th 1.722 (31/18) 5th 1.550 (31/20) 6th 1.391 (32/23)
Final Reduction Ratio: 2.294 (39/17)
Frame: Twin spar, cast aluminium
Front Suspension: 43 mm inverted Balance Free Front Fork with external compression chamber, KECS-controlled compression and rebound damping and spring preload adjustability, and top-out springs.
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Horizontal Back-link, BFRC lite gas-charged shock with piggyback reservoir, KECS-controlled compression and rebound damping and spring preload adjustability, and top-out spring
Rear Wheel Travel: 114 mm / 4.5 in
Front Brakes: 2x 330 mm semi-floating Brembo discs, 4-piston, dual radial-mount, Brembo M50 monobloc
Rear Brakes: Single 220mm disc with aluminum single-piston caliper
Wheels: Forced Marchesini
Front Tyre: 120/70ZR17M/C (58W)
Rear Tyre: 190/55ZR17M/C (75W)
Rake: 25°
Steering Angle L/R: 27° / 27°
Trail: 107 mm / 4.2 in
Dimensions: Length 2085 mm / 82.0 in Width 740 mm / 29.1 in Height 1145 mm / 45.0 in
Wheelbase: 1440 mm / 56.7 in
Ground Clearance: 145 mm / 5.7 in
Seat Height: 835 mm / 32.9 in
Wet Weight: 208 kg / 458.5 lbs
Fuel Capacity: 17 Litres / 4.5 US gal
