Kawasaki VN 900 Vulcan Custom (2017-18) technical specifications

Kawasaki VN 900 Vulcan Custom technical specifications

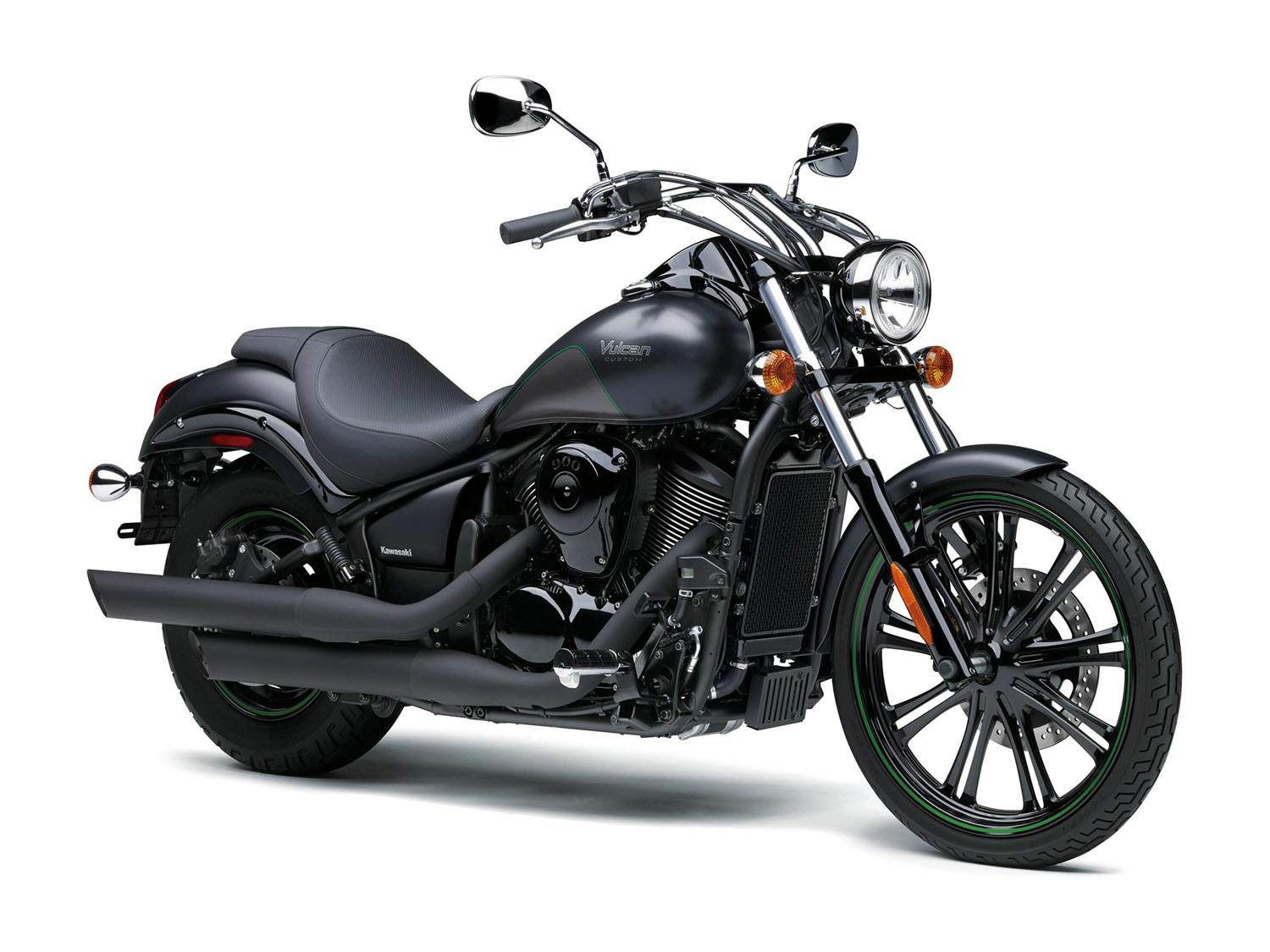

Kawasaki VN 900 Vulcan Custom is produced in 2017-18. Engine is Four stroke, V-twin, SOHC, 4 valves per cylinder, displacement 903 cc / 49 cu-in , produces power 37 kW / 50 hp @ 5700 rpm and 78 Nm / 8.0 kg-fm @ 3700 rpm. Kawasaki VN 900 Vulcan Custom wet weight is 277 kg / 610.8 lbs. Kawasaki VN 900 Vulcan Custom has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: VN 900 Vulcan Custom
Years: 2017-18
Engine: Four stroke, V-twin, SOHC, 4 valves per cylinder
Capacity: 903 cc / 49 cu-in
Bore x Stroke: 88.0 x 74.2 mm
Cooling System: Liquid cooled
Compression Ratio: 9.5:1
Induction: 2x 34mm ø Fuel injection with dual throttles
Ignition: Digital
Starting: Electric
Max Power: 37 kW / 50 hp @ 5700 rpm
Max Torque: 78 Nm / 8.0 kg-fm @ 3700 rpm
Clutch: Wet multi-disc, manual
Transmission: 5 Speed
Final Drive: Belt
Frame: Double-cradle, steel
Front Suspension: 41mm telescopic fork with 7-way preload
Front Wheel Travel: 150 mm / 5.9 in
Rear Suspension: Uni-Trak with 7-way adjustable preload
Rear Wheel Travel: 103 mm / 4.1 in
Front Brakes: Single 300mm disc
Rear Brakes: Single 270mm disc
Front Tyre: 80/90 -21
Rear Tyre: 180/70 -15
Dimensions: Length 2405 mm / 94.7 ub Width 894 mm / 35.2 in Heigh 1120 mm / 44.1 in
Wheelbase: 1646 mm / 64.8 in
Seat Height: 685 mm / 27.0 in
Wet Weight: 277 kg / 610.8 lbs
Fuel Capacity: 20 Litres / 5.3 US gal
