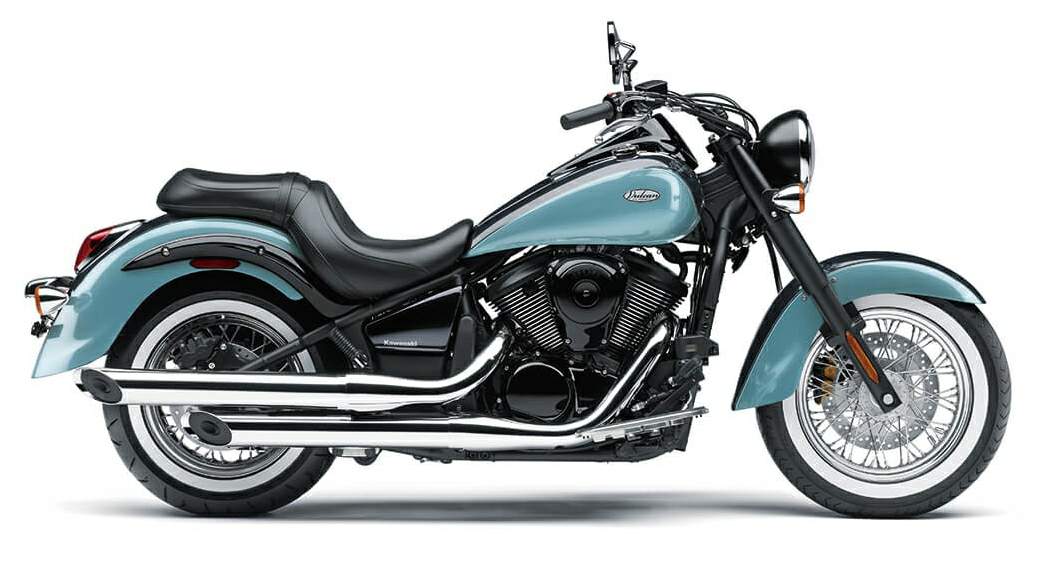

Kawasaki VN 900 Vulcan Classic / Custom / LT (2025) technical specifications

Kawasaki VN 900 Vulcan Classic / Custom / LT is produced in 2025. Engine is Four stroke, 55? V-twin, SOHC, 4 valves per cylinder, displacement 903 cc / 49 cu-in , produces power 37 kW / 50 hp @ 5700 rpm and 78.9 Nm / 8.0 kg-fm @ 3500 rpm. Kawasaki VN 900 Vulcan Classic / Custom / LT wet weight is Classic: 281 kg / 619.6 lbs Custom: 277 kg / 610.8 lbs LT: 298 kg / 657 lbs. Kawasaki VN 900 Vulcan Classic / Custom / LT has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	VN 900 Vulcan Classic / Custom / LT
Years:	2025
Engine:	Four stroke, 55? V-twin, SOHC, 4 valves per cylinder
Capacity:	903 cc / 49 cu-in
Bore x Stroke:	88.0 x 74.2 mm
Cooling System:	Liquid cooled
Compression Ratio:	9.5:1
Induction:	2 x DFI? with 34mm throttle bodies, with sub-throttle valves
Ignition:	TCBI with Electronic Advance
Starting:	Electric
Max Power:	37 kW / 50 hp @ 5700 rpm
Max Torque:	78.9 Nm / 8.0 kg-fm @ 3500 rpm
Clutch:	Wet multi-disc, manual
Transmission:	5 Speed with positive neutral finder
Final Drive:	Belt, Kevlar-reinforced
Frame:	Double-cradle, high-tensile steel
Front Suspension:	41mm Showa telescopic fork with 7-way preload
Front Wheel Travel:	150 mm / 5.9 in
Rear Suspension:	Uni-Trak with 7-way adjustable preload
Rear Wheel Travel:	103 mm / 4.1 in
Front Brakes:	Single 300mm disc
Rear Brakes:	Single 270mm disc
Front Tyre:	Classic: 80/90-16 Custom: 80/90-21 LT: 130/90-16
Rear Tyre:	180/70 -15
Rake:	Classic and LT: 32? Custom: 33?
Trail:	Classic and LT: 160 mm / 6.3 in Custom: 183 mm / 7.2 in
Dimensions:	Length Classic and LT: 2463 mm 97 in. Custom:2405 mm / 94.7 in Width Classic 1006 mm / 39.6 in. Custom: 894 mm / 35.2 in Height: Classic: 1064 mm / 41.9 in. Custom: 1120 mm / 44.1 in. LT: 1480 mm / 58.3 in
Wheelbase:	1646 mm / 64.8 in
Ground Clearance:	Classic and LT: 135 mm / 5.3 in Custom: 140 mm / 5.5 in
Seat Height:	Classic and LT: 681 mm / 26.8 in. Custom: 685 mm / 27.0 in
Wet Weight:	Classic: 281 kg / 619.6 lbs Custom: 277 kg / 610.8 lbs LT: 298 kg / 657 lbs
Fuel Capacity:	20 Litres / 5.3 US gal
