Kawasaki VN 800 Vulcan (1998-00) technical specifications

Kawasaki VN 800 Vulcan technical specifications

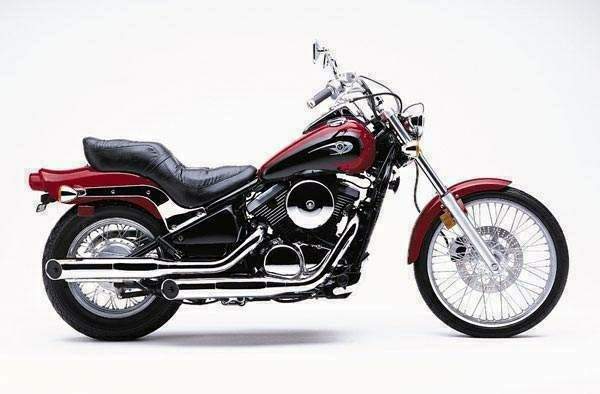

Kawasaki VN 800 Vulcan is produced in 1998-00. Engine is Four stroke, V-Twin, SOHC, 4 valves per cylinder, displacement 805 cc / 49.1 cu-in , produces power 56 hp / 40.8 kW @ 7000 rpm and 64 Nm / 47.2 lb-ft @ 3300 rpm. Kawasaki VN 800 Vulcan top speed is 179.6 km/h. Kawasaki VN 800 Vulcan weighs 225 kg / 496 lbs. Kawasaki VN 800 Vulcan has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: VN 800 Vulcan
Years: 1998-00
Engine: Four stroke, V-Twin, SOHC, 4 valves per cylinder
Capacity: 805 cc / 49.1 cu-in
Bore x Stroke: 88 x 66.2 mm
Cooling System: Liquid cooled
Compression Ratio: 9.5:1
Induction: Keihin CVK36 carburetor
Ignition: Digital K-TRIC
Starting: Kick
Max Power: 56 hp / 40.8 kW @ 7000 rpm
Max Power Rear Tyre: 50.9 hp @ 7100 rpm
Max Torque: 64 Nm / 47.2 lb-ft @ 3300 rpm
Transmission: 5 Speed
Final Drive: Chain
Front Suspension: 41 mm. hydraulic telescopic fork
Rear Suspension: Uni-Trak with 7 way cam-type preload adjuster
Front Brakes: Single 300mm disc 2 piston caliper
Rear Brakes: 180mm Drum
Front Tyre: 80/90-21
Rear Tyre: 140/90-16
Rake: 34°
Trail: 150 mm / 5.9 in
Dimensions: Length 2360 mm / 92.9 in Width 825.5 mm / 32.5 in Height 1171 mm / 46.1 in
Wheelbase: 1,625 mm / 64 in
Seat Height: 712 mm / 28.0 in
Ground Clearance: 160 mm / 6.2 in
Dry Weight: 225 kg / 496 lbs
Wet Weight: 239 kg / 527 lbs
Fuel Capacity: 15 Litres / 3.9 US gal
Consumption Average: 19.4 km/lit
Braking 60 - 0 / 100 - 0: 14.1 m / 42.8 m
Standing ¼ Mile: 13.7 sec / 151.2 km/h
Top Speed: 179.6 km/h
