Kawasaki VN 750 Vulcan (2002-06) technical specifications

Kawasaki VN 750 Vulcan technical specifications

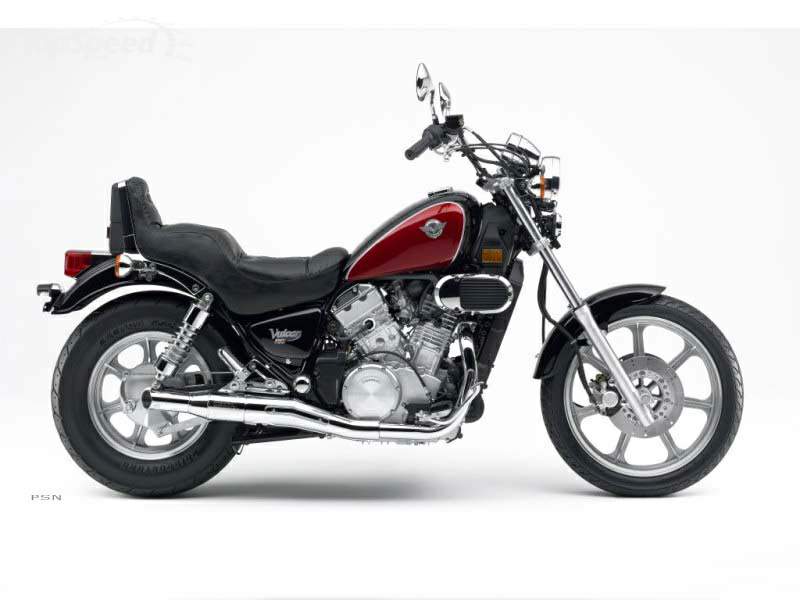

Kawasaki VN 750 Vulcan is produced in 2002-06. Engine is Four stroke, V-Twin, DOHC, 4 valves per cylinder., displacement 749 cc / 45.7 cu-in , produces power 66 hp / 48.1 kW @ 7500 rpm and 6.5 kgf-m / 64.7 Nm @ 6000 rpm. Kawasaki VN 750 Vulcan top speed is 176.3 km/h / 109.5 mph. Kawasaki VN 750 Vulcan weighs 219 kg / 483 lbs. Kawasaki VN 750 Vulcan has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: VN 750 Vulcan
Years: 2002-06
Engine: Four stroke, V-Twin, DOHC, 4 valves per cylinder.
Capacity: 749 cc / 45.7 cu-in
Bore x Stroke: 84.9 x 66.2mm
Cooling System: Liquid cooled
Compression Ratio: 10.3:1
Induction: 34mm Keihin CVK34 carburetor
Ignition: Electronic
Starting: Electric
Max Power: 66 hp / 48.1 kW @ 7500 rpm
Max Power Rear Tyre: 59.1 hp @ 7500 rpm
Max Torque: 6.5 kgf-m / 64.7 Nm @ 6000 rpm
Transmission: 5 Speed
Final Drive: Shaft
Front Suspension: Telescopic fork
Rear Suspension: Dual shocks, air-adjustable preload and 4-position rebound damping
Front Brakes: 2x 226mm discs 2 piston calipers
Rear Brakes: Drum
Front Tyre: 100/90-19
Rear Tyre: 150/90-15
Rake: 32°
Trail: 130 mm / 5.1 in
Wheelbase: 1580 mm / 62.2 in
Seat Height: 730 mm / 28.9 in
Dry Weight: 219 kg / 483 lbs
Wet Weight: 226 kg / 498 lbs
Fuel Capacity: 13.5 Litres / 3.6 US gal
Consumption Average: 15.2 km/lit
Braking 60 - 0 / 100 - 0: 13.9 m / 43.8 m
Standing ¼ Mile: 13.5 sec / 153.2 km/h
Top Speed: 176.3 km/h / 109.5 mph
