Kawasaki VN 500 Vulcan LTD / VN 500 (1996-99) technical specifications

Kawasaki VN 500 Vulcan LTD / VN 500 technical specifications

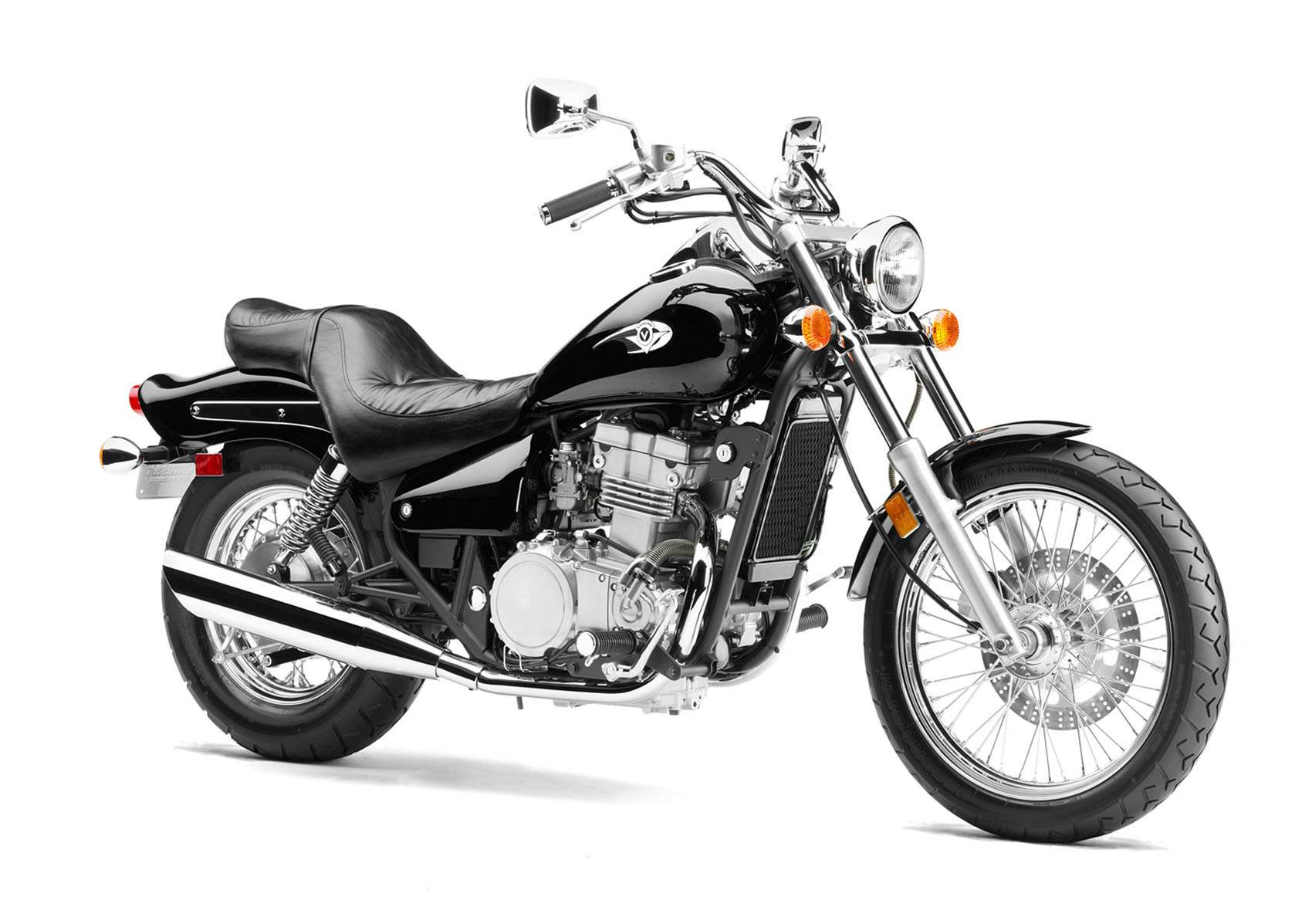

Kawasaki VN 500 Vulcan LTD / VN 500 is produced in 1996-99. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder., displacement 498 cc / 30.4 cy-in , produces power 50 hp / 36.5 kW @ 8500 rpm and 4.8 kgf-m / 32.6 lb-ft @ 7300 rpm. Kawasaki VN 500 Vulcan LTD / VN 500 top speed is 160.8 km/h. Kawasaki VN 500 Vulcan LTD / VN 500 weighs 199.1 kg / 439 lbs. Kawasaki VN 500 Vulcan LTD / VN 500 has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: VN 500 Vulcan LTD / VN 500
Years: 1996-99
Engine: Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder.
Capacity: 498 cc / 30.4 cy-in
Bore x Stroke: 74 х 58 mm
Cooling System: Liquid cooled
Compression Ratio: 10.2:1
Induction: 2x 32mm Keihin carburetors
Ignition: Digital TCBI
Max Power: 50 hp / 36.5 kW @ 8500 rpm
Max Power Rear Tyre: 44.8 hp @ 8500 rpm
Max Torque: 4.8 kgf-m / 32.6 lb-ft @ 7300 rpm
Clutch: Wet Plate
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: 36mm Telescopic forks
Rear Suspension: Dual shocks preload adjustable,
Front Brakes: Single 300mm disc
Rear Brakes: 180mm drum
Front Tyre: 100/90-19
Rear Tyre: 140/90-15
Rake: 33.0°
Wheelbase: 1595 mm / 62.8 in
Seat Height: 714 mm / 28.1 in
Dry Weight: 199.1 kg / 439 lbs
Fuel Capacity: 15 Litres / 4.0 US gal
Braking 60 - 0 / 100 - 0: 13.6 m / 36.9 m
Standing ¼ Mile: 14.8 sec / 137.7 km/h
Top Speed: 160.8 km/h
