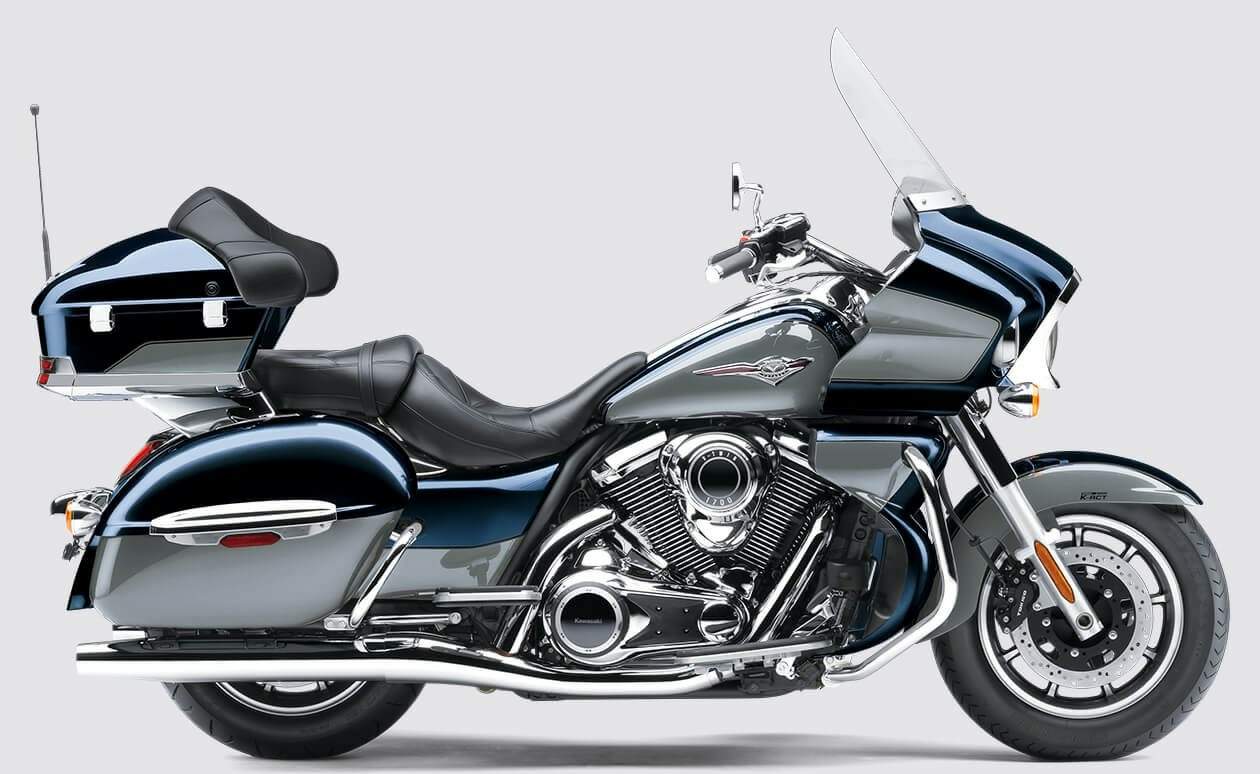

Kawasaki VN 1700 Vulcan Voyager (2025) technical specifications

Kawasaki VN 1700 Vulcan Voyager is produced in 2025. Engine is Four stroke, 52? V-twin cylinder, SOHC, 8 valve per cylinder, displacement 1700 cc / 103.7 cu in , produces power 61 kW / 82 hp @ 5000 rpm and 146 Nm / 107 lb-ft @ 2750 rpm. Kawasaki VN 1700 Vulcan Voyager wet weight is 406 kg / 895.2 lbs. Kawasaki VN 1700 Vulcan Voyager has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	VN 1700 Vulcan Voyager
Years:	2025

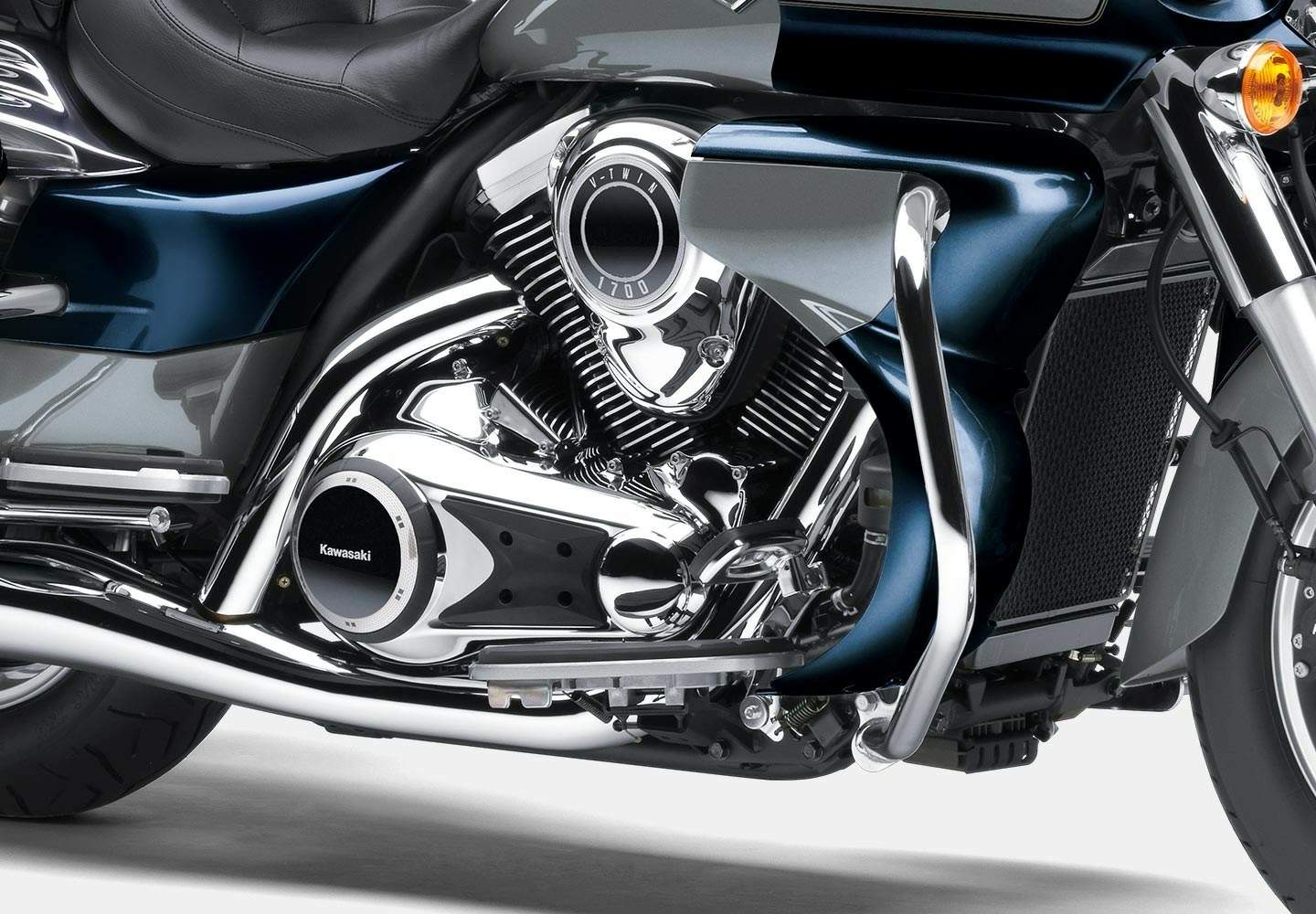

Engine:	Four stroke, 52? V-twin cylinder, SOHC, 8 valve per cylinder
Capacity:	1700 cc / 103.7 cu in
Bore x Stroke:	102 x 104 mm
Cooling System:	Liquid cooled
Compression Ratio:	9.5:1
Induction:	Digital fuel injection, dual 42mm throttle bodies
Ignition:	TCBI with Electronic Advance
Starting:	Electric
Max Power:	61 kW / 82 hp @ 5000 rpm
Max Torque:	146 Nm / 107 lb-ft @ 2750 rpm
Transmission:	6 Speed with overdrive and positive neutral finder
Final Drive:	Carbon fibre-reinforced belt
Gear Ratio:	1st 3.077 (40/13) 2nd 1.900 (38/20) 3rd 1.407 (38/27) 4th 1.143 (32/28) 5th 0.967 (29/30) 6th 0.806 (29/36)
Clutch:	Wet multi-disc, manual
Frame:	Steel, double-cradle with box-section single-tube backbone
Front Suspension:	45mm Showa telescopic fork
Front Wheel Travel:	140 mm / 5.5 in
Rear Suspension:	Swingarm with twin air-assisted shocks, with 4-way rebound damping
Rear Wheel Travel:	80 mm / 3.1 in
Front Brakes:	2 x 300mm discs dual four-piston calipers
Rear Brakes:	Single 300mm disc 2 piston caliper
ABS:	K-ACT ABS
Front Tyre:	130/90-16
Rear Tyre:	170/70-16
Rake:	30?
Trail:	178 mm / 7 in
Dimensions:	Length 2560 mm / 100.8 in Width 996 mm / 39.2 in Height 1549 mm / 61 in
Wheelbase:	1666 mm / 65.6 in
Ground Clearance:	145 mm / 5.3 in
Seat Height:	730 mm / 28.7 in
Wet Weight:	406 kg / 895.2 lbs
Fuel Capacity:	20 Litres / 5.3 US gal
