Kawasaki Ninja 300 SBK Special Edition (2014) technical specifications

Kawasaki Ninja 300 SBK Special Edition technical specifications

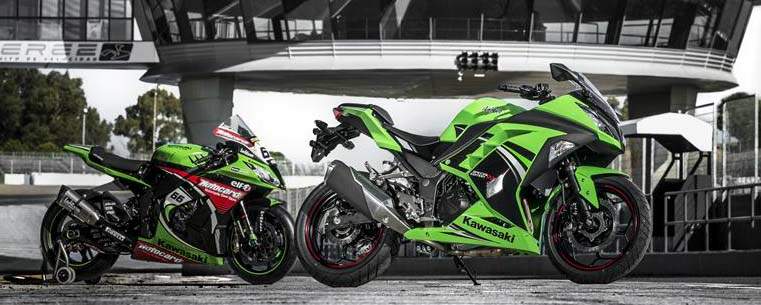

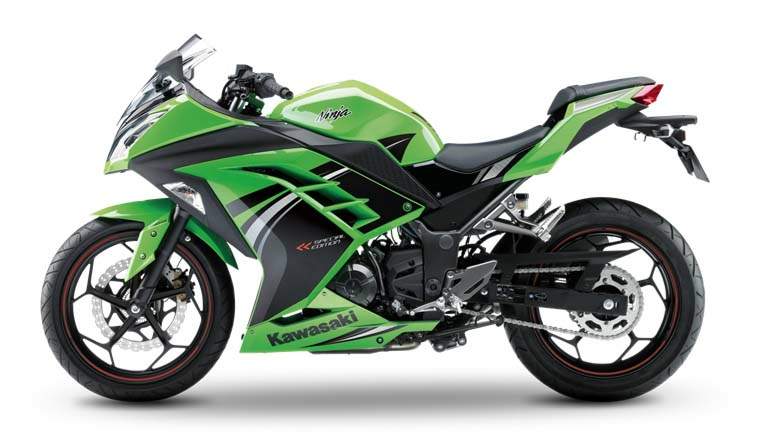

Kawasaki Ninja 300 SBK Special Edition is produced in 2014. Engine is Four stroke . parallel twin, DOHC, 4 valves per cylinder, displacement 296 cc / 18.0 cu-in , produces power 29.0 kW / 39 hp @ 11000 rpm and 27.0 Nm / 2.8 kg-fm @ 10000 rpm. Kawasaki Ninja 300 SBK Special Edition wet weight is 172 kg / 379.1 lbs - ABS 174 kg / 383.6 lbs. Kawasaki Ninja 300 SBK Special Edition has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Ninja 300 SBK Special Edition
Years: 2014
Engine: Four stroke . parallel twin, DOHC, 4 valves per cylinder
Capacity: 296 cc / 18.0 cu-in
Bore x Stroke: 62 x 49 mm
Cooling System: Liquid cooled
Compression Ratio: 10.6:1
Lubrication: Forced lubrication, wet sump
Induction: Fuel injection: ø32 mm x 2 (Keihin), with dual throttle valves
Ignition: TCBI with Digital Advance
Starting: Electric
Max Power: 29.0 kW / 39 hp @ 11000 rpm
Max Torque: 27.0 Nm / 2.8 kg-fm @ 10000 rpm
Clutch: Wet multi-disc, manual
Transmission: 6 Speed
Final Drive: Chain
Primary Reduction Ratio: 3.087 (71/23)
Gear Ratio: 1st 2.714 (38/14) 2nd 1.789 (34/19) 3rd 1.409 (31/22) 4th 1.160 (29/25) 5th 1.000 (27/27) 6th 0.893 (25/28)
Final Reduction Ratio: 3.000 (42/14)
Frame: Tube diamond, steel
Front Suspension: 37 mm Telescopic fork,
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Bottom-Link Uni-Trak with gas-charged shock and 5-way adjustable preload,
Rear Wheel Travel: 132 mm / 5.1 in
Front Brakes: Single 290 mm petal disc Single balanced actuation dual-piston
Rear Brakes: Single 220 mm petal disc Caliper: Dual-piston
Front Tyre: 110/70-17 M/C 54S
Rear Tyre: 140/70-17 M/C 66S
Rake: 27°
Trail: 93 mm / 3.6 in
Dimensions: Length 2015 mm / 79.3 in Width 715 mm / 29.1 in Height 1110 mm / 43.7 in
Wheelbase: 1405 mm / 55.3 in
Seat Height: 785 mm / 30.8 in
Ground Clearance: 140 mm / 5.5 in
Wet Weight: 172 kg / 379.1 lbs - ABS 174 kg / 383.6 lbs
Fuel Capacity: 17 Litres / 3.8 US gal
