Kawasaki KLX 300SM (2023) technical specifications

Kawasaki KLX 300SM technical specifications

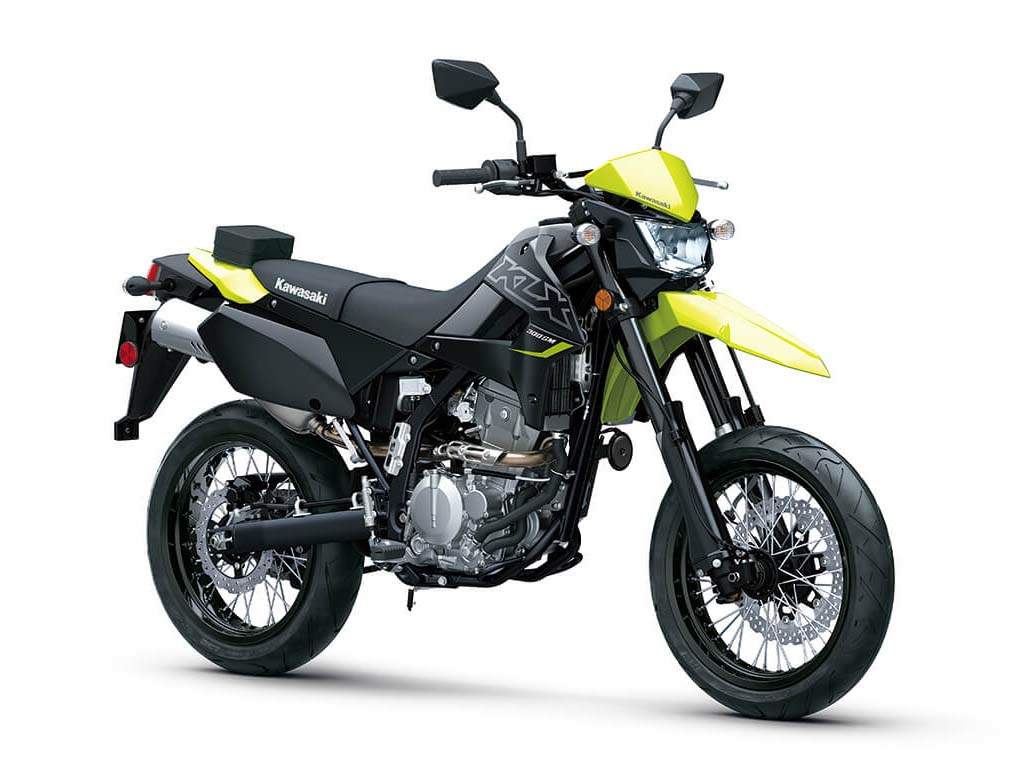

Kawasaki KLX 300SM is produced in 2023. Engine is Four stroke, single cylinder, DOHC, 4 valve, displacement 292 cc / 17.8 cu-in , produces power NA and NA. Kawasaki KLX 300SM wet weight is 138 kg / 304 lbs. Kawasaki KLX 300SM has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: KLX 300SM
Years: 2023
Engine: Four stroke, single cylinder, DOHC, 4 valve
Capacity: 292 cc / 17.8 cu-in
Bore x Stroke: 78.0 x 61.2 mm
Cooling System: Liquid cooled
Compression Ratio: 11.1:1
Lubrication: Forced lubrication, wet sump
Induction: Fuel injection with 34mm Keihin throttle body
Ignition: Electric CDI
Starting: Electric
Max Power: NA
Max Torque: NA
Clutch: Wet multi-disc, manual
Transmission: 6 Speed
Final Drive: Chain
Frame: Semi Double Cradle
Front Suspension: 43 mm inverted fork with adjustable compression damping
Front Wheel Travel: 230 mm / 9.1 in
Rear Suspension: Uni-Trak, gas-charged shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable preload
Rear Wheel Travel: 205 mm / 8.1 in
Front Brakes: Single semi-floating 300 mm petal disc with dual-piston caliper
Rear Brakes: Single 240 mm petal disc with single-piston caliper
Front Tyre: 110/70-17M/C 54S
Rear Tyre: 130/70-17M/C 62S
Rake: 25°
Trail: 70 mm / 2.8 in
Dimensions: Length 2145 mm / 84.4 in Width 790 mm / 31.1 in Height 1145 mm / 45.1 in
Wheelbase: 1435 mm / 56.5 in
Seat Height: 860 mm / 33.9 in
Ground Clearance: 215 mm / 8.5 in
Wet Weight: 138 kg / 304 lbs
Fuel Capacity: 7.7 Litres / 2.0 US gal
