Kawasaki KLX 250S (2013-15) technical specifications

Kawasaki KLX 250S technical specifications

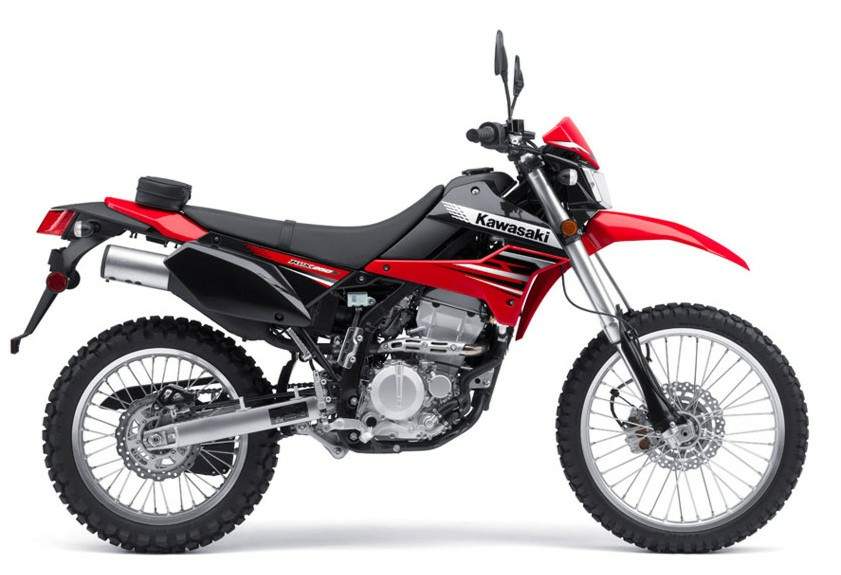

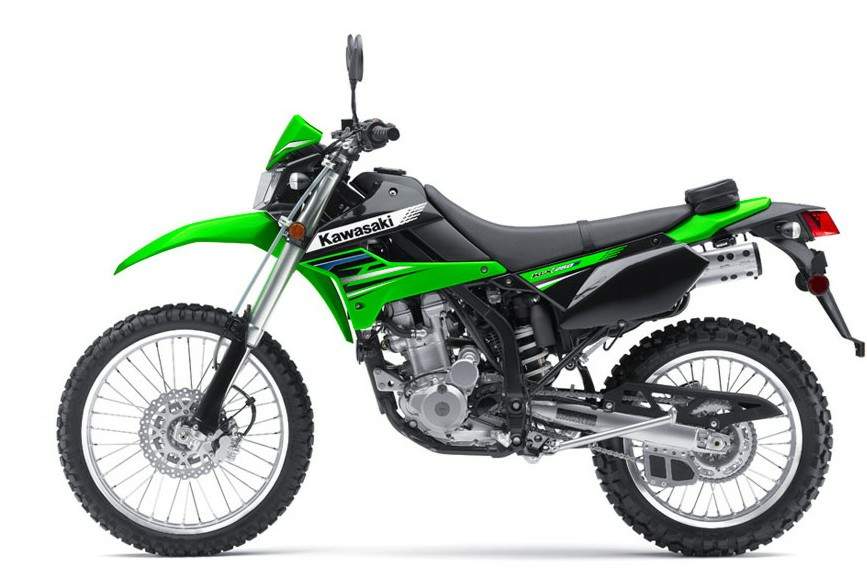

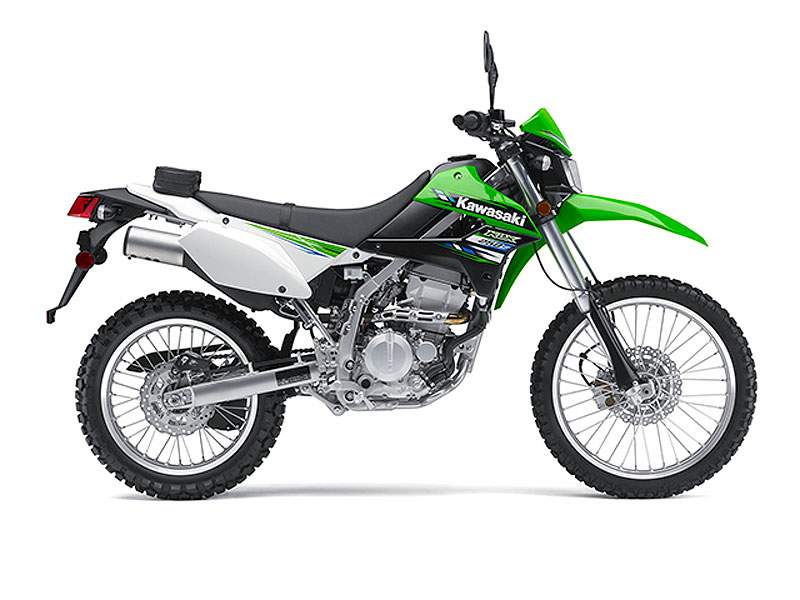

Kawasaki KLX 250S is produced in 2013-15. Engine is Four stroke, single cylinder, DOHC, 4 valve, displacement 249 cc / 15.2 cu-in , produces power 27 hp / 22.3 kW @ 8500 rpm and 2.6 kgf-m / 18.5 lb-ft @ 7500 rpm. Kawasaki KLX 250S weighs 122 kg / 269 lbs. Kawasaki KLX 250S has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: KLX 250S
Years: 2013-15
Engine: Four stroke, single cylinder, DOHC, 4 valve
Capacity: 249 cc / 15.2 cu-in
Bore x Stroke: 72 х 61.2 mm
Cooling System: Liquid cooled
Compression Ratio: 11.0:1
Induction: Keihin CVK34 carburetor
Ignition: Digital CDI
Starting: Electric
Max Power: 27 hp / 22.3 kW @ 8500 rpm
Max Power Rear Tyre: 23.5 hp @ 8200 rpm
Max Torque: 2.6 kgf-m / 18.5 lb-ft @ 7500 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed
Final Drive: Chain
Frame: Steel, Double cradle frame
Front Suspension: 43 mm Inverted cartridge fork with 16-Way compression damping adjustment
Front Wheel Travel: 285 mm / 11.2 in
Rear Suspension: Uni-Trak® with Adjustable preload, 16-Way compression and Rebound damping adjustment
Rear Wheel Travel: 280 mm / 11.0 in
Front Brakes: Single 250mm disc 2 piston caliper
Rear Brakes: Single 230mm disc 1 piston caliper
Front Tyre: 80/100-21
Rear Tyre: 100/100-18
Rake: 25.5°
Trail: 74mm / 2.9 in
Wheelbase: 1430 mm / 56.3 in
Seat Height: 883 mm / 34.8 in
Ground Clearance: 285 mm / 11.2 in
Dry Weight: 122 kg / 269 lbs
Wet Weight: 135 kg / 297.7 lbs
Fuel Capacity: 7.2 Litres / 2.0 US gal
