Kawasaki KLX 250R (1997-99) technical specifications

Kawasaki KLX 250R technical specifications

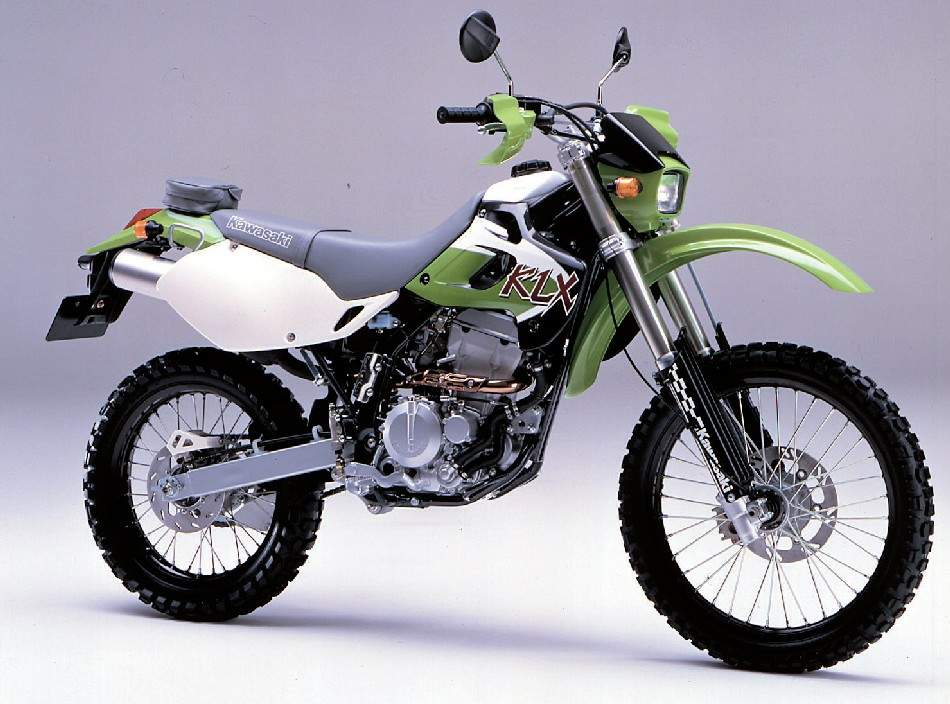

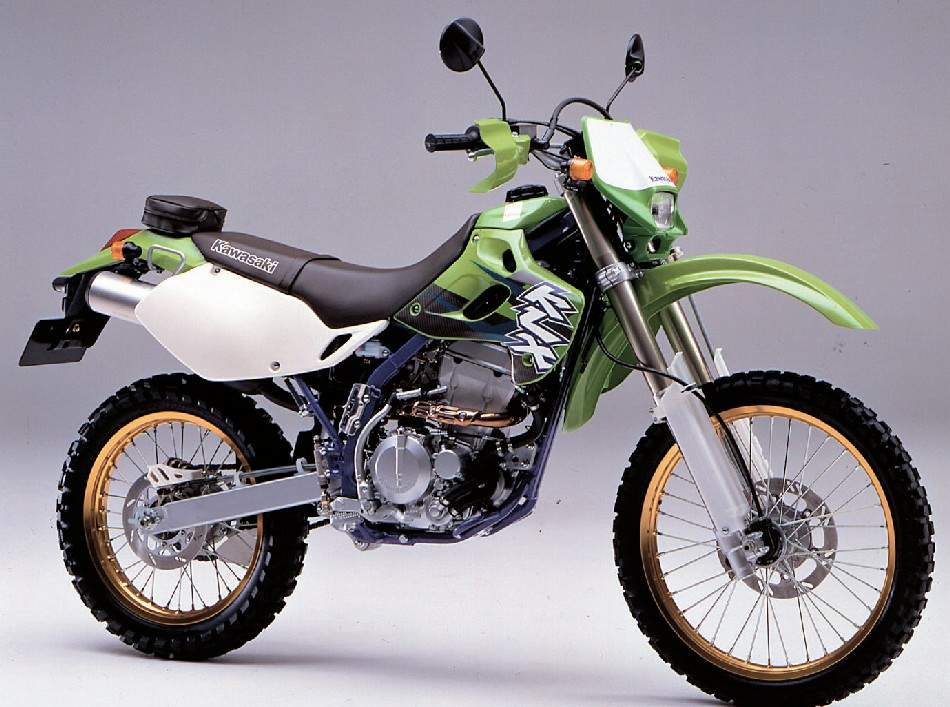

Kawasaki KLX 250R is produced in 1997-99. Engine is Four stroke, single cylinder, DOHC, 4 valve, displacement 249 cc / 15.2 cu-in , produces power 27 hp / 22.3 kW @ 8500 rpm and 2.6 kgf-m / 18.5 lb-ft @ 7500 rpm. Kawasaki KLX 250R top speed is 139.0 km/h / 86.3 mph. Kawasaki KLX 250R weighs 116 kg / 255.7 lbs. Kawasaki KLX 250R has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: KLX 250R
Years: 1997-99
Engine: Four stroke, single cylinder, DOHC, 4 valve
Capacity: 249 cc / 15.2 cu-in
Bore x Stroke: 72 х 61.2 mm
Cooling System: Liquid cooled
Compression Ratio: 11.0:1
Induction: Keihin CVK34 carburetor
Ignition: Digital CDI
Starting: Kick
Max Power: 27 hp / 22.3 kW @ 8500 rpm
Max Power Rear Tyre: 23.5 hp @ 8200 rpm
Max Torque: 2.6 kgf-m / 18.5 lb-ft @ 7500 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed
Final Drive: Chain
Frame: Steel, Double cradle frame
Front Suspension: 43 USD cartridge fork with 16-way adjustable compression damping
Front Wheel Travel: 285 mm / 11.2 in
Rear Suspension: Bottom-Link UNI-TRAK with gas-charged shock, adjustable preload, 16-way rebound and compression damping
Rear Wheel Travel: 280 mm / 11.0 in
Front Brakes: Single 250mm disc 2 piston caliper
Rear Brakes: Single 230mm disc 1 piston caliper
Front Tyre: 3.00 -21
Rear Tyre: 4.00 -17
Rake: 26.5°
Trail: 105 mm / 4.1 in
Wheelbase: 1480 mm / 56.3 in.
Seat Height: 880 mm / 35 in
Dry Weight: 116 kg / 255.7 lbs
Wet Weight: 130 kg / 286 lbs
Fuel Capacity: 10 Litres / 2.6 US gal
Braking 60 - 0 / 100 - 0: - / 44.4 m
Standing ¼ Mile: 15.2 sec / 130.7 km/h
Top Speed: 139.0 km/h / 86.3 mph
