Kawasaki KLX 230 Sherpa S ABS / DF ABS (2025) technical specifications

Kawasaki KLX 230 Sherpa S ABS / DF ABS is produced in 2025. Engine is Four stroke, single cylinder, SOHC, 2 valves, displacement 233 cc / 14.2 cu-in , produces power NA and NA. Kawasaki KLX 230 Sherpa S ABS / DF ABS wet weight is Sherpo S: 136 kg / 300 lbs DF: 137 kg / 302 lbs. Kawasaki KLX 230 Sherpa S ABS / DF ABS has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	KLX 230 Sherpa S ABS / DF ABS
Years:	2025

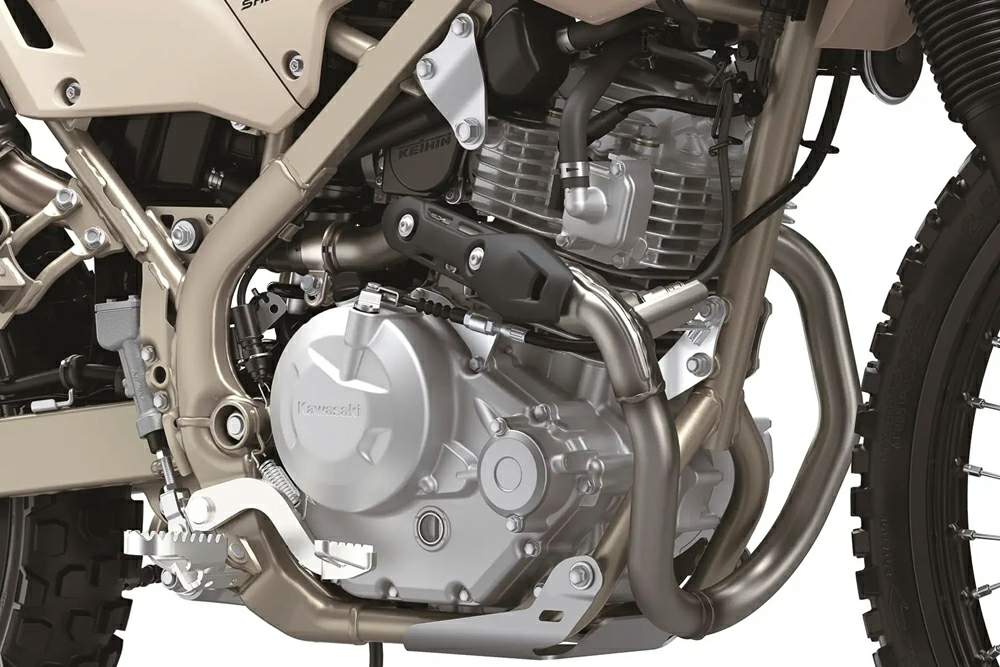

Engine:	Four stroke, single cylinder, SOHC, 2 valves
Capacity:	233 cc / 14.2 cu-in
Bore x Stroke:	67 x 66 mm
Cooling System:	Air cooled
Compression Ratio:	9.4:1
Lubrication:	Forced lubrication (wet sump)
Induction:	DFI with 32mm throttle body
Ignition:	B&C (TCBI EL. ADV. D.)
Starting:	Electric
Max Power:	NA
Max Torque:	NA
Clutch:	Wet multi-disc, manual
Transmission:	6 Speed
Final Drive:	Sealed chain
Frame:	Perimeter, high-tensile steel
Front Suspension:	37 mm telescopic fork
Front Wheel Travel:	Sherpa S: 157 mm / 6.2 in DF: 201 mm / 7.9 in
Rear Suspension:	Uni Trak with adjustable preload
Rear Wheel Travel:	Sherpa S: 168 mm / 6.6 in DF: 224 mm / 8.8 in
Front Brakes:	Single 265mm petal disc 2 piston caliper
Rear Brakes:	Single 220mm petal disc 1 piston caliper
ABS:	Standard
Front Tyre:	2.75 x 21 in
Rear Tyre:	4.10 x 18 in
Rake:	Sherpo S: 24.4? DF: 24.6?
Trail:	Sherpo S: 96.5 mm / 3.8 in DF: 96.5 mm / 3.8 in
Wheelbase:	Sherpo S: 1354 mm / 53.3 in DF: 1364 mm / 53.7 in
Seat Height:	Sherpo S: 826 mm / 32.5 in DF: 846 mm / 33.3 in
Ground Clearance:	Sherpo S: 216 m / 8.5 in DF: 239 mm / 9.4 in
Wet Weight:	Sherpo S: 136 kg / 300 lbs DF: 137 kg / 302 lbs
Fuel Capacity:	7.6 litres / 2 US gal
