Kawasaki KDX 200R (1995-98) technical specifications

Kawasaki KDX 200R technical specifications

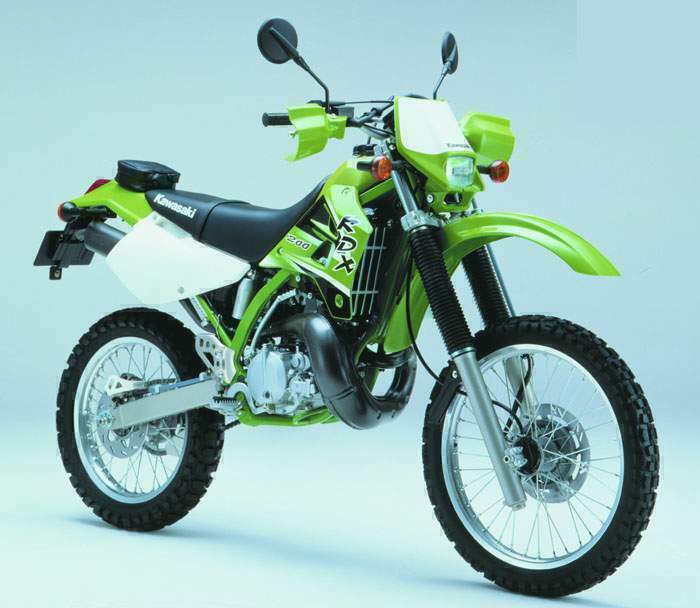

Kawasaki KDX 200R is produced in 1995-98. Engine is Two stroke, single cylinder, reed valve, displacement 198 cc / 12.0 cu-in , produces power 37 hp / 27 kW @ 8000 rpm and 34.3 Nm / 25.2 lb-ft @ 7000 rpm. Kawasaki KDX 200R weighs 109 kg / 240 lbs. Kawasaki KDX 200R has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: KDX 200R
Years: 1995-98
Engine: Two stroke, single cylinder, reed valve
Capacity: 198 cc / 12.0 cu-in
Bore x Stroke: 66 x 58 mm
Cooling System: Liquid cooled
Compression Ratio: 9.4:1
Induction: Keihin PWK35 carburetor
Ignition: Electronic CDI
Starting: Electric
Max Power: 37 hp / 27 kW @ 8000 rpm
Max Torque: 34.3 Nm / 25.2 lb-ft @ 7000 rpm
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: 43mm Telescopic forks 20-way compression damping
Front Wheel Travel: 290 mm / 11.4 in
Rear Suspension: Single shock adjustable preload, 20-way compression damping and 18-way rebound damping
Rear Wheel Travel: 300 mm / 11.8 in
Front Brakes: Single 250mm disc 2 piston caliper
Rear Brakes: Single 230mm disc 1 piston caliper
Front Tyre: 80/100-21
Rear Tyre: 100/100-18
Rake: 26.5°
Wheelbase: 1435 mm / 56.5 in
Seat Height: 919 mm / 36.2 in
Ground Clearance: 340 mm / 13.4 in
Dry Weight: 109 kg / 240 lbs
Fuel Capacity: 11 Litres / 2.9 US gal
