Kawasaki GPz 500S / EX 500R Ninja (1987-88) technical specifications

Kawasaki GPz 500S / EX 500R Ninja technical specifications

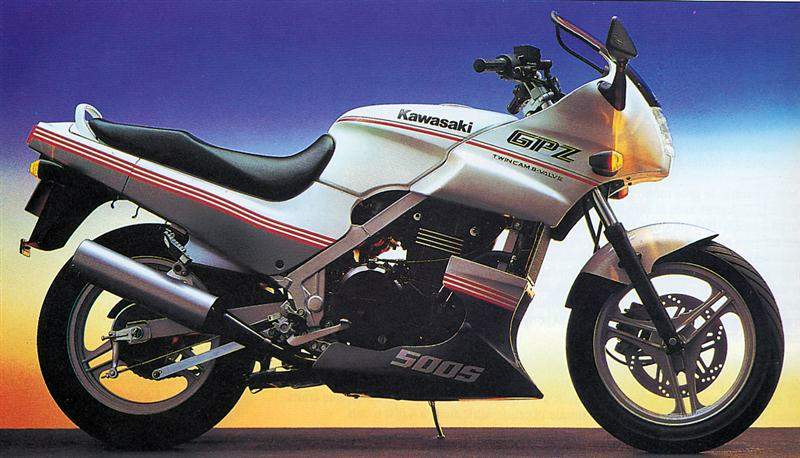

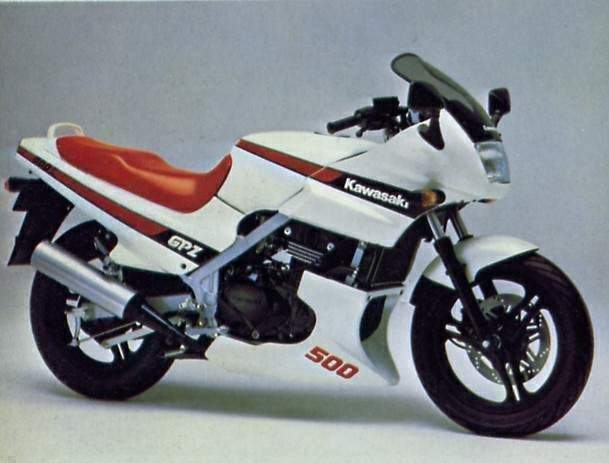

Kawasaki GPz 500S / EX 500R Ninja is produced in 1987-88. Engine is Four stroke, parallel twin cylinders. DOHC, 4 valves per cylinder., displacement 498 cc / 30.4 cu-in , produces power 60 hp / 43.7 kW @ 9800 rpm and 46.1 Nm / 4.7 kg-m @ 8500 rpm. Kawasaki GPz 500S / EX 500R Ninja top speed is 197.9 km/h / 122.9 mph. Kawasaki GPz 500S / EX 500R Ninja weighs 170 kg / 370 lbs. Kawasaki GPz 500S / EX 500R Ninja has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: GPz 500S / EX 500R Ninja
Years: 1987-88
Engine: Four stroke, parallel twin cylinders. DOHC, 4 valves per cylinder.
Capacity: 498 cc / 30.4 cu-in
Bore x Stroke: 74 x 58 mm
Cooling System: Liquid cooled,
Compression Ratio: 10.8:1
Lubrication: Wet sump
Engine Oil: Semi-Synthetic, 10W/40
Induction: 2x Keihin CVK34 carburetor
Ignition: TCI (Transistor Controlled Ignition)
Spark Plug: NGK, DR9EA
Starting: Electric
Max Power: 60 hp / 43.7 kW @ 9800 rpm
Max Power Rear Tyre: 54.7 hp @ 9500 rpm
Max Torque: 46.1 Nm / 4.7 kg-m @ 8500 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed
Final Drive: Chain
Frame: Iron, Double cradle frame
Front Suspension: 38mm Telescopic forks
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Swinging arm, single shock adjustable for spring preload
Rear Wheel Travel: 100 mm / 3.9 in
Front Brakes: Single 270mm disc 2 piston caliper
Rear Brakes: 160mm drum
Front Tyre: 100/90-16
Rear Tyre: 120/90-16
Rake: 63°
Trail: 91 mm / 3.5 in
Dimensions: Length 2110 mm / 83 in Width 685 mm / 27.0 in Height: 1160 mm / 45.6 in
Wheelbase: 1435 mm / 56.5 in
Seat Height: 770 mm / 30.0 in
Dry Weight: 170 kg / 370 lbs
Wet Weight: 200 kg / 441 lbs
Fuel Capacity: 15.9 Litres / 4.2 US gal
Consumption Average: 18.2 km/lit
Braking 60 - 0 / 100 - 0: 14.6 m / 39.9 n
Standing ¼ Mile: 12.5 sec / 164.8 km/h
Top Speed: 197.9 km/h / 122.9 mph
