Jawa 640 Style de Lux (1999) technical specifications

Jawa 640 Style de Lux technical specifications

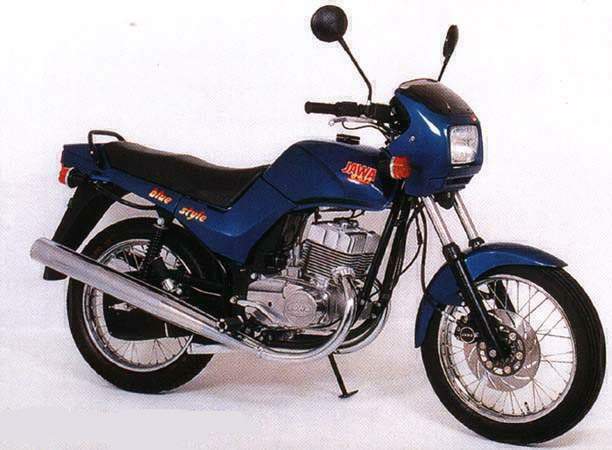

Jawa 640 Style de Lux is produced in 1999. Engine is Two stroke, parallel twin, displacement 343.4 cc / 21.0 cu in , produces power 17.2 kW / 23.5 hp @ 5250 rpm and 31.4 Nm / 3.2 kgf-m / 23.2 ft.lb @ 4750 rpm. Jawa 640 Style de Lux weighs 149 kg / 328 lbs. Jawa 640 Style de Lux has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: 640 Style de Lux
Years: 1999
Engine: Two stroke, parallel twin
Capacity: 343.4 cc / 21.0 cu in
Bore x Stroke: 58 x 65 mm
Compression Ratio: 9.8:1
Cooling System: Air cooled
Induction: Jikov 28-29 CE horizontal carburetor, slide type
Ignition: Magneto VAPE A67 contactless
Battery: 12V, 6Ah
Starting: Kick
Max Power: 17.2 kW / 23.5 hp @ 5250 rpm
Max Torque: 31.4 Nm / 3.2 kgf-m / 23.2 ft.lb @ 4750 rpm
Clutch: Multi disc in oil bath
Transmission: 4 Speed
Final Drive: Chain
Gear Ratios: 1st 14.50 / 2nd 8.60 / 3rd 6.10 / 4th 4:96:1
Frame: Tubular, double, closed
Front Suspension: Hydraulic telescopic fork, steel spiral springs
Front Wheel Travel: 150 mm / 5.9 in
Rear Suspension: Swingarm, hydraulic telescopic in suspension units, spiral springs
Rear Wheel Travel: 80 mm / 3.1 in
Front Brakes: Ø265 mm Disc, hydraulic control
Rear Brakes: Ø165 mm Drum, mechanical control
Wheels: Steel, deepened profile, multi-spokes
Front Wheel: 2.15 B x 18"
Rear Tyre: 2.15 B x 18"
Dimensions: Length: 2100 mm / 82.7 in Width: 780 mm / 30.7 in Height: 1160 mm / 45.7 in
Wheelbase: 1370 mm / 53.9 in
Ground Clearance: 120 mm / 4.7 in
Seat Height: 820 mm / 32.3 in
Turning Radius: 3.5 m / 11.5 ft
Dry Weight: 149 kg / 328 lbs
Wet Weight: 162 kg / 357 lbs
GVWR: 342 kg / 754 lbs
Fuel Capacity: 17 L / 4.5 US gal
Fuel Reserve: 2.8 L / 0.74 US gal
