Indian Roadmaster Dark Horse 116 (2020) technical specifications

Indian Roadmaster Dark Horse 116 technical specifications

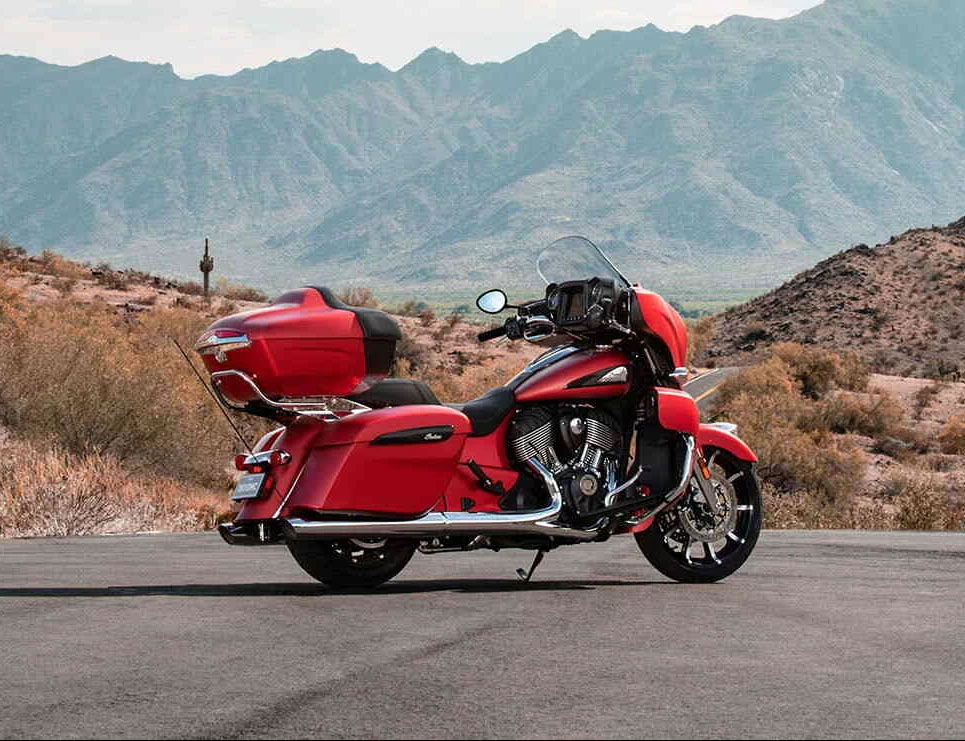

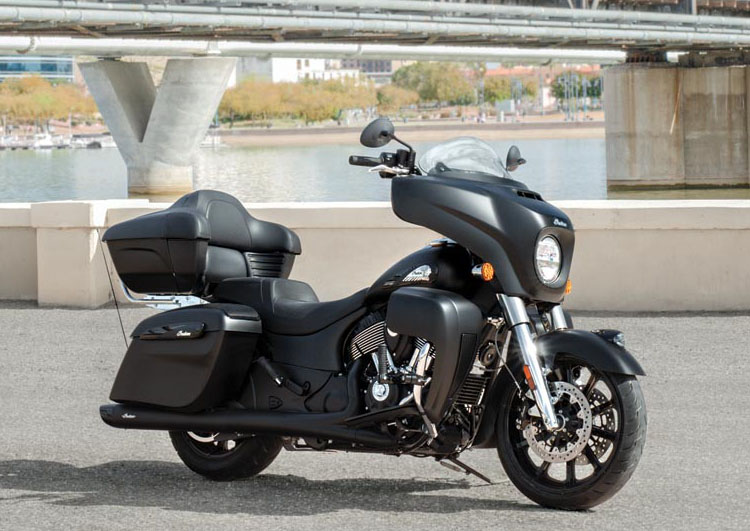

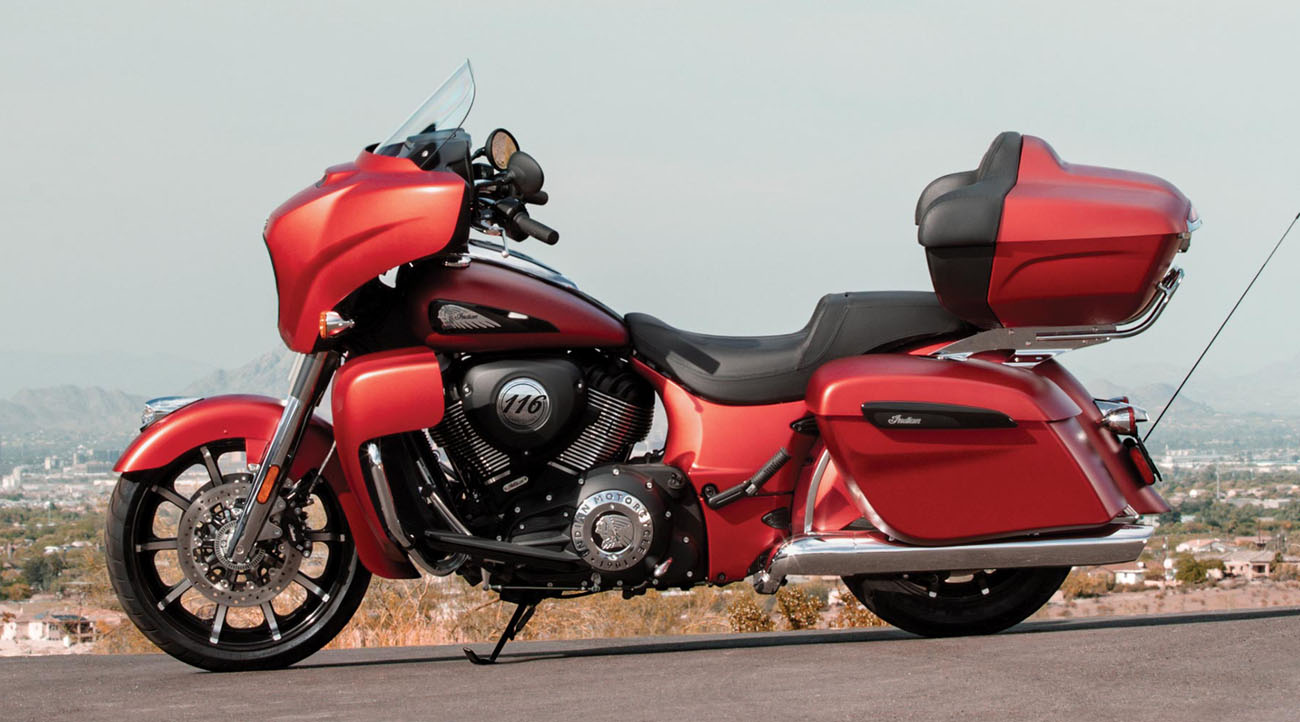

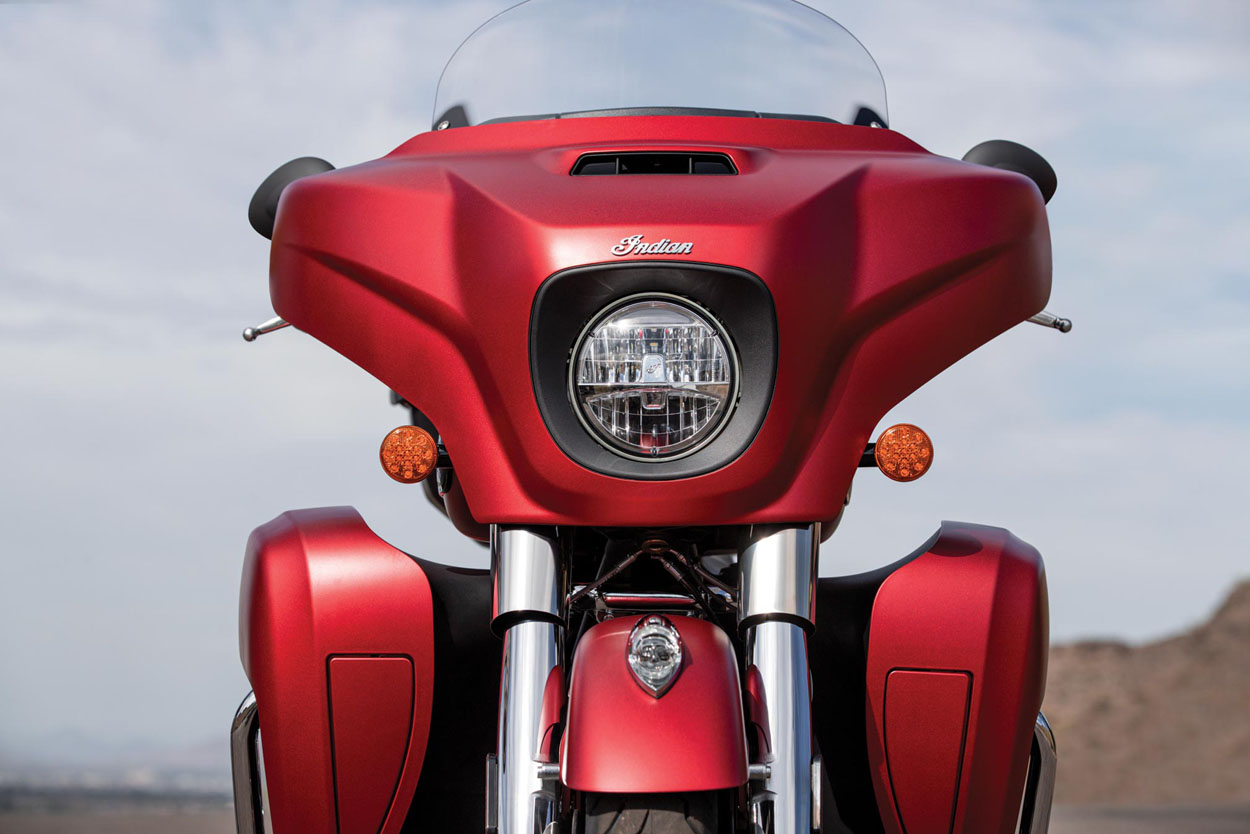

Indian Roadmaster Dark Horse 116 is produced in 2020. Engine is Thunder Stroke 116, 49˚ V-Twin, displacement 1890 cc / 115 cub in Indian Roadmaster Dark Horse 116 weighs 394 kg / 868 lbs. Indian Roadmaster Dark Horse 116 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Roadmaster Dark Horse 116
Years: 2020
Engine: Thunder Stroke 116, 49˚ V-Twin
Capacity: 1890 cc / 115 cub in
Bore x Stroke: 103.2 x 113mm
Compression Ratio: 11.0:1
Cooling: Air / Oil cooled
Exhaust: Split dual exhaust with cross-over
Induction: Electronic fuel injection, closed loop, 54 mm bore
Starting: Electric
Max Toque: 168 Nm / 126 lb-ft @ 2900 rpm
Clutch: Wet, multi-plate
Transmission: 6 Speed
Final Drive: Belt, 152 tooth
Gear Ratio: 1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1
Final Drive Ratio: 2.2:1
Frame: High tensile steel, monoshock
Front Suspension: 46mm Telescopic forks
Front Wheel Travel: 119 mm / 4.7 in
Rear Suspension: Single shock
Rear Wheel Travel: 114 mm / 4.5 in
Front Brakes: 2x 300mm Floating rotor 4 piston calipers
Rear Brakes: Single 300mm floating rotor 2 piston calipers
ABS: Individual front and rear control with ABS
Front Wheel: Cast 19″ x 3.5″ with tire pressure monitoring
Rear Wheel: Cast 16″ x 5.0″ with tire pressure monitoring
Front Tyre: 130/60B19 61H Dunlop American Elite
Rear Tyre: 180/60R16 80H Dunlop Elite 3
Rake: 25°
Trail: 150 mm / 5.9 in
Dimensions: Length 2593.3 mm / 102.1 in Width 1000 mm / 39.4 in Height 1491 mm / 58.7 in
Wheelbase: 1668 mm / 65.7 in
Seat Height: 673 mm / 26.5 in
Ground Clearance: 130 mm / 5.1 in
Dry Weight: 394 kg / 868 lbs
GVWR: 628 kg / 1,385 lbs
Fuel Capacity: 20.8 Litres / 5.5 US gal
