Indian FTR1200 Championship Edition (2022) technical specifications

Indian FTR1200 Championship Edition technical specifications

Indian FTR1200 Championship Edition is produced in 2022. Engine is Four stroke, 60° V Twin , DOHC, 4 valves per cylinder, graded buckets, displacement 1203 cc / 73 cu-in , produces power 120 hp / 89.4 kW @ 6000 rpm and 117.9 Nm / 87 lb-ft @ 6000 rpm. Indian FTR1200 Championship Edition weighs 222 kg / 490 lbs. Indian FTR1200 Championship Edition has 9 photos.

Technical specifications

+ Add to 'Compare list'
Model: FTR1200 Championship Edition
Years: 2022
Production: 400 units
Engine: Four stroke, 60° V Twin , DOHC, 4 valves per cylinder, graded buckets
Capacity: 1203 cc / 73 cu-in
Bore x Stroke: 102 x 73.6 mm
Compression Ratio: 12.5:1
Cooling System: Liquid Cooled
Induction: Electronic Fuel Injection closed loop, 60 mm bore
Emission: EURO5
Exhaust: Akrapovič 2-into-1-into-2
Starting: Electric
Max Power: 120 hp / 89.4 kW @ 6000 rpm
Max Torque: 117.9 Nm / 87 lb-ft @ 6000 rpm
Clutch: Assist & Slip, Multi-Plate
Transmission: 6 Speed
Final Drive: Chain 525
Final Drive Ratio: 2.467:1
Gear Ratios: 1st 12.270 : 1 2nd 8.341 : 1 3rd 6.646 : 1 4th 5.639 : 1 5th 4.985 : 1 6th 4.278 : 1
Primary Drive: Gear drive wet clutch
Lean Angle: 43°
Frame: Steel trellis
Front Suspension: 43 mm Inverted telescopic cartridge fork
Front Wheel Travel: 150 mm / 5.9 in

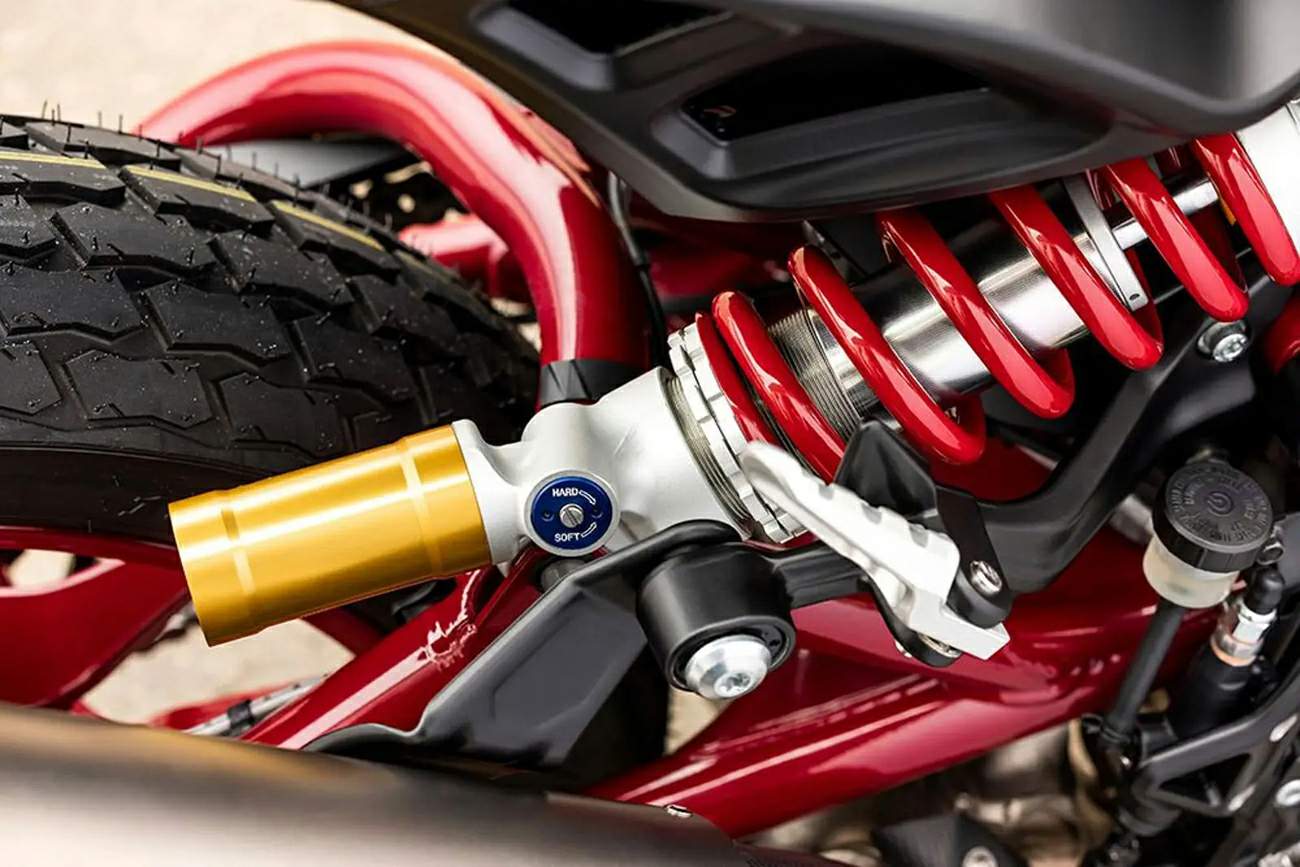

Rear Suspension: Fully adjustable ZF Sachs piggyback-reservoir shock;
Rear Wheel Travel: 150 mm / 5.9 in
Front Brakes: 2x 320mm t5 Rotor Brembo with 4-piston calipers
Rear Brakes: Single 260mm t5 Rotor Brembo with 2-piston calipers
ABS: Standard, option to disable
Front Wheel: Aluminum spoke wheel 19 x 3
Rear Wheel: Aluminum spoke wheel 18 x 4.25
Front Tyre: 120/70R19 Dunlop DT3-R Radial
Rear Tyre: 150/70R18 Dunlop DT3-R Radial
Rake: 26.3°
Trail: 130 mm / 5.1 in
Dimensions: Length 2287 mm / 90 in Width 867 mm / 34.1 in Height 1336 mm / 52.6 in
Wheelbase: 1524 mm / 60 in
Seat Height: 815 mm / 32.1 in
Ground Clearance: 183 mm / 7.2 in
Dry Weight: 222 kg / 490 lbs
Wet Weight: 236 kg / 521 lbs
Fuel Capacity: 12.9 Litres / 3.4 US gal
