2020 Indian FTR1200 Carbon technical specifications

Indian FTR1200 Carbon technical specifications

Technical specifications

Model: FTR1200 Carbon
Years: 2020
Engine: Four stroke, 60° V Twin , DOHC, 4 valves percylinder, graded buckets
Capacity: 1203 cc / 73 cu-in
Bore x Stroke: 102 x 73.6 mm
Compression Ratio: 12.5:1
Cooling System: Liquid Cooled
Induction: Electronic Fuel Injection Closed Loop, 60 mm bore

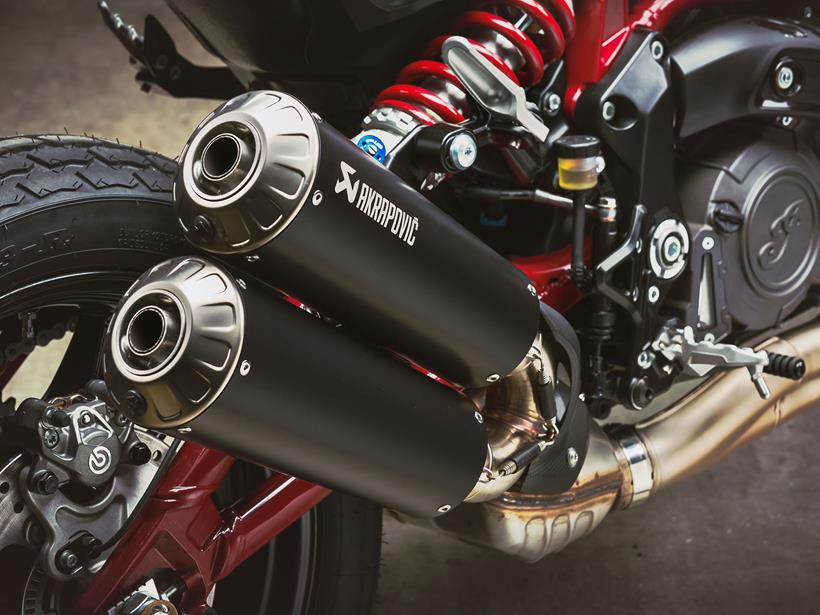

Exhaust: Akrapovič 2-into-1
Starting: Electric
Max Power: 123 hp /  91.7 kW @ 6000 rpm
Max Torque: 120 Nm / 87 lb-ft @ 5900 rpm
Clutch: Wet multi-plate w/ assist-and-slip
Transmission : 6 Speed
Final Drive: 525 Chain
Final Drive Ratio: 2.882:1
Gear Ratios: 1st 13.361:1   2nd 9.082:1   3rd7.237:1   4th 6.141:1   5th 5.428:1 6th4.658:1
Lean Angle: 43°
Frame: Steel trellis
Front Suspension: Fully adjustable inverted 43mm telescopic cartridgefork
Front Wheel Travel: 150 mm / 5.9 in
Rear Suspension: Fully adjustable piggyback IFP
Rear Wheel Travel: 150 mm / 5.9 in
Front Brakes: 2x 320mm t5 Rotor Brembo with 4-Piston Calipers
Rear Brakes: Single 260mm t5 Rotor Brembo with 2-Piston Calipers
ABS: Standard, option to disable
Front Wheel: Cast 19 in x 3 in
Rear Wheel: Cast 18 in x 4.25 in
Front Tyre: 120/70R19 60V
Rear Tyre: 150/80R18 70V
Rake: 26.3°
Trail: 130 mm / 5.1 in
Dimensions: Length 2287 mm / 90.0 inWidth    862 mm / 33.9 inHeight 1166 mm / 45.9 in
Wheelbase: 1524 mm / 60 in
Seat Height: 815 mm - 853 mm / 32 in - 33.5 in
Ground Clearance: 183 mm / 7.2 in
Dry Weight: 228 kg / 502.6 lbs
Wet Weight: 235 kg / 518 lbs
Fuel Capacity: 12.9 Litres / 3.4 USgal
 Standard Equipment: Cruise control, stability,traction & wheelie mitigation control, and 3 ride modes: Sport,Standard and Rain
