Indian Chieftain (2017-18) technical specifications

Indian Chieftain technical specifications

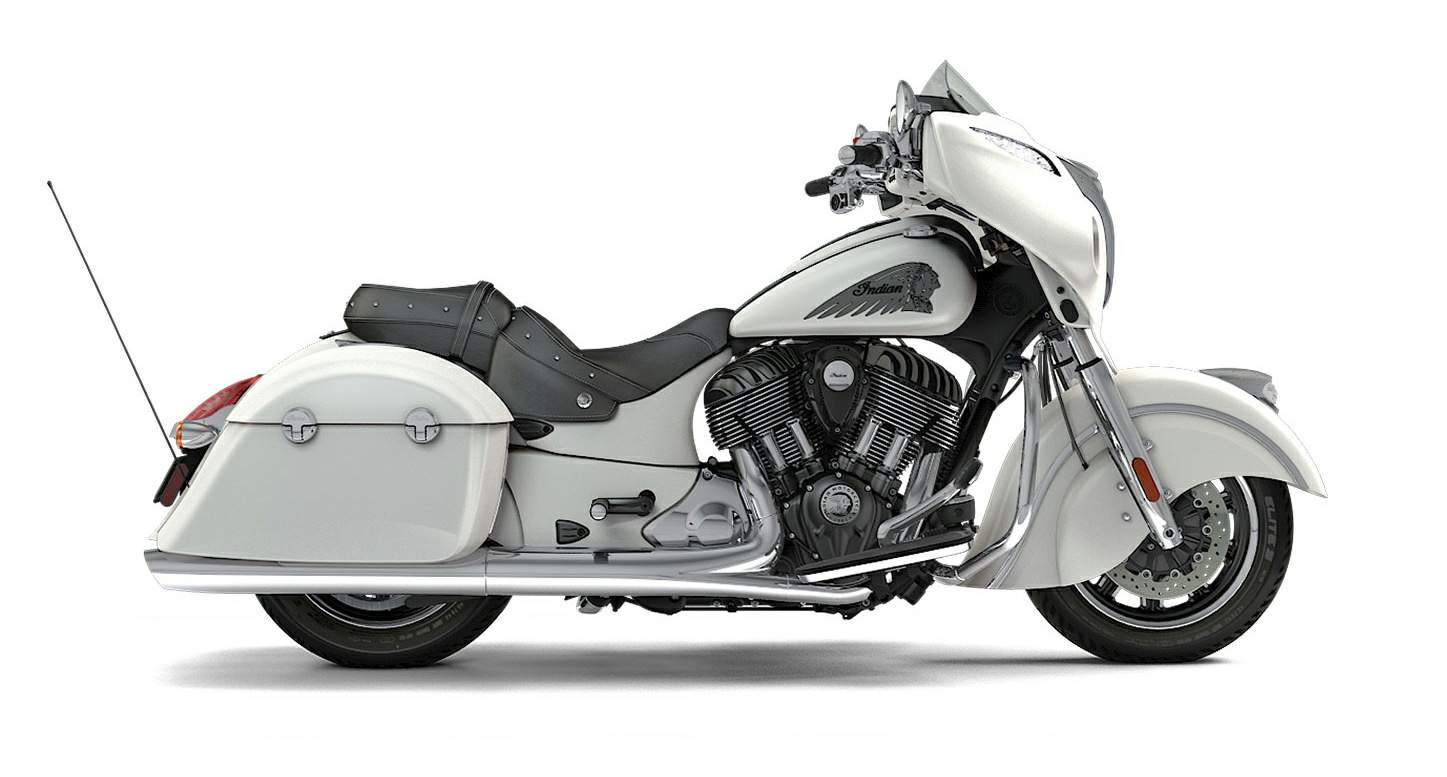

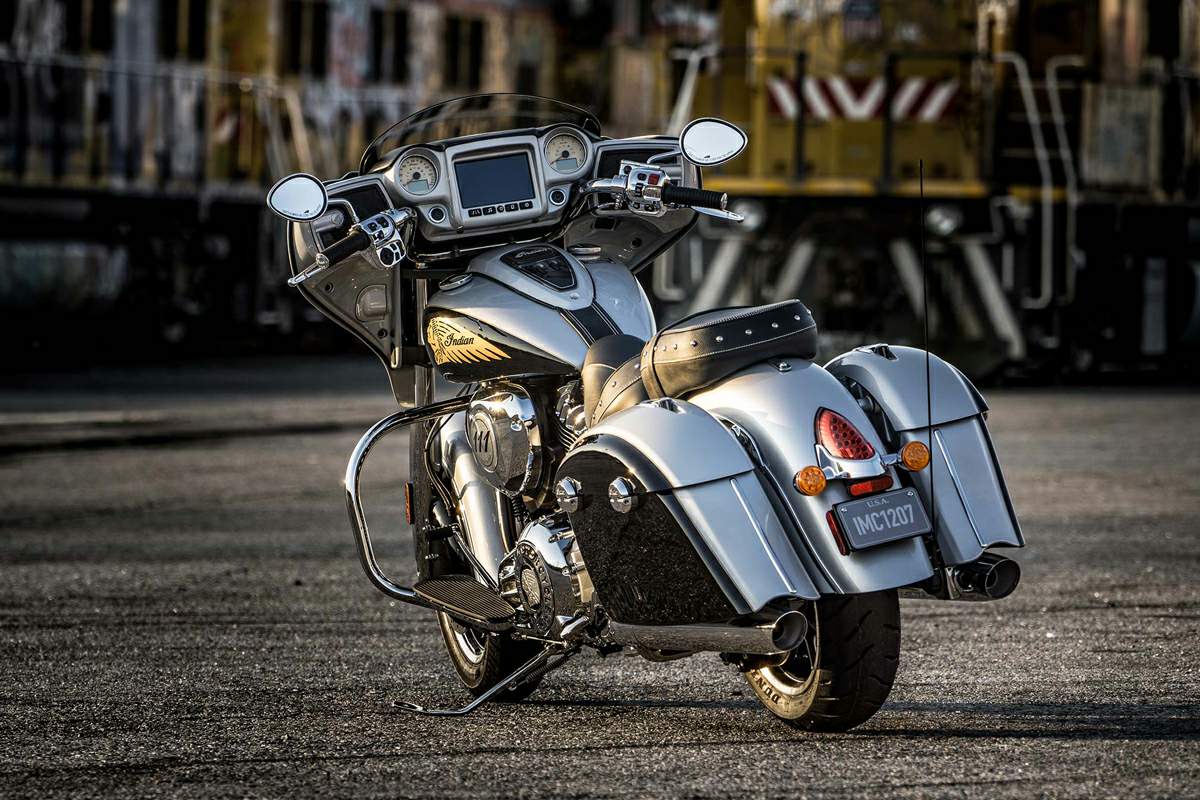

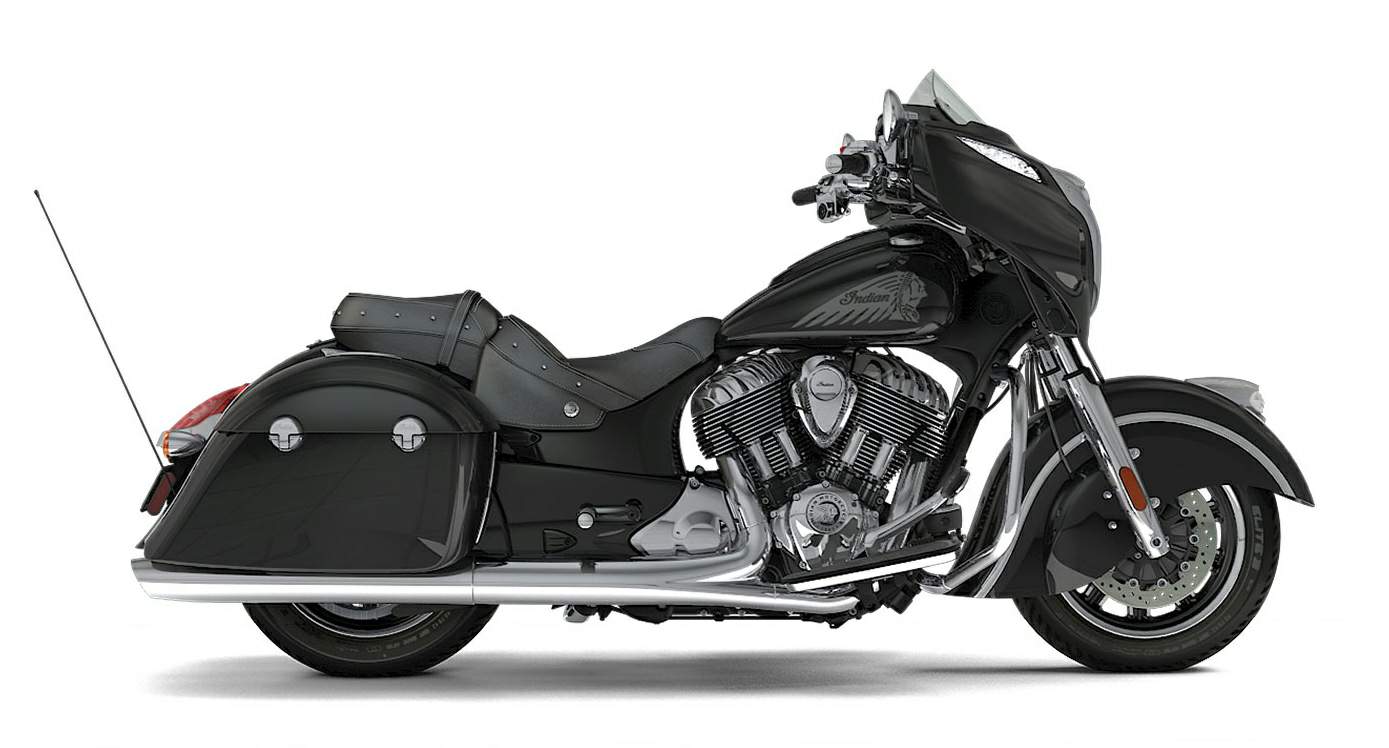

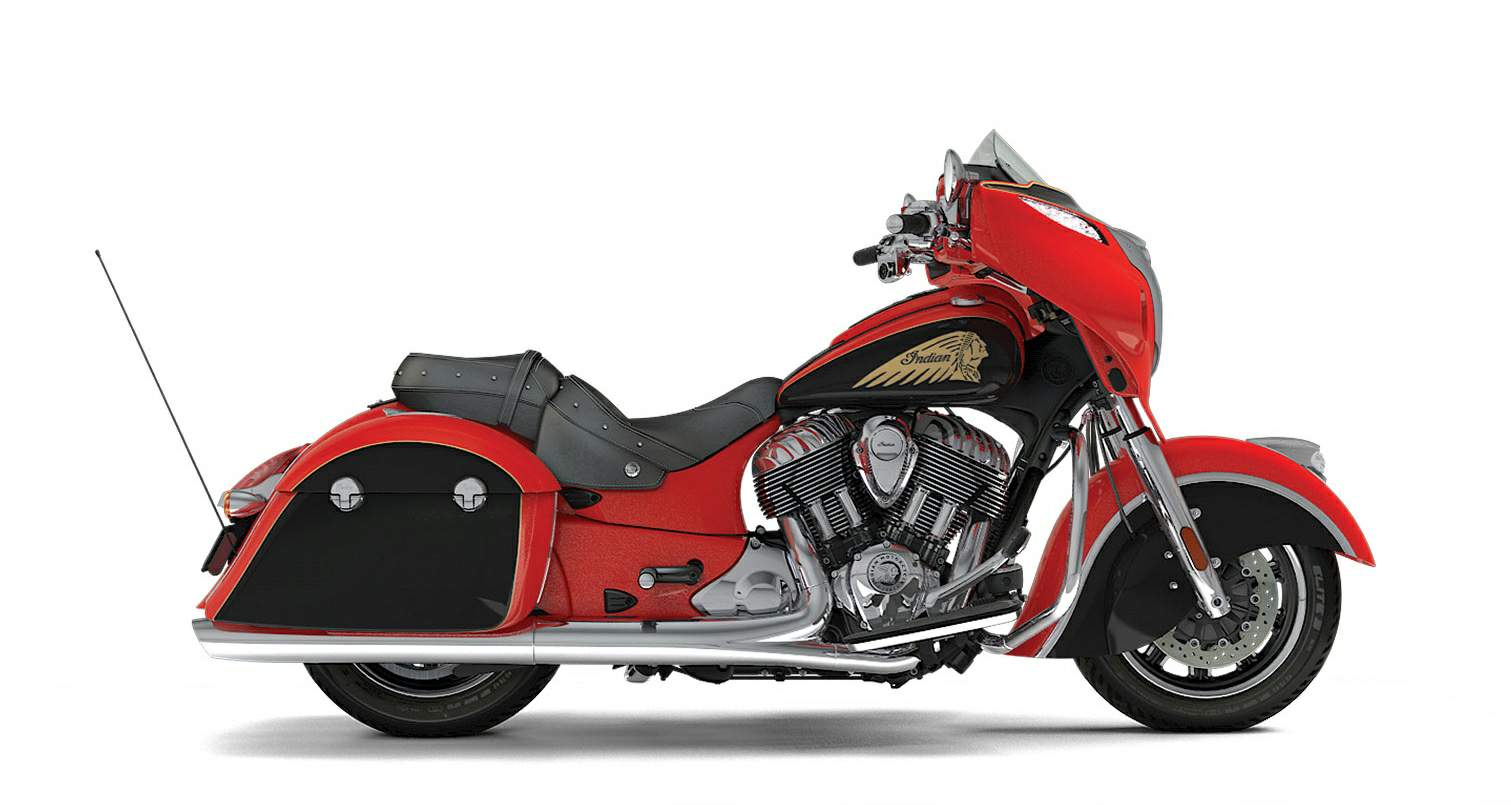

Indian Chieftain is produced in 2017-18. Engine is Four stroke, V-twin, Thunder Stroke™ 111, displacement 1811.cc / 110.5 cu-in Indian Chieftain weighs 376 kg / 828 lbs. Indian Chieftain has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Chieftain
Years: 2017-18
Engine: Four stroke, V-twin, Thunder Stroke™ 111
Capacity: 1811.cc / 110.5 cu-in
Bore x Stroke: 101 x 113 mm
Compression Ratio: 9.5:1
Induction: Electronic Fuel Injection System Closed loop fuel injection / 54mm bore
Starting: Electric
Max Toque: 139 Nm / 14.2 kgf-m @ 2800 rpm
Clutch: Wet, Multi-Plate
Transmission: 6 Speed
Final Drive: Belt
Gear Ratio: 1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1
Final Drive Ratio: 2.2 : 1
Frame: Cast Aluminum Frame with Integrated Air-Box
Front Suspension: Telescopic forks,
Front Wheel Travel: 119 mm / 4.7 in
Rear Suspension: Single shock,
Rear Wheel Travel: 104 mm / 3.7 in
Front Brakes: 2x Floating Rotor 4 piston calipers
Rear Brakes: Single Floating Rotor 2 piston calipers
Front Wheel: Cast 19 in x 3.5 in
Rear Wheel: Cast 16 in x 5 in
Front Tyre: Dunlop® American Elite 130/60B19 61H
Rear Tyre: Dunlop® Elite 3 Multi-Compound 180/60R16 80H
Rake: 29°
Trail: 6.1 in
Dimensions: Length 2571 mm / 101.2 in Width 1022 mm / 40.2 in Height 1529 mm / 60.2 in
Wheelbase: 1668 mm / 65.7 in
Seat Height: 660 mm / 26.0 in
Ground Clearance: 140 mm / 5.5 in
Dry Weight: 376 kg / 828 lbs
Wet Weight: 385 kg / 848 lbs
GVWR: 630 kg / 1385 lbs
Fuel Capacity: 20.8 Litres / 5.5 US gal
