2020 Indian Chief Vintage technical specifications

Indian Chief Vintage technical specifications

Technical specifications

Model: Chief Vintage
Years: 2020

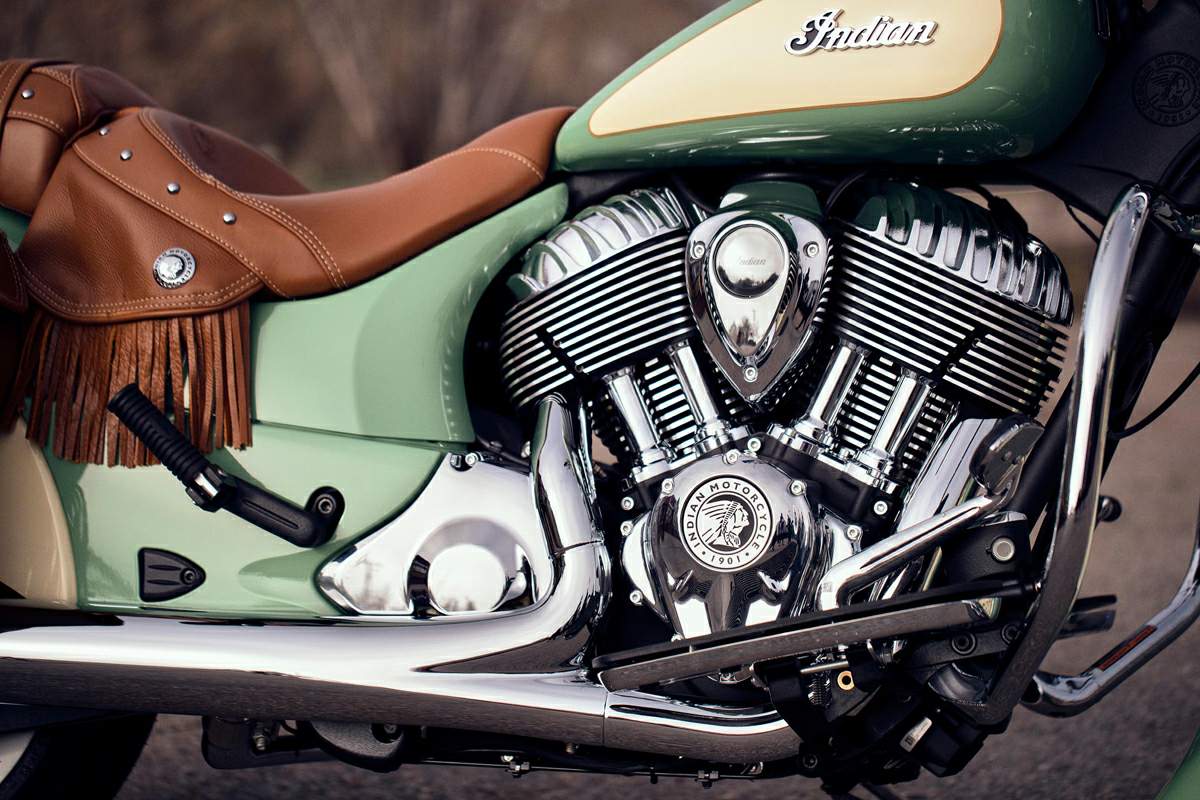

Engine: Thunder Stroke™111
Capacity: 1811.cc / 111cu-in
Bore x Stroke: 101 x 113 mm
Compression Ratio: 9.5:1
Exhaust: Split dual exhaust withcross-over
Induction: Electronic fuel injection systemclosed loop fuel injection / 54mm bore
Starting: Electric
Max Toque: 119.2lb-ft / 161.6 Nm @ 3000 rpm
Clutch: Wet, multi-plate, assist
Transmission : 6 Speed
Final Drive: Belt
Gear Ratio: 1st 9.403 : 1  2nd 6.411 :1  3rd 4.763 : 1  4th 3.796 : 1  5th 3.243 : 1 6th2.789 : 1
Final Drive Ratio: 2.2:1
Frame: Cast aluminum frame with integratedair-box
Front Suspension: 46mm Telescopic forks
Front Wheel Travel: 119 mm / 4.7 in
Rear Suspension: Single shock with airadjust
Rear Wheel Travel: 114 mm / 4.5 in
Front Brakes: 2x 300 mm Floating rotor 4 pistoncalipers
Rear Brakes: Single 300 mm Floating rotor 2piston calipers
Front Wheel: 17 x 3.5 in
Rear Wheel: 16 x 5.0 in
Front Tyre: 130/80B17 65H
Rear Tyre: 180/60R16 80H
Rake: 25°
Trail: 133 mm / 5.2 in
Dimensions: Length 2583 mm / 101.7 inWidth  1000 mm / 39.4 inHeight 1176 mm / 46.3 in
Wheelbase: 1701 mm  / 67 in
Seat Height: 660 mm / 26.0 in
Ground Clearance: 142 mm / 5.6 in
Dry Weight: 342 kg / 754 lbs
Wet Weight: 357 kg / 835 lbs
GVWR: 628 kg / 786 lbs
Fuel Capacity : 20.8 Litres / 5.5 US gal
