Indian Chief Vintage (2016-17) technical specifications

Indian Chief Vintage technical specifications

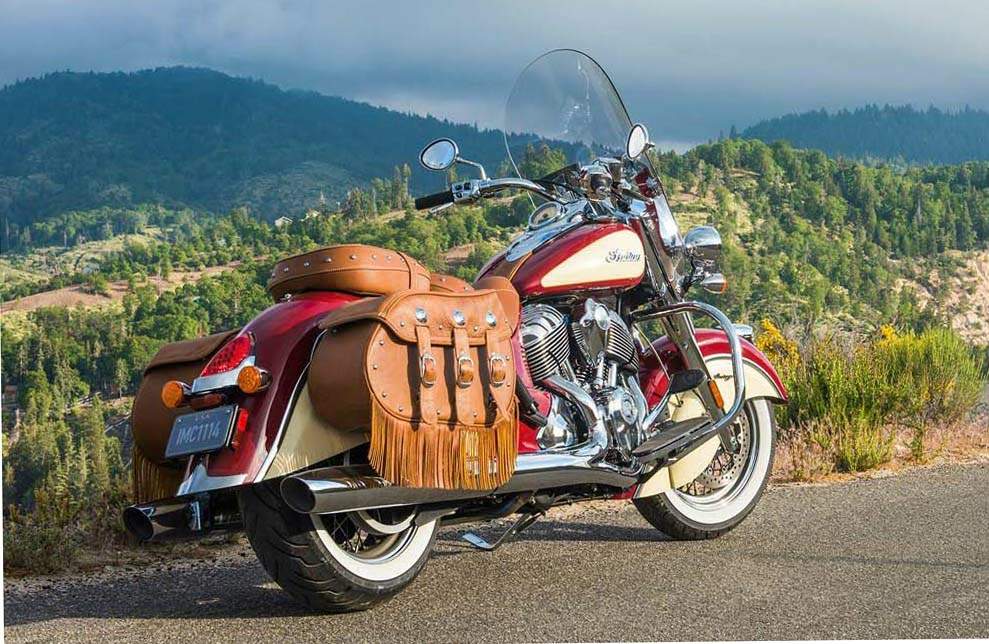

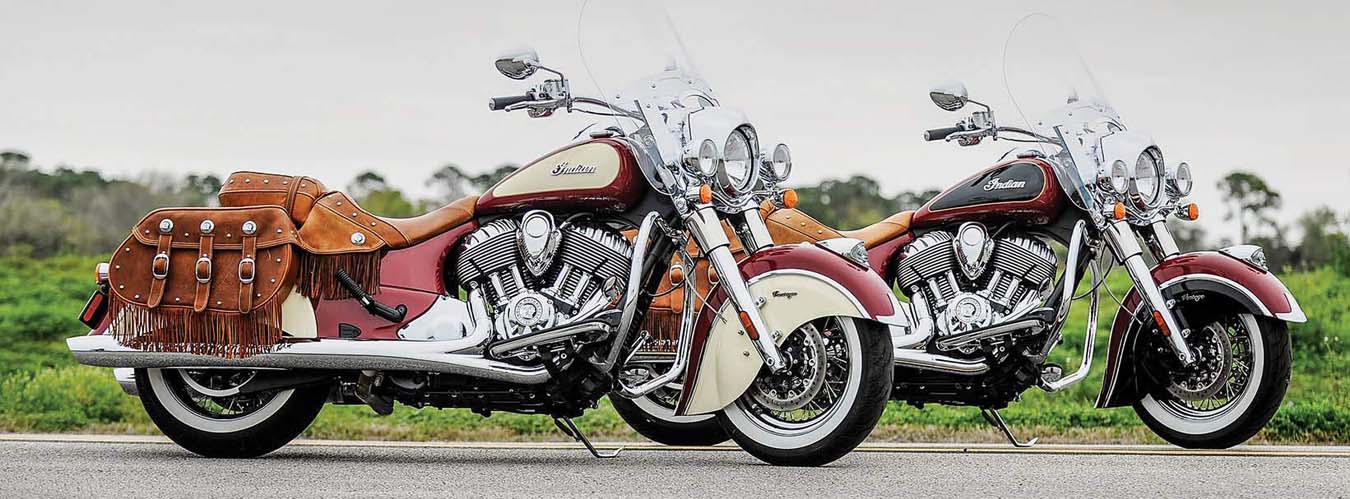

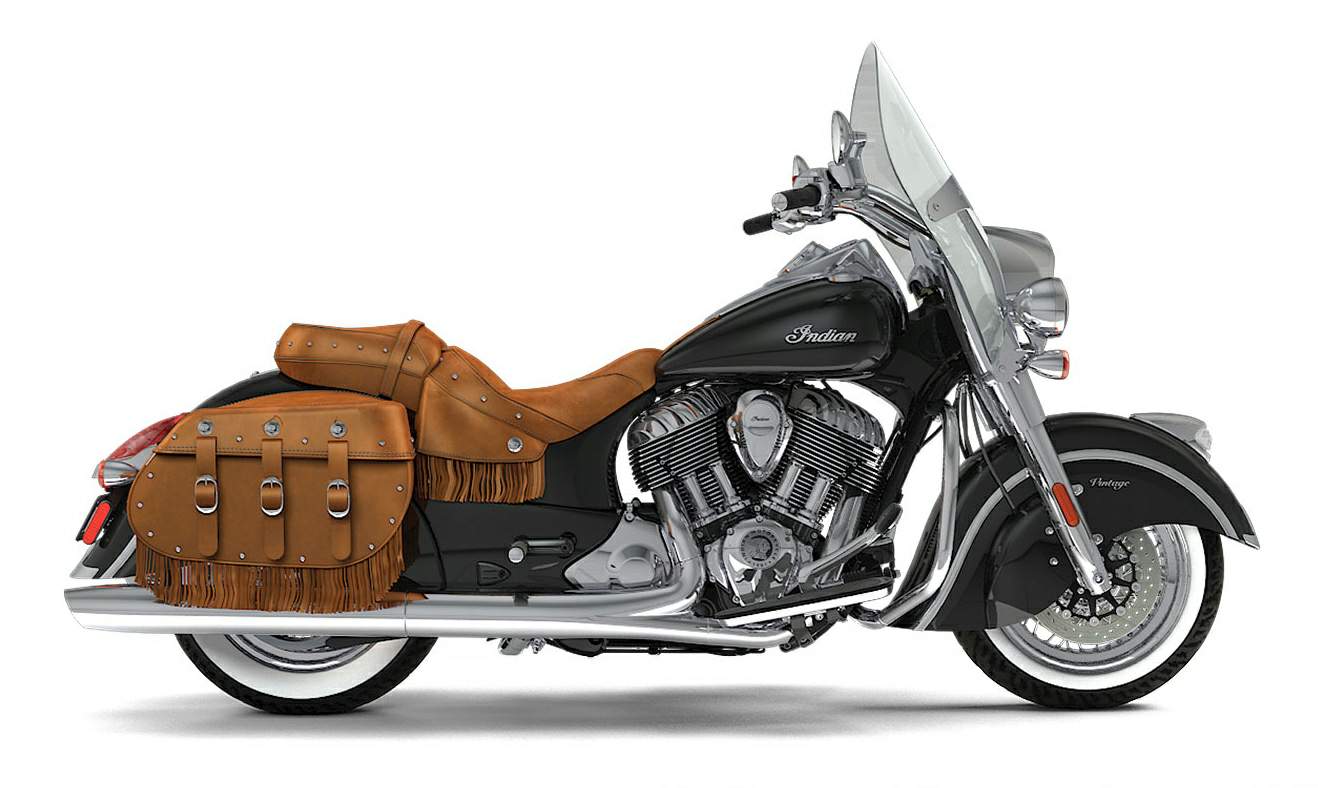

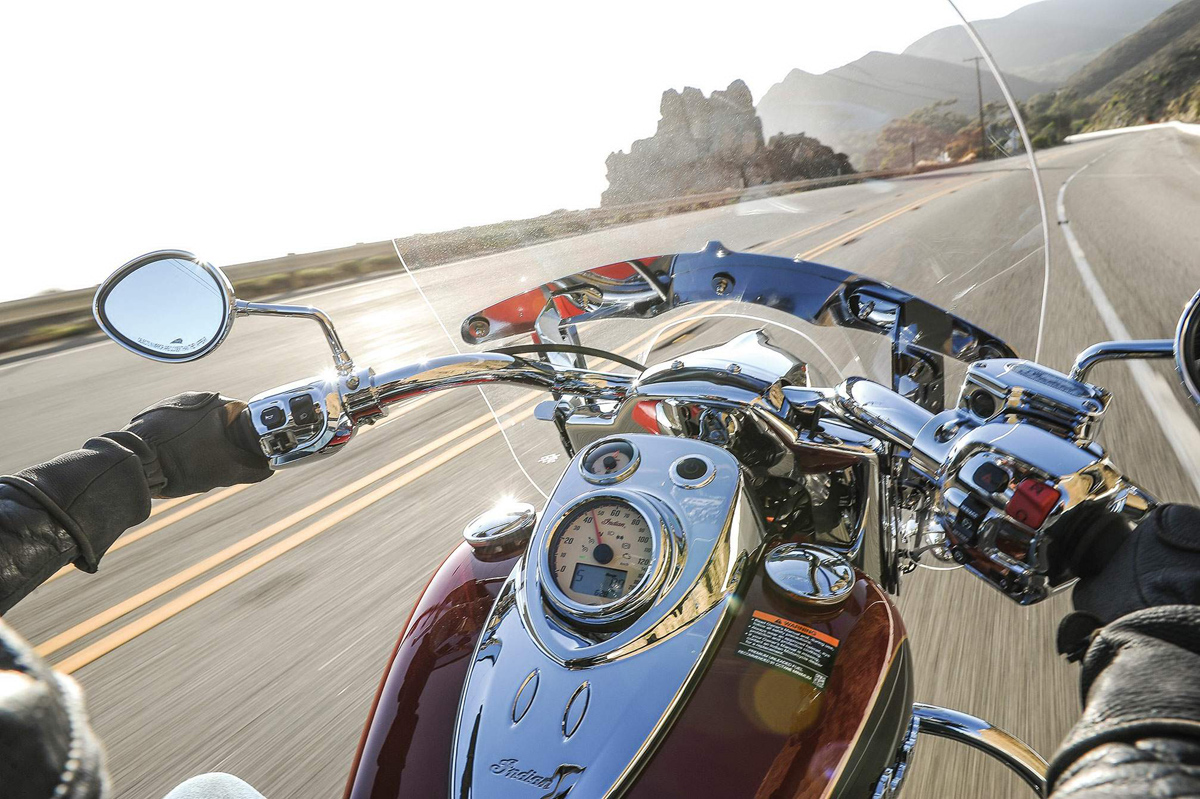

Indian Chief Vintage is produced in 2016-17. Engine is Thunder Stroke™ 111, displacement 1811.cc / 111 cu-in Indian Chief Vintage weighs 365 kg / 805 lbs. Indian Chief Vintage has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Chief Vintage
Years: 2016-17
Engine: Thunder Stroke™ 111
Capacity: 1811.cc / 111 cu-in
Bore x Stroke: 101 x 113 mm
Compression Ratio: 9.5:1
Induction: Electronic fuel injection system closed loop fuel injection / 54mm bore
Battery: 12 volts / 18 amp/hour, 310 CCA
Starting: Electric
Max Toque: 119.2 ft-lbs / 161.6 Nm @ 3000 rpm
Clutch: Wet, Multi-Plate
Transmission: 6 Speed
Final Drive: Belt
Gear Ratio: 1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1
Final Drive Ratio: 2.2:1
Frame: Cast Aluminum Frame with Integrated Air-Box
Front Suspension: Telescopic forks
Front Wheel Travel: 119 mm / 4.7 in
Rear Suspension: Single shock
Rear Wheel Travel: 104 mm / 3.7 in
Front Brakes: 2x 300 mm Floating rotor 4 piston calipers
Rear Brakes: Single 300 mm Floating rotor 2 piston calipers
Front Tyre: 130/90B16 67H
Rear Tyre: 180/65B16 81H
Rake: 29°
Trail: 155 mm / 6.1 in
Dimensions: Length 2634 mm / 103.7 in Width 1025 mm / 40.4 in Height 1490 mm / 58.7 in
Wheelbase: 1730 mm / 68.1 in
Seat Height: 692 mm / 29.0 in
Ground Clearance: 140 mm / 5.5 in
Dry Weight: 365 kg / 805 lbs
Wet Weight: 379 kg / 835 lbs
GVWR: 573 kg / 1260 lbs
Fuel Capacity: 20.8 Litres / 5.5 Gal
