Indian Chief Classic (2017) technical specifications

Indian Chief Classic technical specifications

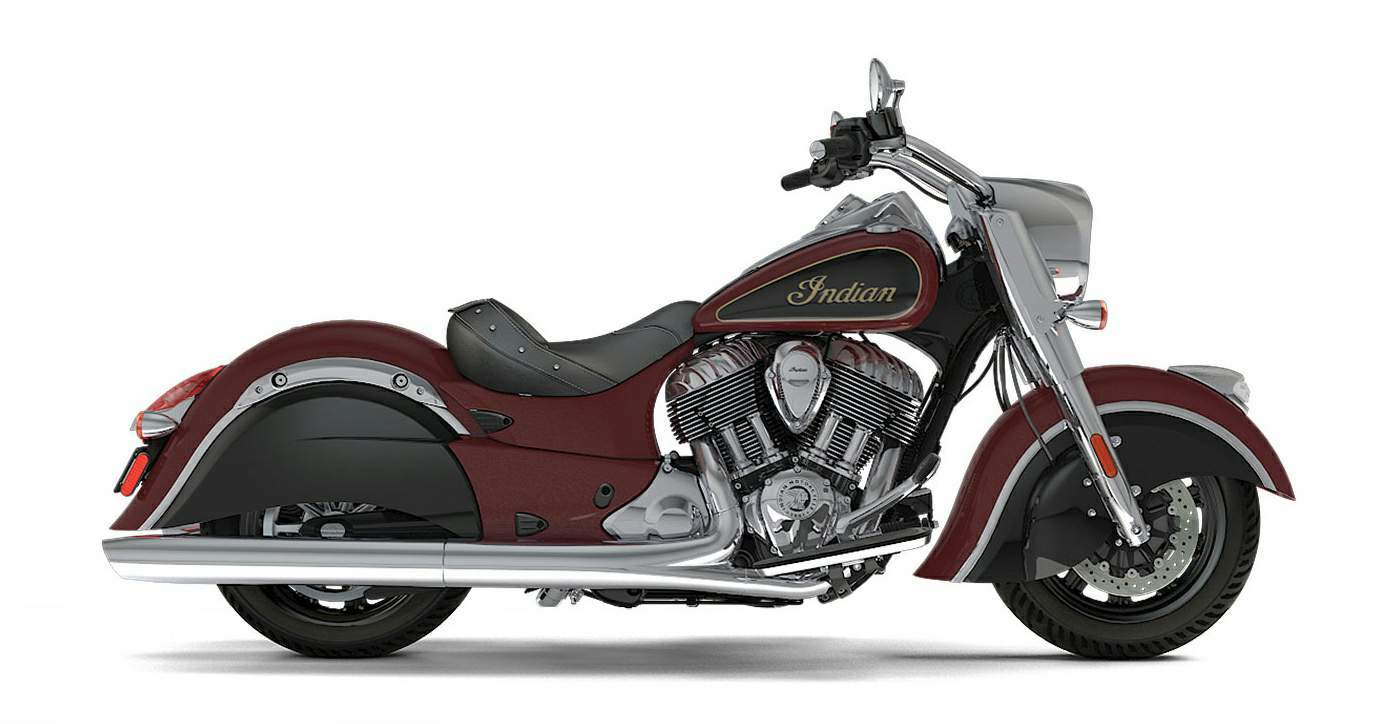

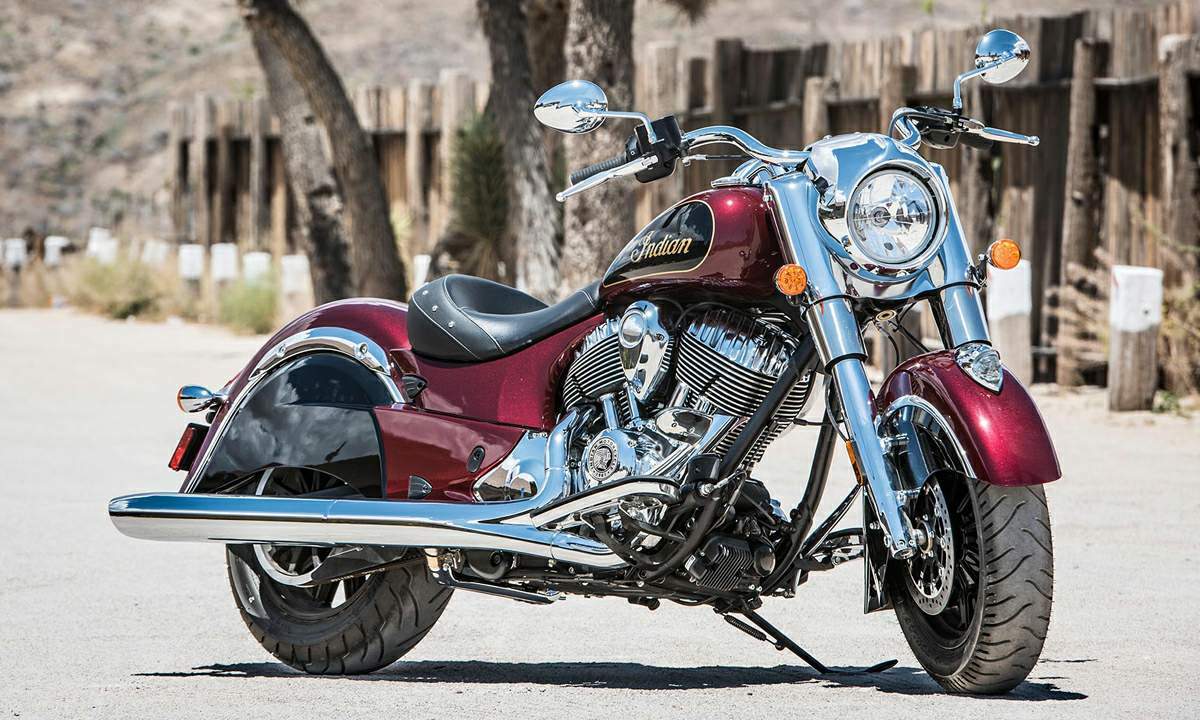

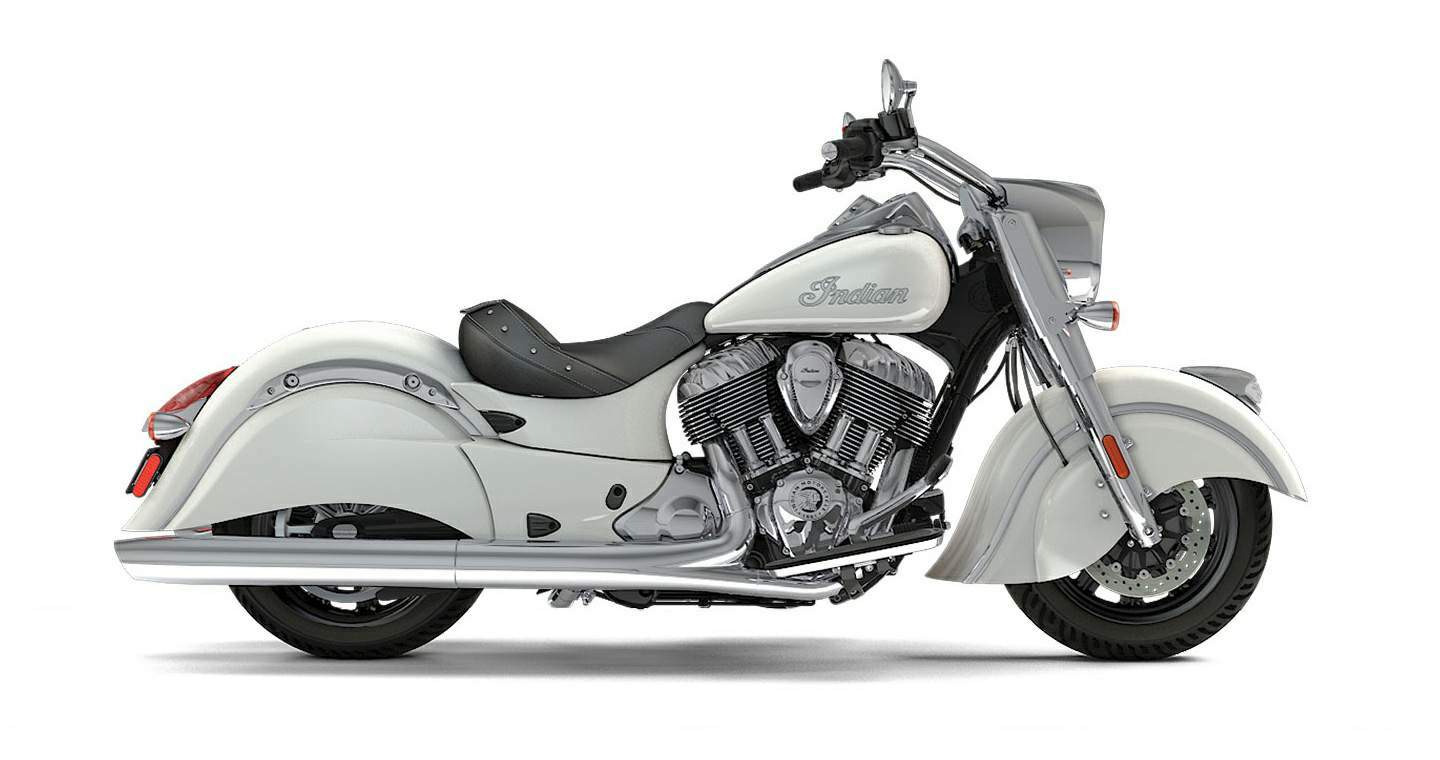

Indian Chief Classic is produced in 2017. Engine is Thunder Stroke™ 111, displacement 1811.cc / 105 cu-in Indian Chief Classic weighs 354.0 kg / 780.4 lbs. Indian Chief Classic has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: Chief Classic
Years: 2017
Engine: Thunder Stroke™ 111
Capacity: 1811.cc / 105 cu-in
Bore x Stroke: 101 x 113 mm
Compression Ratio: 9.5:1
Induction: Electronic Fuel Injection System Closed loop fuel injection / 54mm bore
Starting: Electric
Max Toque: 139 Nm / 14.2 kgf-m @ 2800 rpm
Clutch: Wet, Multi-Plate
Transmission: 6 Speed
Final Drive: Belt
Gear Ratio: 1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1
Final Drive Ratio: 2.2 : 1
Frame: Cast Aluminum Frame with Integrated Air-Box
Front Suspension: Telescopic forks,
Front Wheel Travel: 119 mm / 4.7 in
Rear Suspension: Single shock,
Rear Wheel Travel: 94 mm / 3.7 in
Front Brakes: 2x 300 mm Floating Rotor 4 piston calipers
Rear Brakes: Single 300 mm Floating Rotor 2 piston calipers
Front Tyre: 130/90B16 67H
Rear Tyre: 180/65B16 81H
Rake: 29°
Trail: 155 mm / 6.1 in
Ground Clearance: 139.7 mm / 5.5 in
Dimensions: Length 2553 mm/ 100.5 in Width 1029 mm / 40.5 in Height 1283 mm / 50.5 in
Wheelbase: 1646 mm mm / 68.1 in
Seat Height: 692 mm / 29.0 in
Dry Weight: 354.0 kg / 780.4 lbs
Wet Weight: 370 kg / 815.7 lbs
Fuel Capacity: 20.8 Litres / 5.5 Gal
