Indian Chief Classic (2009-10) technical specifications

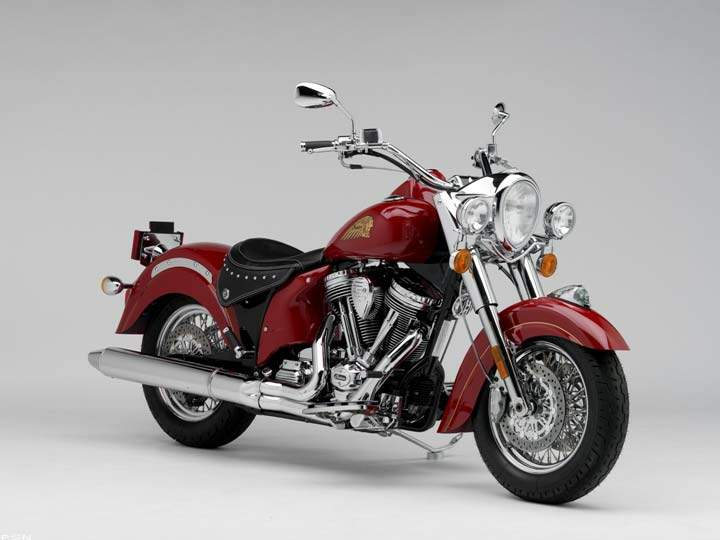

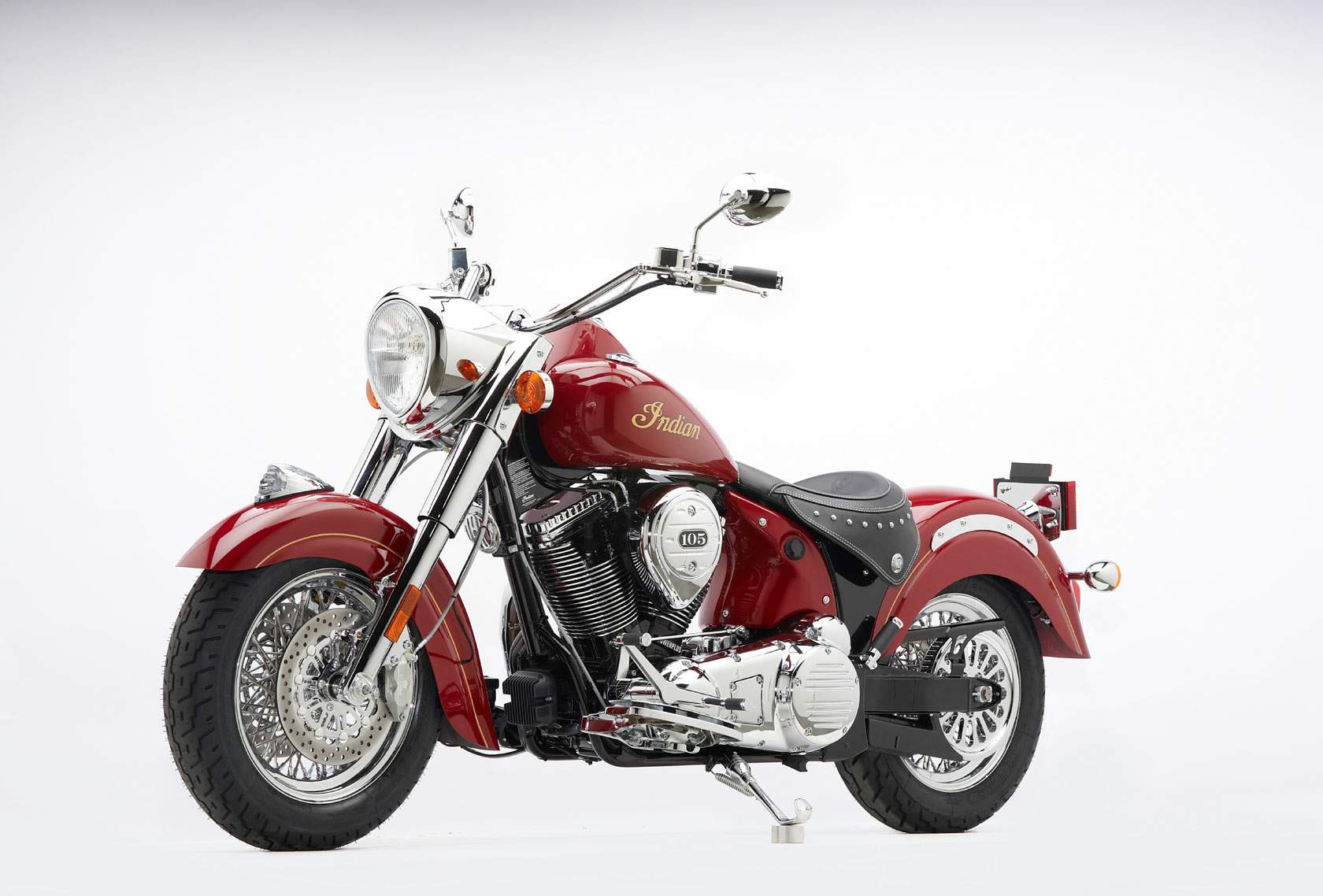

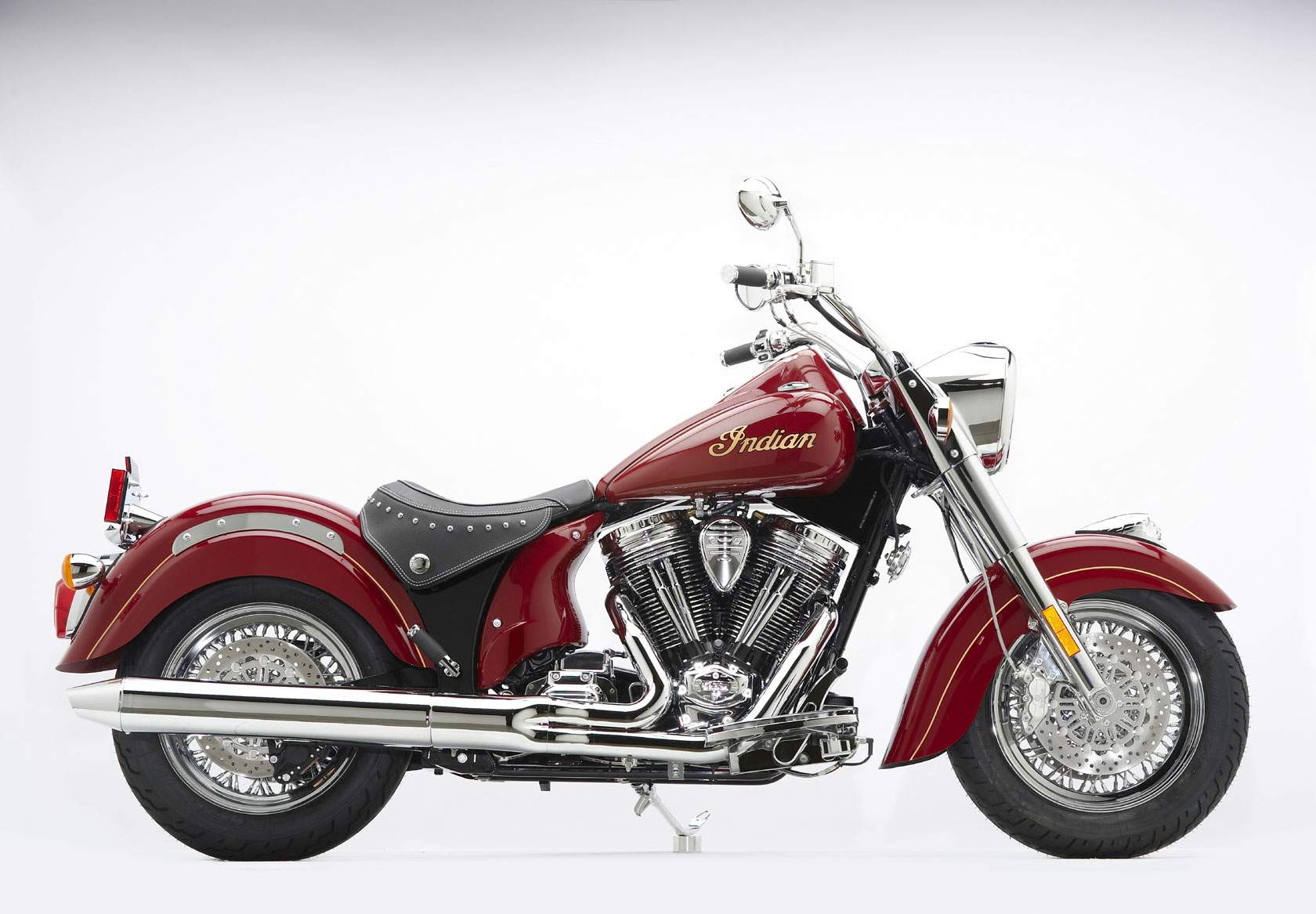

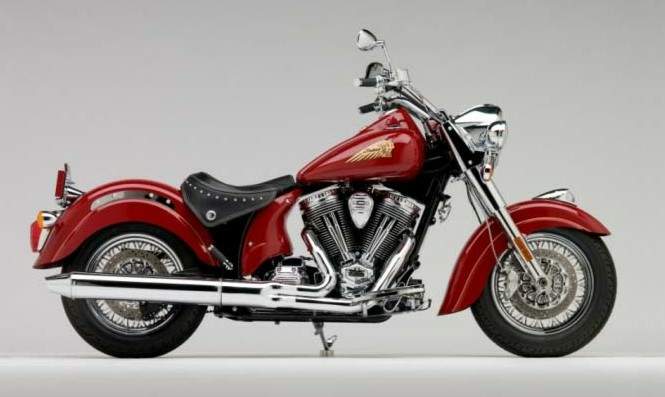

Indian Chief Classic is produced in 2009-10. Engine is Four stroke, V-twin, 2 valve per cylinder., displacement 1720 cc / 105 cu-in Indian Chief Classic weighs 330 kg / 728 lbs. Indian Chief Classic has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Chief Classic
Years:	2009-10
Engine:	Four stroke, V-twin, 2 valve per cylinder.
Capacity:	1720 cc / 105 cu-in
Bore x Stroke:	3.966 x 4.25 in.
Cooling System:	Air cooled
Compression Ratio:	9.0:1
Induction:	Closed loop sequential port fuel injection
Ignition:	Digital CDI
Starting:	-Electric
Max Toque:	100 lb-ft / 135.5 Nm
Transmission:	5 Speed
Final Drive:	Belt
Gear Ratio:	1st 10.441:1 2nd 7.090:1 3rd 5.172:1 4th 3.984:1 5th 3.193:1 6th 2.771:1
Frame:	High tensile steel, monoshock
Front Suspension:	41 mm diameter
Front Wheel Travel:	108 mm / 4.2 in
Rear Suspension:	Single shock
Rear Wheel Travel:	73 mm / 2.8 in
Front Brakes:	Single 292mm disc 2 piston calipers
Rear Brakes:	Single 292mm disc 1 piston calipers
Front Tyre:	130/90-16
Rear Tyre:	150/90-16
Trail:	150 mm / 5.9 in
Dimensions:	Length 2552 mm / 100.5 in Width 1028 mm / 40.5 in Height 1282 mm / 50.5 in
Wheelbase:	1737 mm / 68.3 in
Seat Height:	680.8 mm / 27.2 in
Dry Weight:	330 kg / 728 lbs
Fuel Capacity:	20.8 Litres / 5.5 Gal
