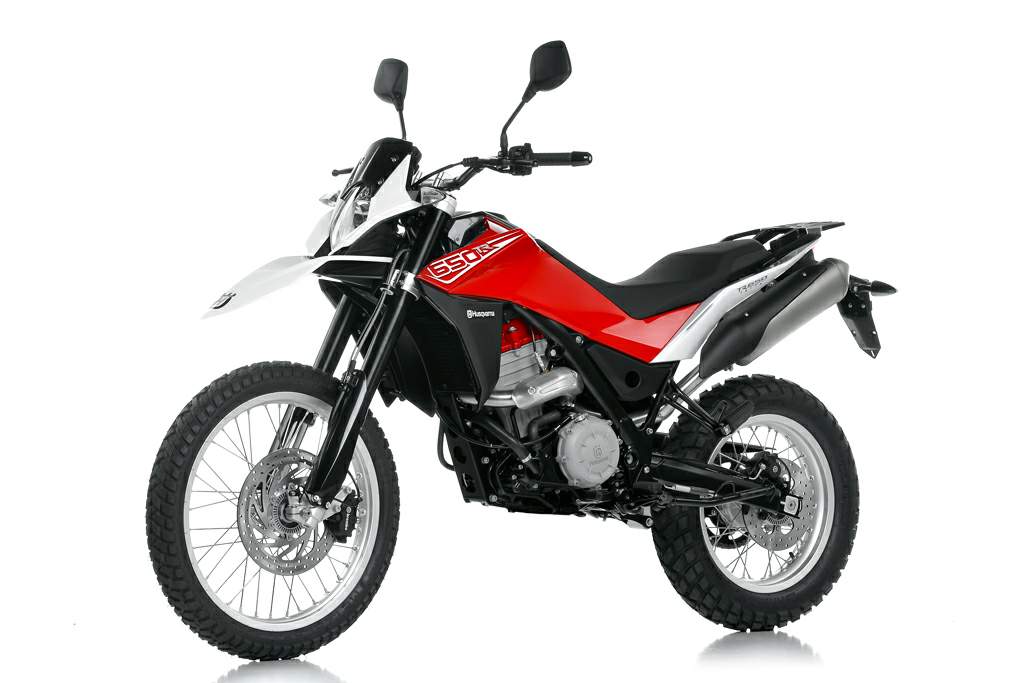

Husqvarna TR 650 Terra (2013-14) technical specifications

Husqvarna TR 650 Terra is produced in 2013-14. Engine is Four stroke, single cylinder, DOHC, 4 valves, displacement 652 cc / 39.79 cu-in , produces power 58 hp / 42.1 kW @ 7250 rpm and 60 Nm / 44 ft-lb @ 5750 rpm. Husqvarna TR 650 Terra wet weight is 186 kg / 410 lbs. Husqvarna TR 650 Terra has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	TR 650 Terra
Years:	2013-14
Engine:	Four stroke, single cylinder, DOHC, 4 valves
Capacity:	652 cc / 39.79 cu-in
Bore x Stroke:	100 x 83 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.3:
Exhaust:	Closed-loop 3-way catalytic converter
Induction:	Marelli EFI
Ignition:	Electronic, inductive discharge, w/digital control
Starting:	Electric
Max Power:	58 hp / 42.1 kW @ 7250 rpm
Max Torque:	60 Nm / 44 ft-lb @ 5750 rpm
Clutch:	Wet, multi-plate
Transmission:	5 Speed
Final Drive:	Chain
Front Suspension:	Sachs 46mm, inverted forks
Front Wheel Travel:	190 mm / 7.5 in
Rear Suspension:	Sachs, single shock, link-mount
Rear Wheel Travel:	190 mm / 7.5 in
Front Brakes:	Brembo hydraulic single 300mm disc
Rear Brakes:	Brembo hydraulic single 240mm disc
Front Tyre:	110/80 -19
Rear Tyre:	140/80 -17
Rake:	26°
Trail:	100 mm / 3.9 in
Wheelbase:	1501 mm / 59.1 in
Seat Height:	853.5 mm / 33.8 in
Wet Weight:	186 kg / 410 lbs
Fuel Capacity:	12.3 Litres / 3.5 US gal
